Cylinder Head Removal - Right

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the cylinder head bolts.
  2. Remove the cylinder head.

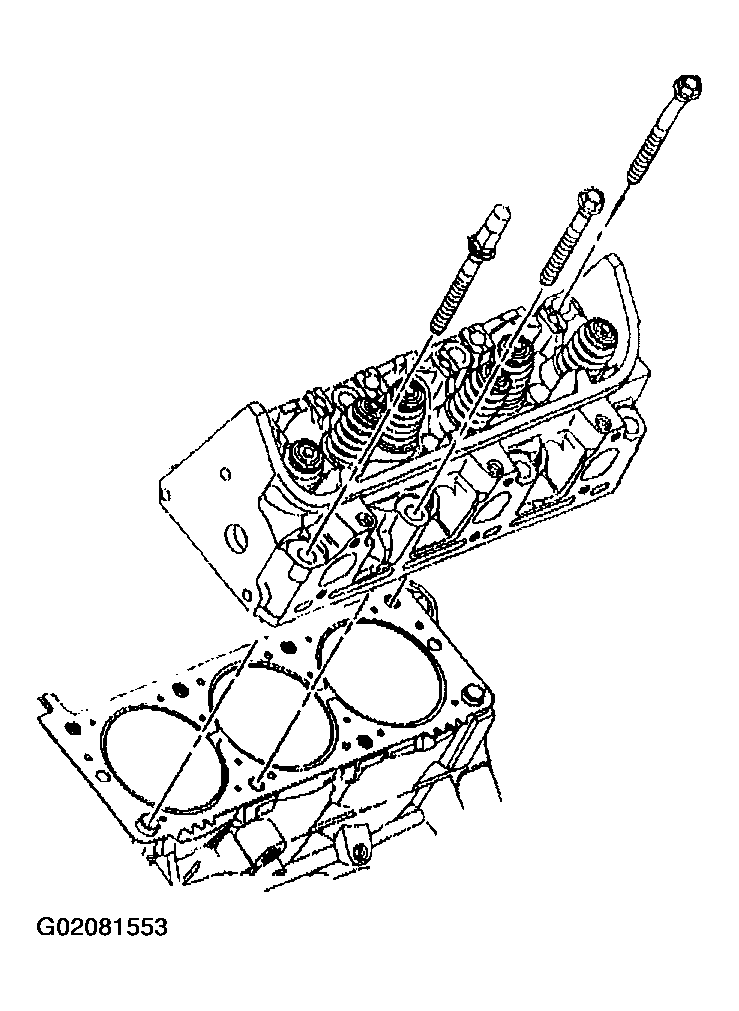

    Fig 1: Removing Right Cylinder Head
    G02081553Courtesy of GENERAL MOTORS CORP.
  3. Remove the cylinder head gasket.
  4. Remove the dowel pins - cylinder head locator, if required.

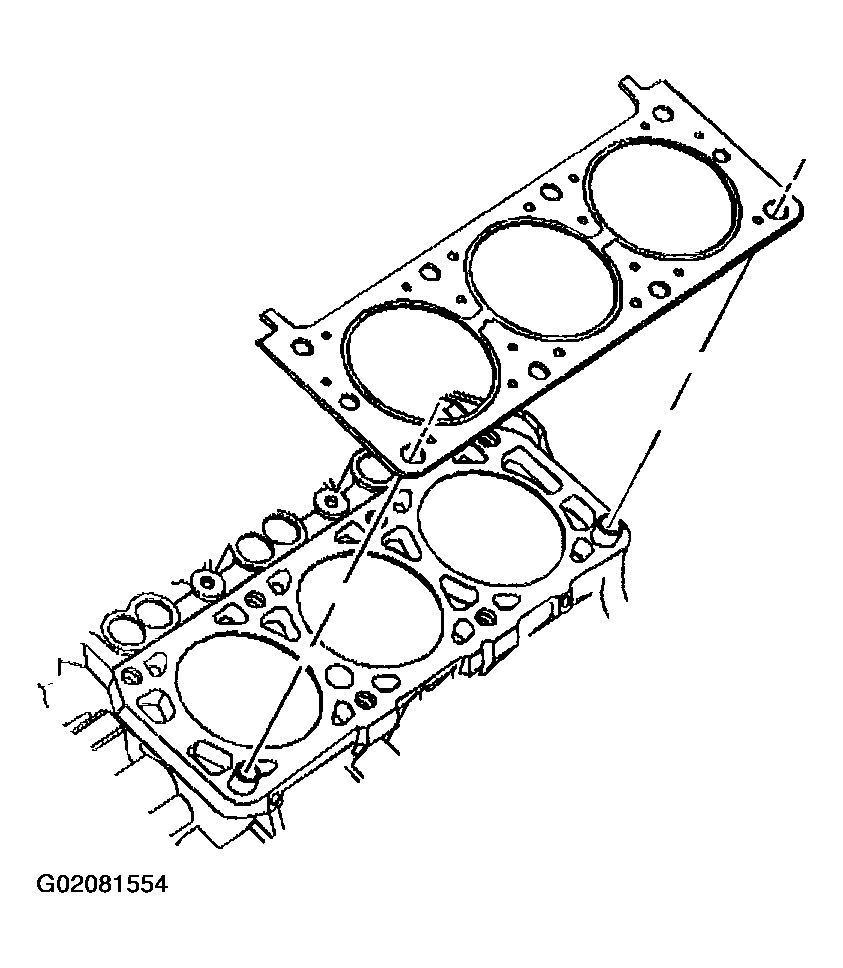

    Fig 2: Removing Cylinder Head Gasket
    G02081554Courtesy of GENERAL MOTORS CORP.
