Disassembled Views

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

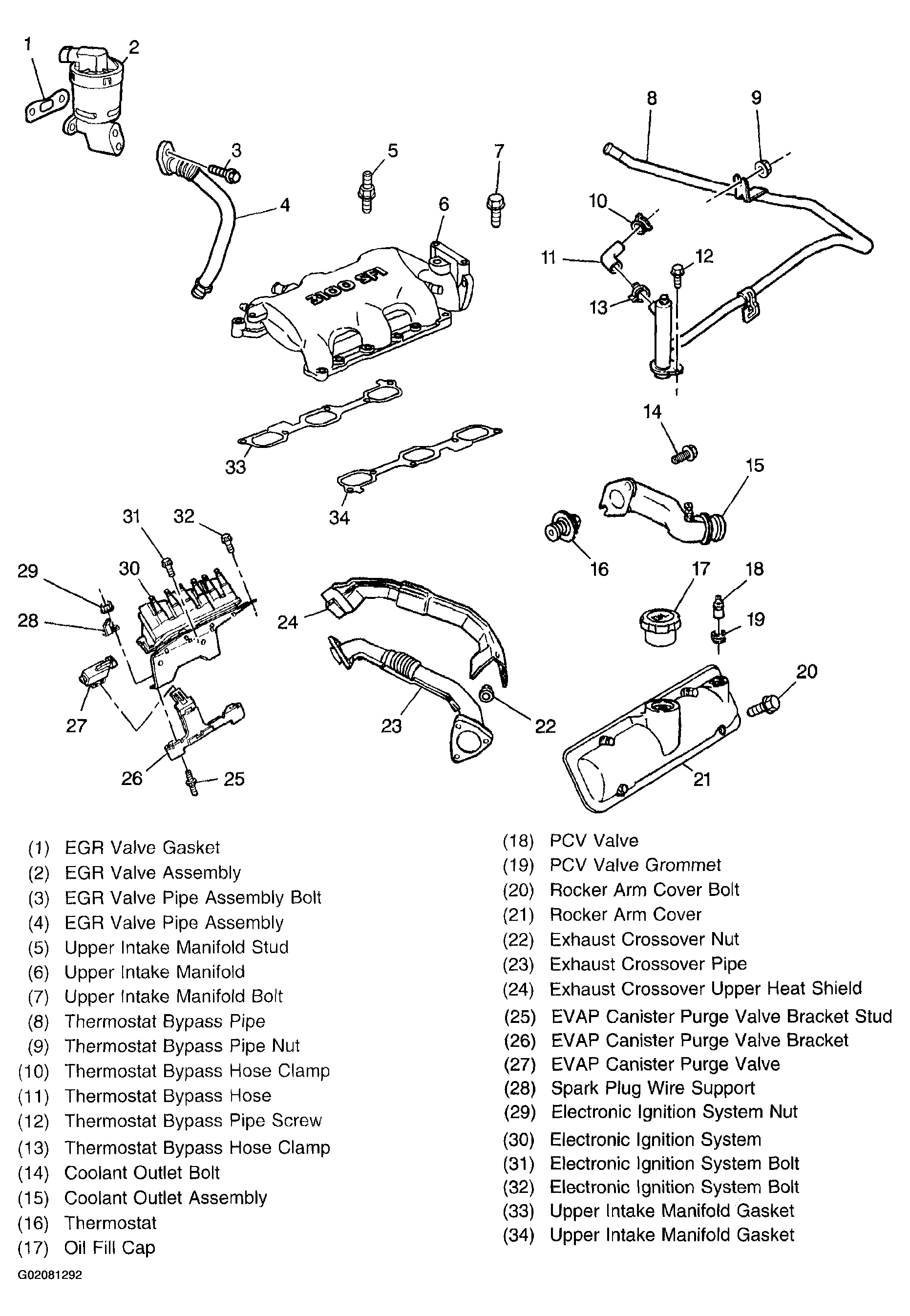

Fig 1: Upper Intake Manifold And Components Disassembled View

Courtesy of GENERAL MOTORS CORP.

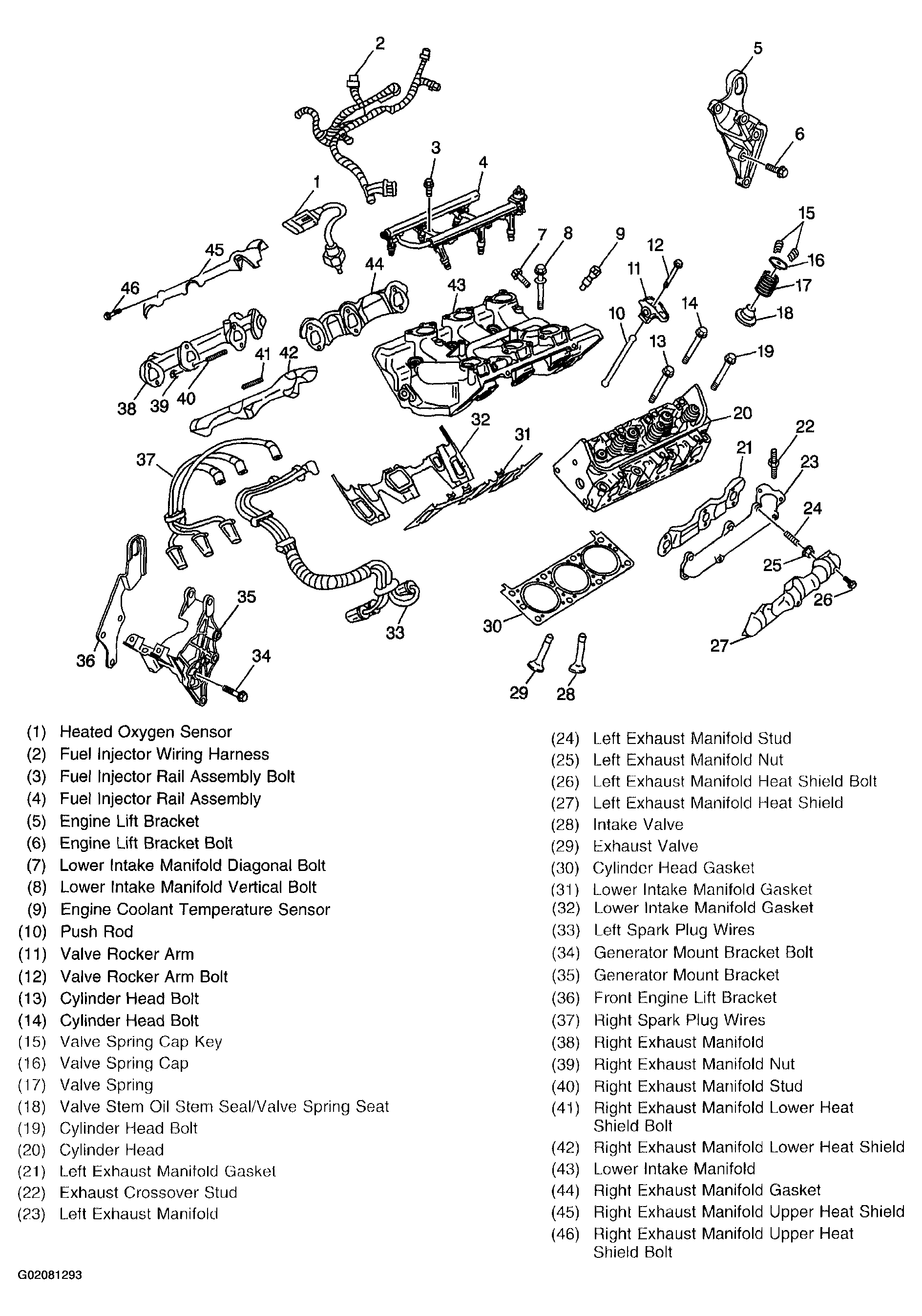

Fig 2: Lower Intake Manifold, Cylinder Head, and Components Disassembled View

Courtesy of GENERAL MOTORS CORP.

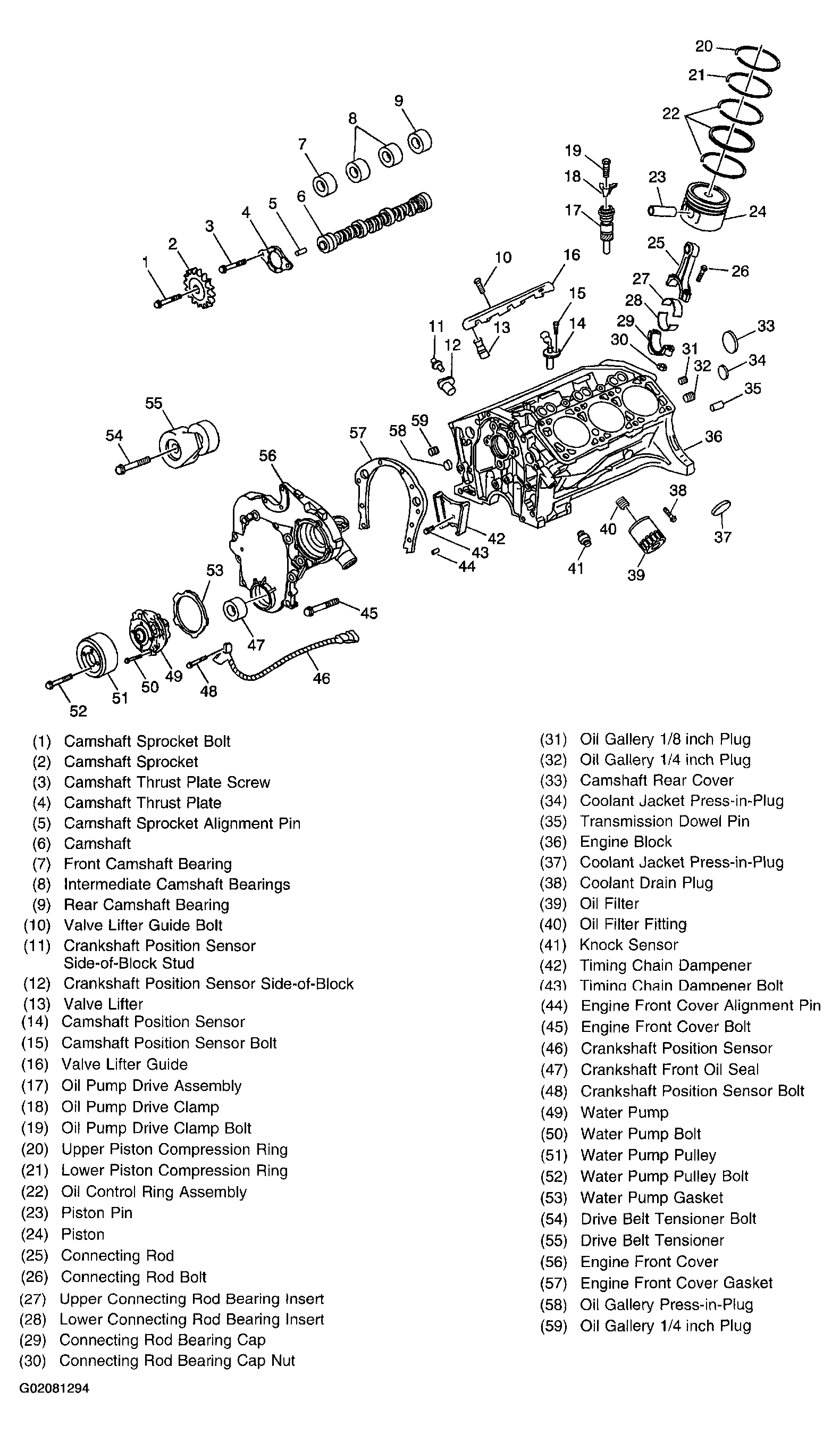

Fig 3: Engine Block and Components Disassembled View

Courtesy of GENERAL MOTORS CORP.

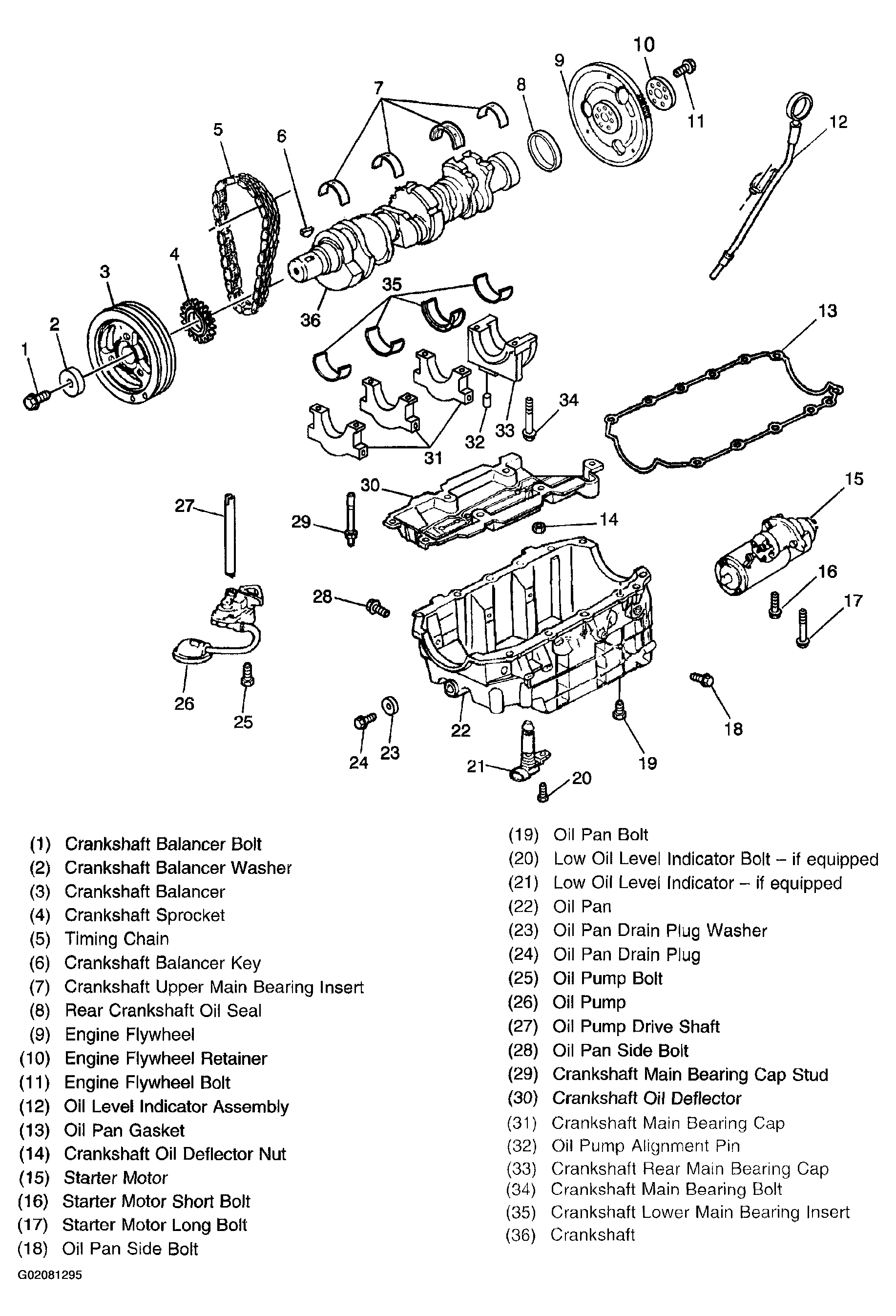

Fig 4: Crankshaft and Components Disassembled View

Courtesy of GENERAL MOTORS CORP.
