Removal Procedure
WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Refer to BRAKE FLUID IRRITANT CAUTION
.
NOTE:
Refer to BRAKE FLUID EFFECTS ON PAINT & ELECTRICAL COMPONENTS NOTICE
.
- Turn the Ignition switch to the OFF position.
- Remove BPMV and EBCM as an assembly from the BPMV bracket. Refer to Brake Pressure Modulator Valve (Bpmv) Replacement .

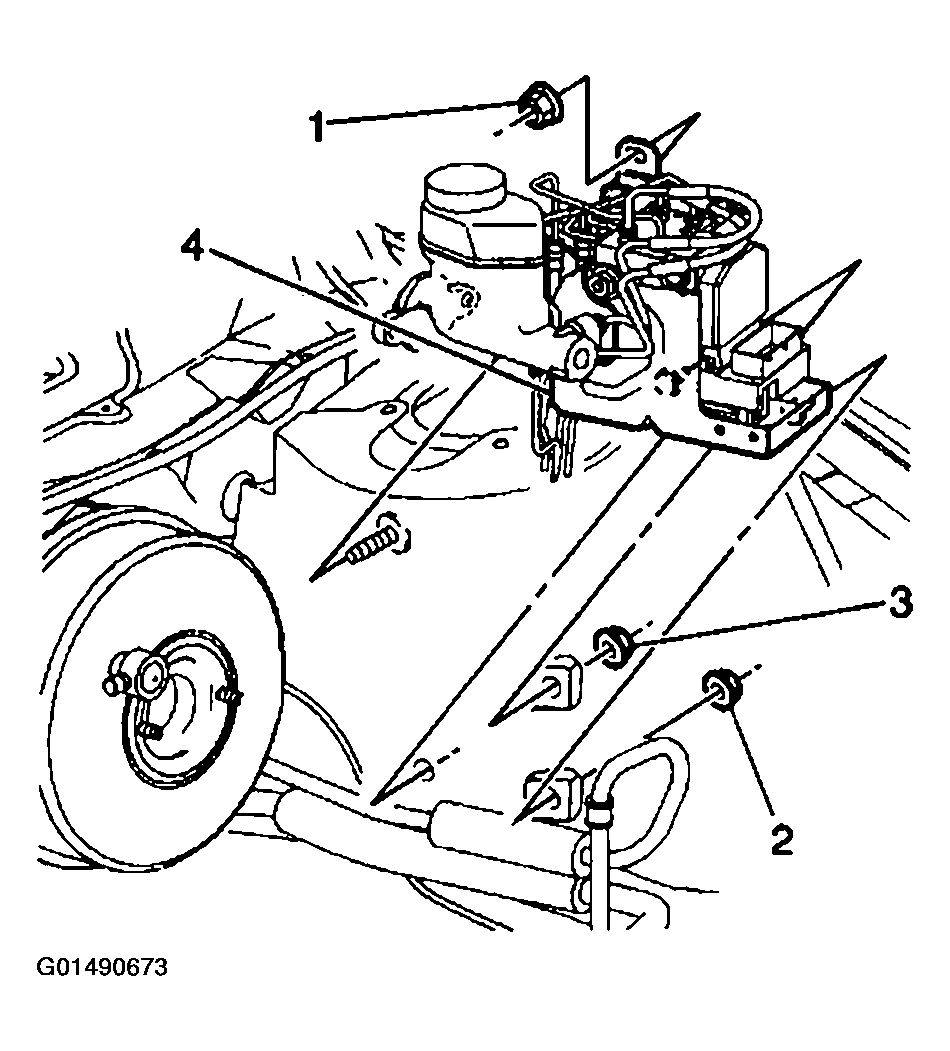

- Remove the 3 BPMV bracket nuts (1) (2) and (3) attaching the BPMV bracket (4) to the wheel housing.
- Remove the BPMV bracket (4) from the vehicle.
