Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

Install the BPMV bracket (4) to the wheel house.
NOTE: Refer to FASTENER NOTICE .
Install the 3 BPMV bracket nuts (1) (2) and (3) to the studs on the BPMV bracket (4).
Tighten

Tighten the 3 BPMV bracket nuts to 10 N.m (7 lb ft).
Install the BPMV and EBCM as an assembly to the BPMV bracket. Refer to Brake Pressure Modulator Valve (Bpmv) Replacement .
Turn the ignition switch to the RUN position.
Perform the Diagnostic System Check - ABS .

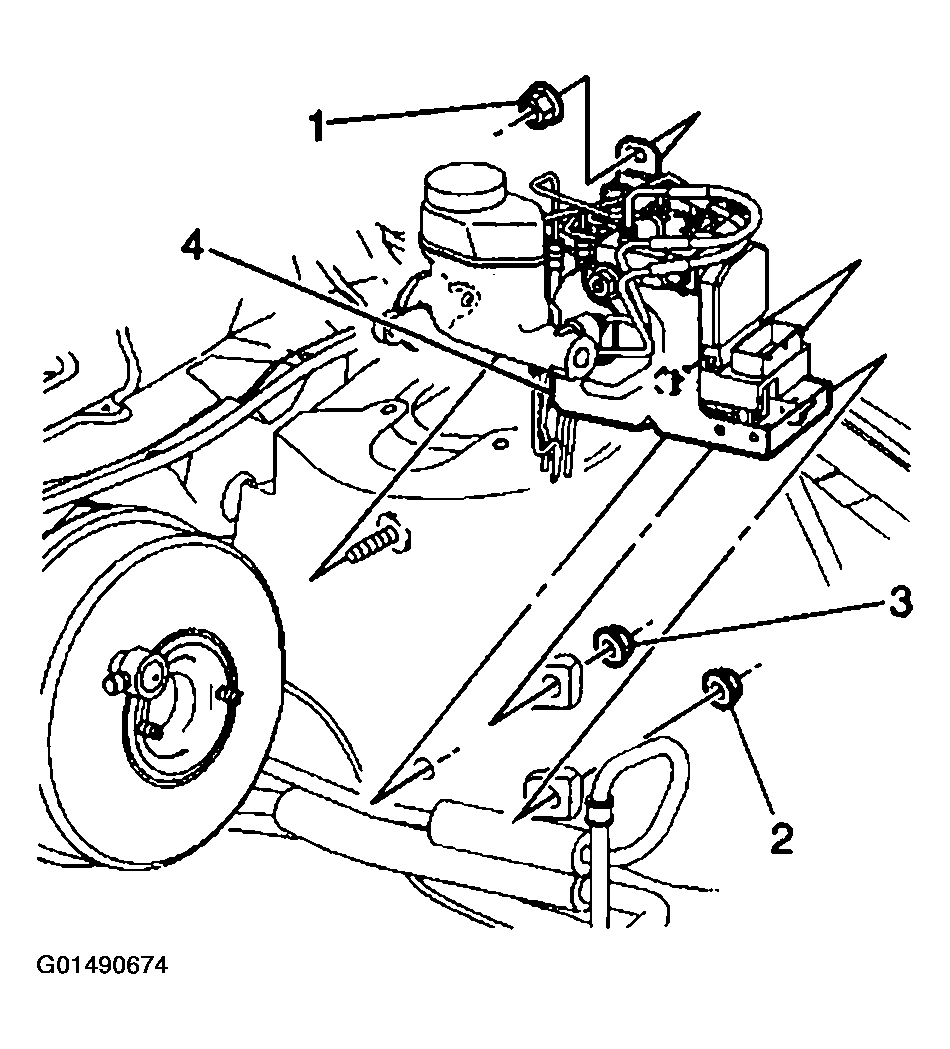

Fig 1: Installing BPMV Bracket & Nuts
Courtesy of GENERAL MOTORS CORP.
