Special Tools and Equipment

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

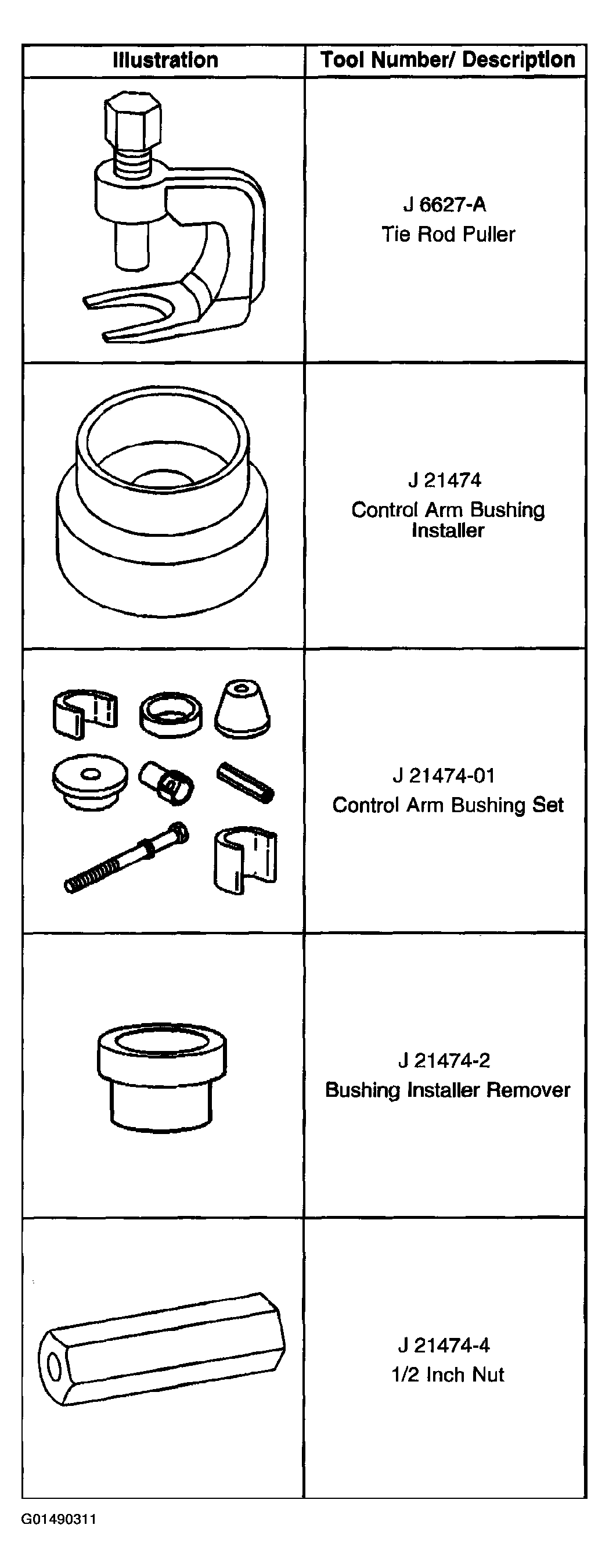

Fig 1: Special Tools J 6627-A - J 21474-4

Courtesy of GENERAL MOTORS CORP.

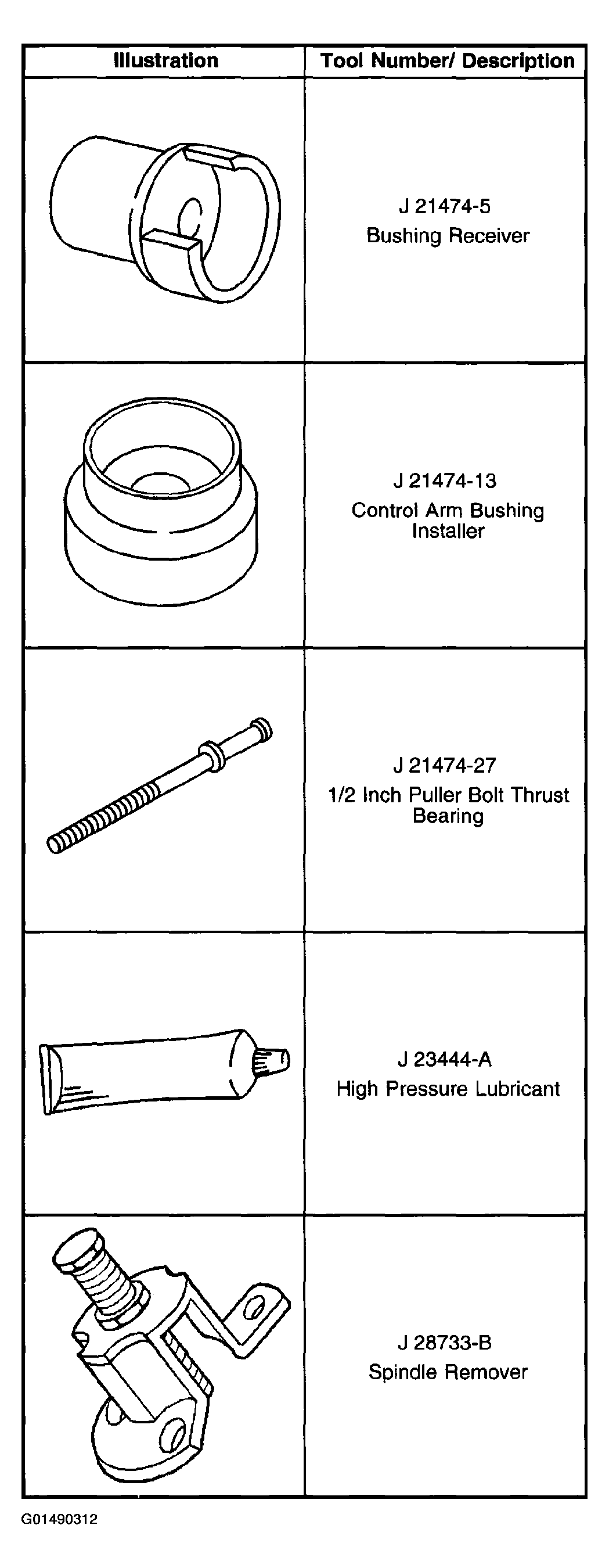

Fig 2: Special Tools J 21474-5 - J 28733-B

Courtesy of GENERAL MOTORS CORP.

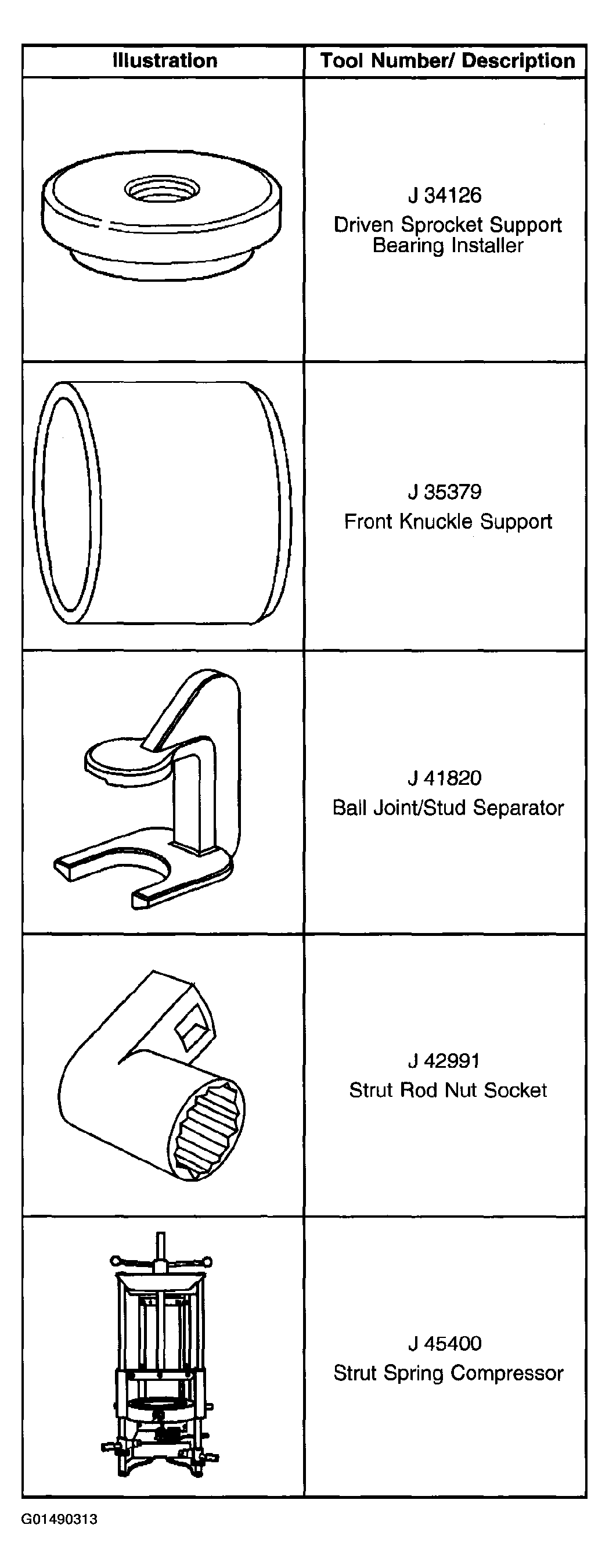

Fig 3: Special Tools J 34126 - J 45400

Courtesy of GENERAL MOTORS CORP.
