Diagnostic System Check - Variable Effort Steering

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

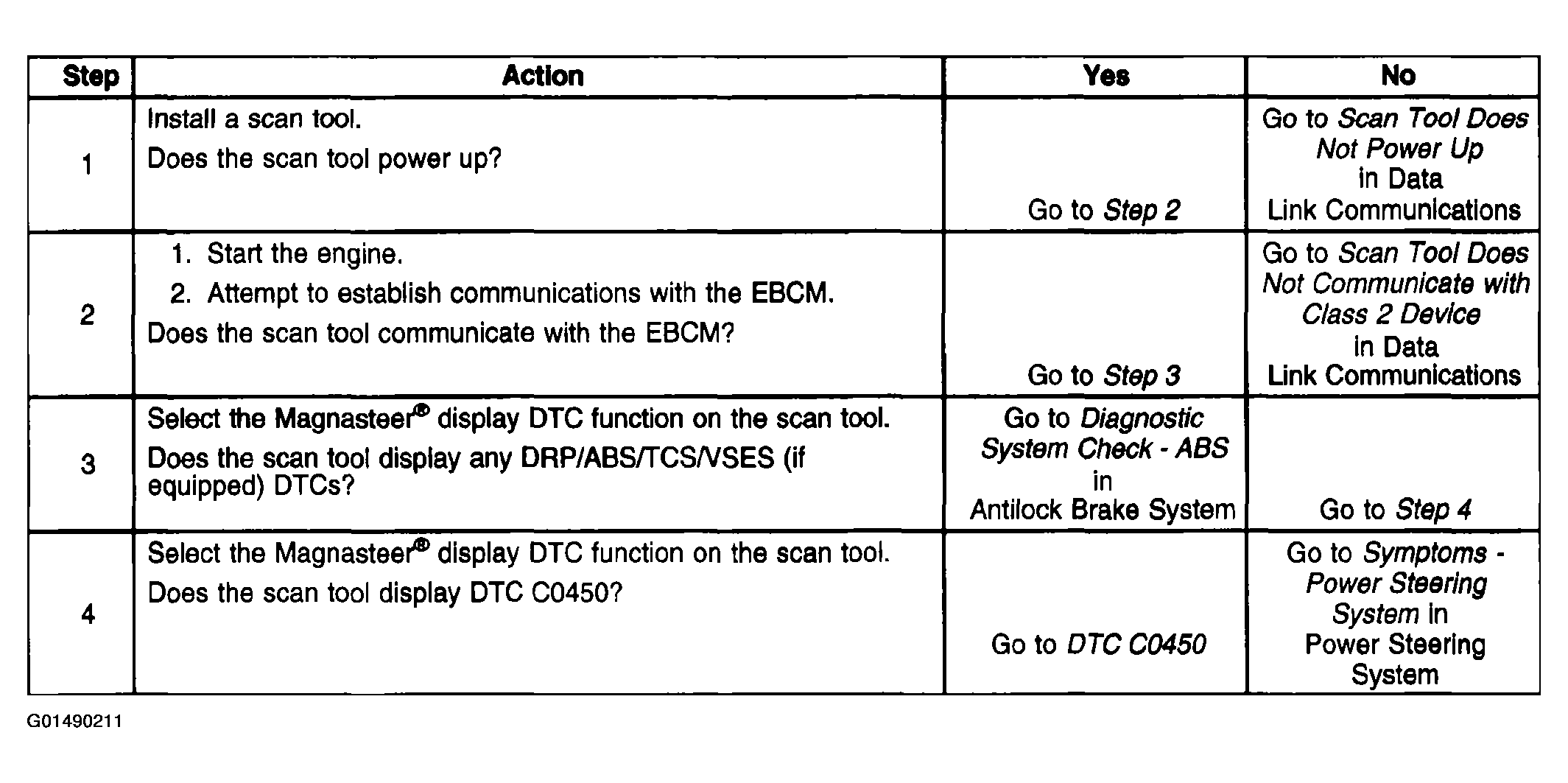

Fig 1: Diagnostic System Check Variable Effort Steering
G01490211Courtesy of GENERAL MOTORS CORP.
