Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the steering wheel theft deterrent lock (2) to the steering column (1).
    Fig 1: Installing Steering Wheel Theft Deterrent Lock To Steering Column
    G01490168Courtesy of GENERAL MOTORS CORP.
  2. Install the screw (1) to the steering wheel theft deterrent lock (3).
  3. Connect the electrical connector (2) to the steering wheel theft deterrent lock (3).
  4. Install the trim covers to the steering column. Refer to Steering Column Trim Covers Replacement  .
  5. Check the operation of the steering wheel theft deterrent lock (3).

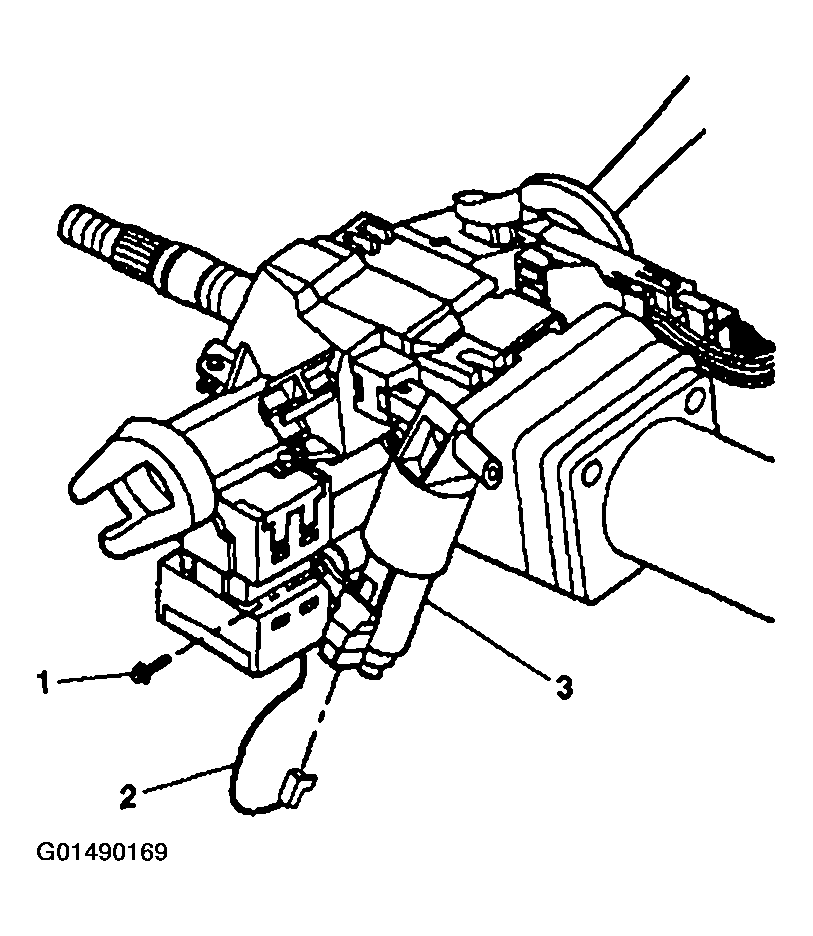

    Fig 2: Connecting Electrical Connector To Steering Wheel Theft Deterrent Lock
    G01490169Courtesy of GENERAL MOTORS CORP.
