Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connectors.

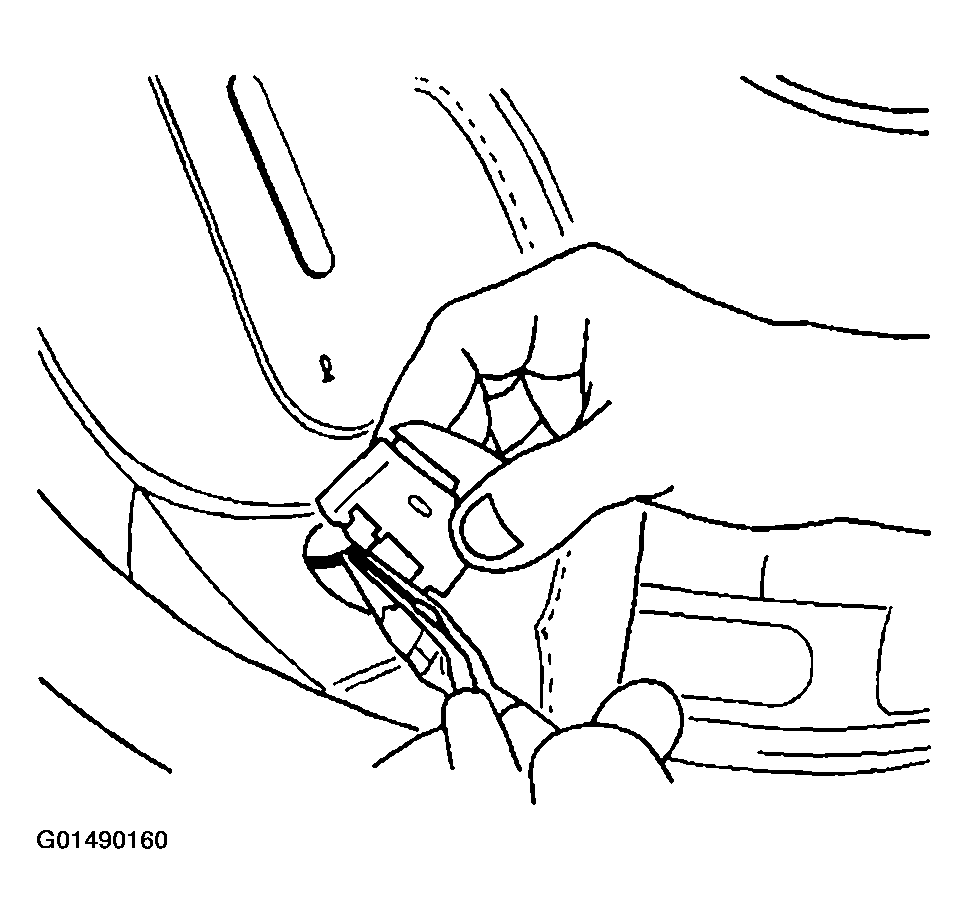

    Fig 1: Connecting Electrical Connectors
    G01490160Courtesy of GENERAL MOTORS CORP.
  2. Position the steering wheel control switches to the steering wheel.

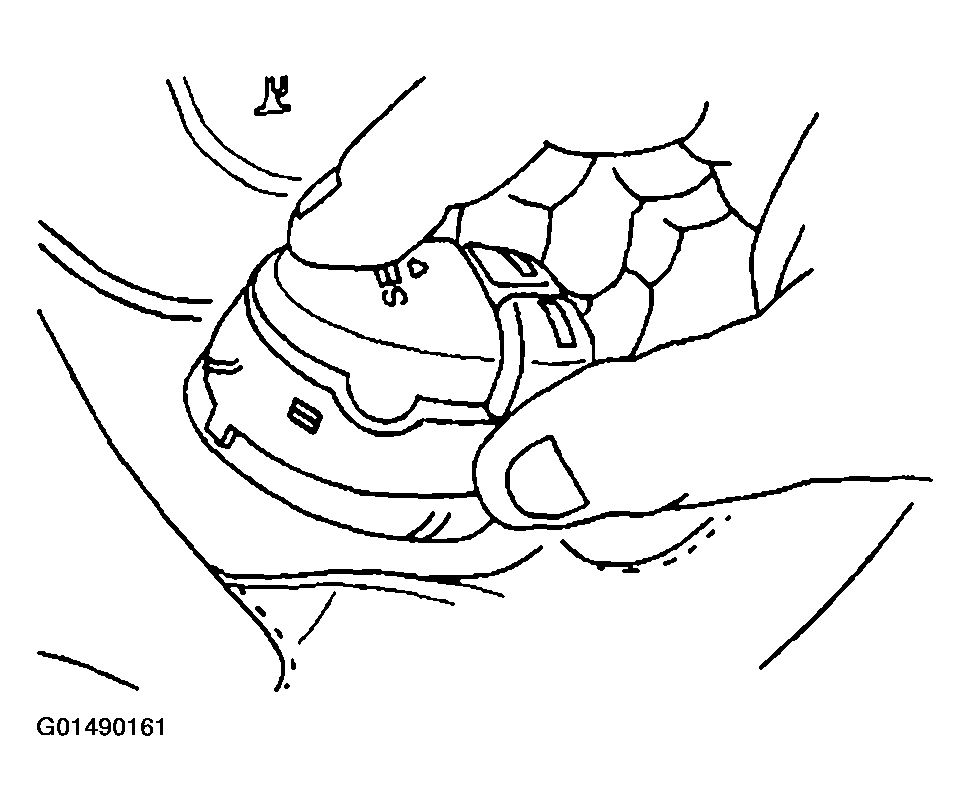

    Fig 2: Positioning Steering Wheel Control Switches To Steering Wheel
    G01490161Courtesy of GENERAL MOTORS CORP.
  3. Install the steering wheel control switches by pressing into place until fully seated.
    Fig 3: Installing Steering Wheel Control Switches
    G01490162Courtesy of GENERAL MOTORS CORP.
