Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the lock bolt spring (3) into the steering column tilt head assembly (5).
  2. Position the cutout in the lock bolt assembly (4) at the 6 o'clock position.
  3. Install the lock bolt assembly (4) into the steering column tilt head assembly (5).
  4. Push the lock bolt assembly (4) into the steering column tilt head assembly (5) until the lock bolt assembly (4) is flush with the steering column tilt head assembly (5).
  5. Align the ignition lock cylinder case (2) with the steering column tilt head assembly (5).
    NOTE: Refer to FASTENER NOTICE .
  6. Screw the 3 pan head tapping screws (1) into the ignition lock cylinder case (2).

    Tighten

    1. Tighten the screws to 7 N.m (62 lb in).

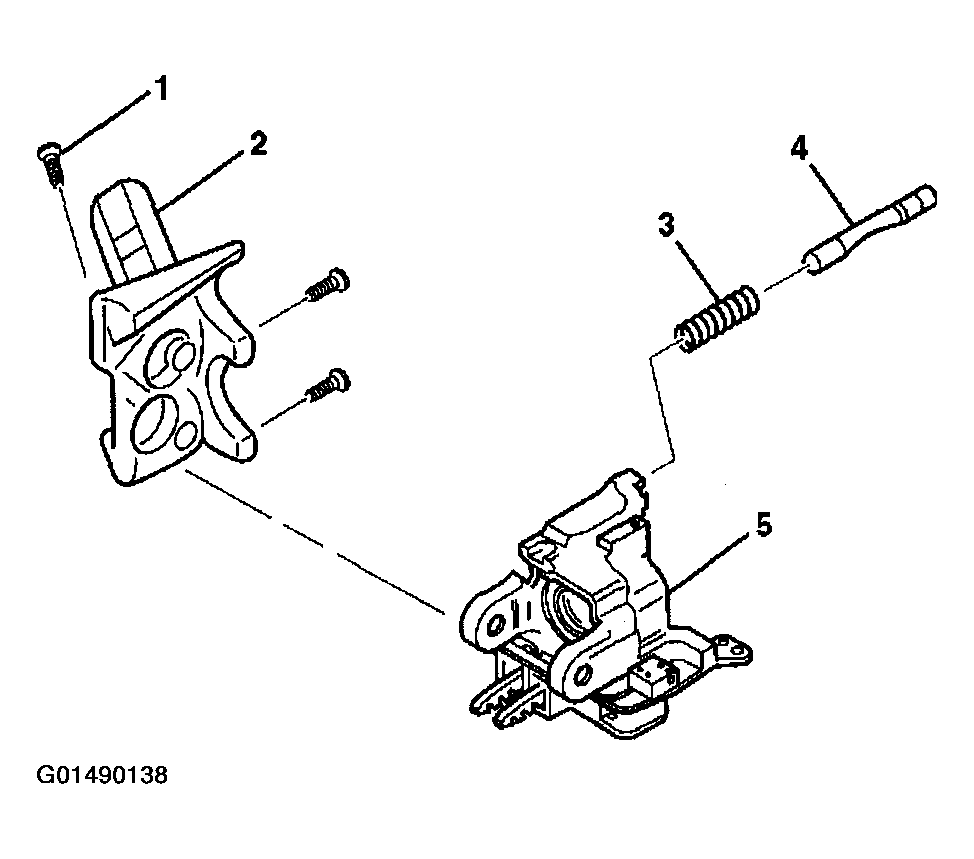

    Fig 1: Ignition Lock Cylinder Case, Column Tilt Head Assembly, Lock Bolt & Spring
    G01490138Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to SIR INFLATOR MODULE COIL CAUTION .
  7. Install the ignition switch assembly (1) onto the ignition lock cylinder case.
  8. Screw the 2 tapping screws (2) into the ignition switch assembly (1).

    Tighten

    1. Tighten the screws to 1.5 N.m (13 lb in).

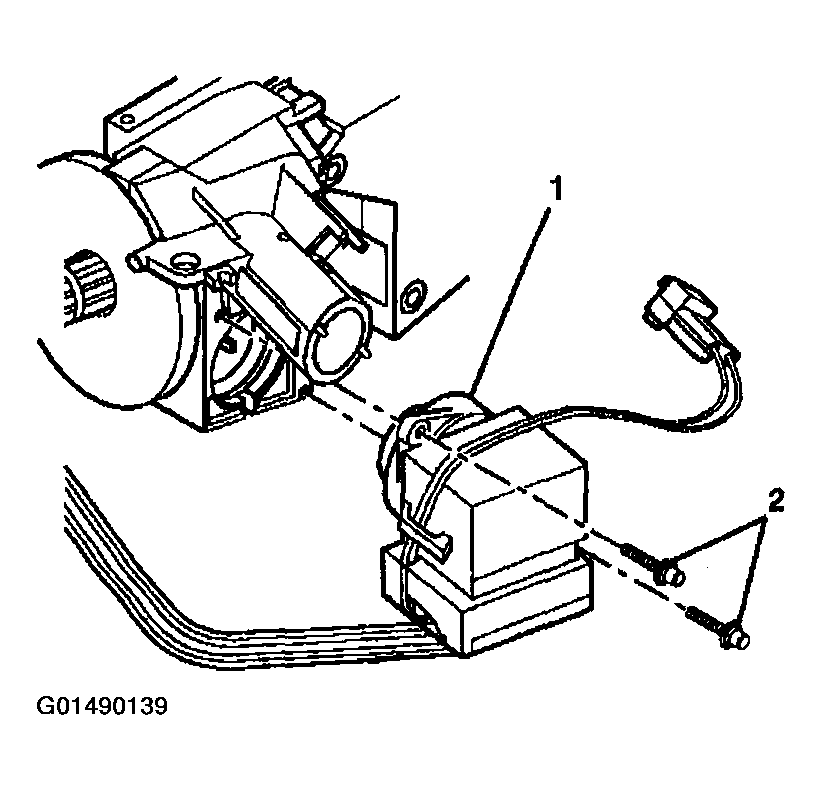

      Fig 2: Installing Ignition Switch Assembly Onto Ignition Lock Cylinder Case
      G01490139Courtesy of GENERAL MOTORS CORP.
  9. Install the theft deterrent control module (2) onto the ignition lock cylinder case (1).

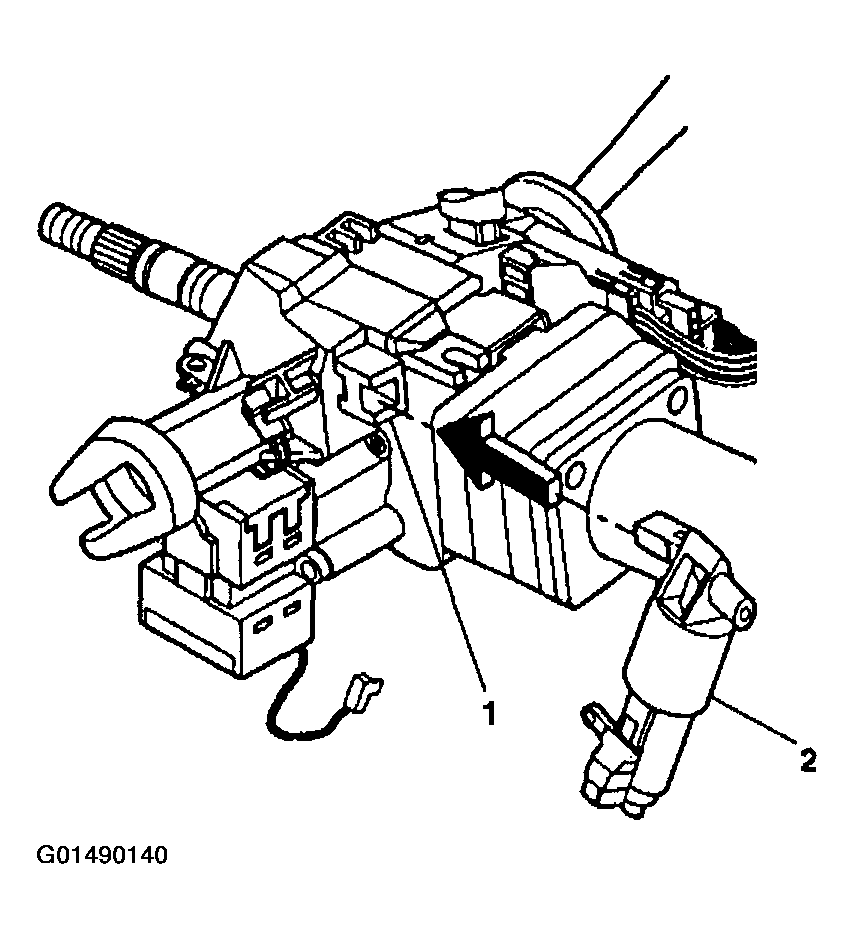

    Fig 3: Installing Theft Deterrent Control Module Onto Ignition Lock Cylinder Case
    G01490140Courtesy of GENERAL MOTORS CORP.
  10. Screw the TORX® head screw (1) into the theft deterrent control module (3).

    Tighten

    1. Tighten the screw to 1.5 N.m (13 lb in).
  11. Reconnect the connector (2) to the theft deterrent control module (3).

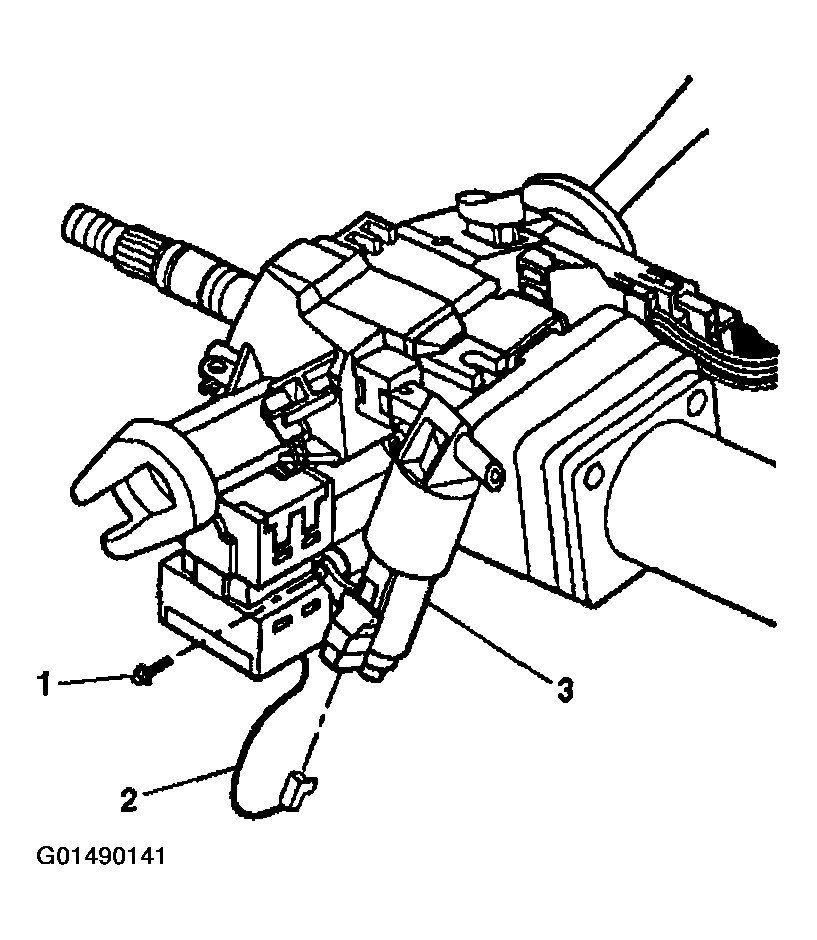

    Fig 4: Connecting Connector To Theft Deterrent Control Module
    G01490141Courtesy of GENERAL MOTORS CORP.
  12. Install the key alarm connector (1) onto the ignition lock cylinder case (2).
    1. 12.1. Push the key alarm connector (1) into the ignition lock cylinder case (2).
    2. 12.2. Rotate the key alarm connector 90 degrees so that the key alarm connector (1) locks into place.
  13. Install the ignition lock cylinder.

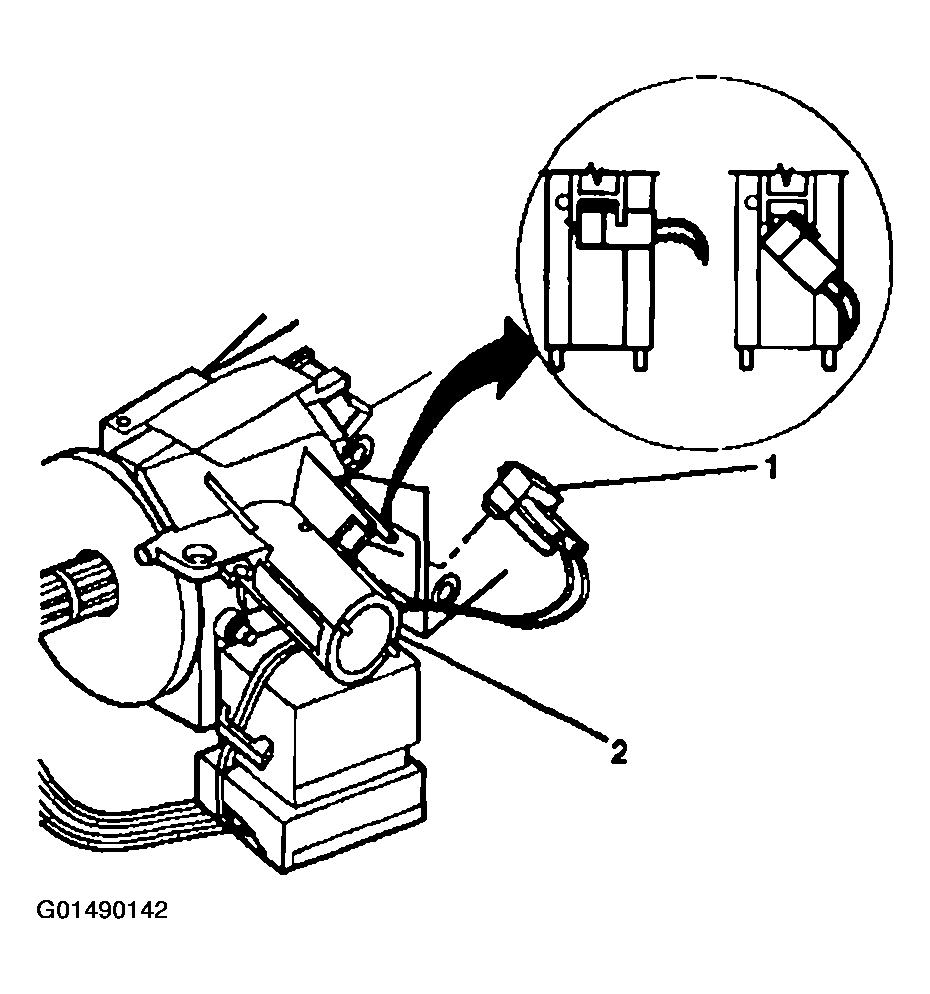

    Fig 5: Installing Key Alarm Connector Onto Ignition Lock Cylinder Case
    G01490142Courtesy of GENERAL MOTORS CORP.
  14. Slide the PASSKEY® III (2) onto the ignition lock cylinder case (1).
  15. Install the turn signal cancel cam. Refer to Turn Signal Cancel Cam And Steering Shaft Upper Bearing Spring Replacement  .
  16. Install the ignition lock cylinder. Refer to Ignition Lock Cylinder Replacement  .
  17. Enable the SIR system. Refer to DISABLING & ACTIVATING AIR BAG SYSTEM .

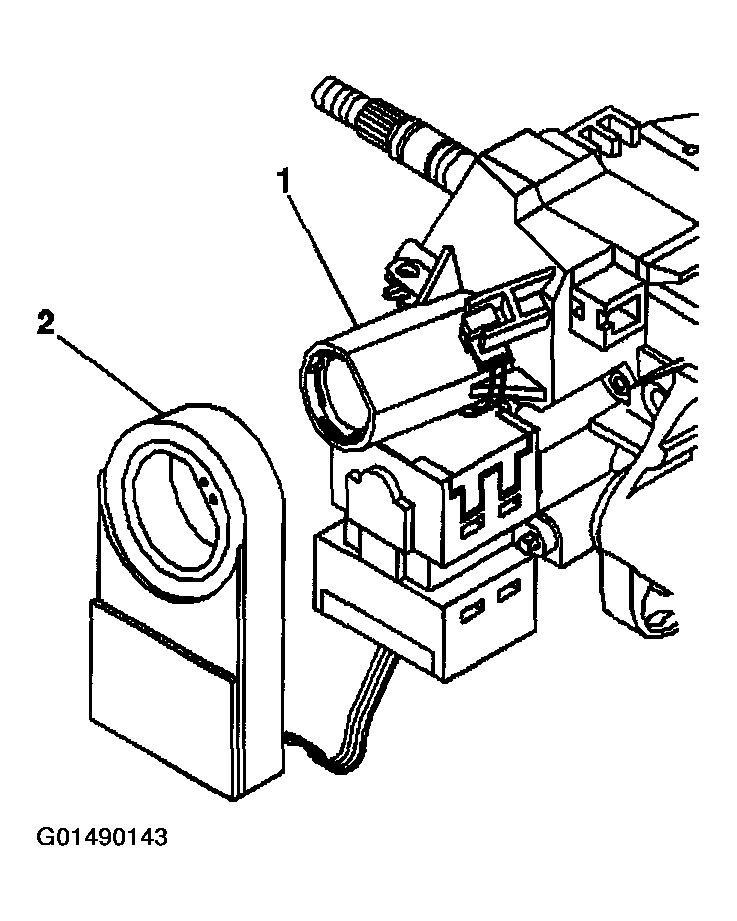

    Fig 6: Ignition Lock Cylinder Case
    G01490143Courtesy of GENERAL MOTORS CORP.
