Lock System Sticks in Start

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

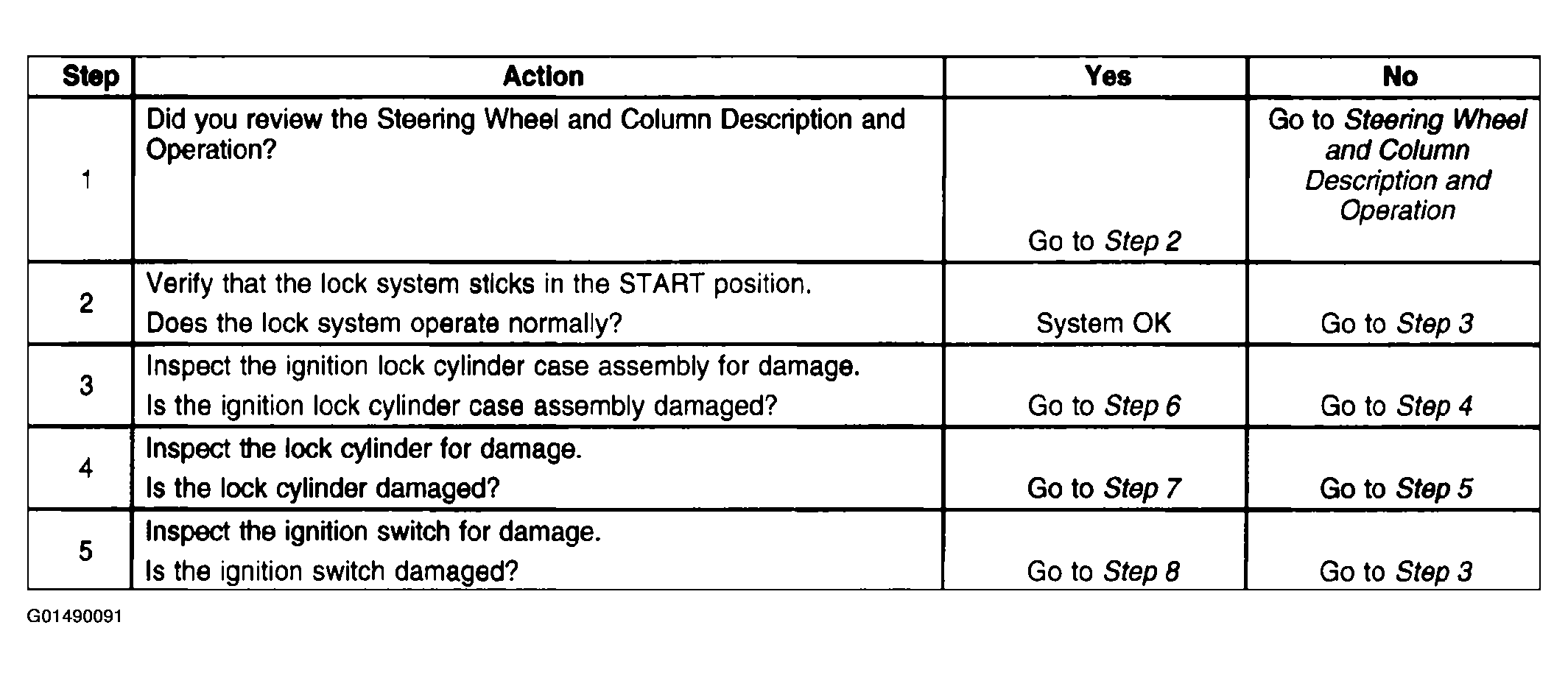

Fig 1: Lock System Sticks In Start (Steps 1 - 5)
G01490091Courtesy of GENERAL MOTORS CORP.

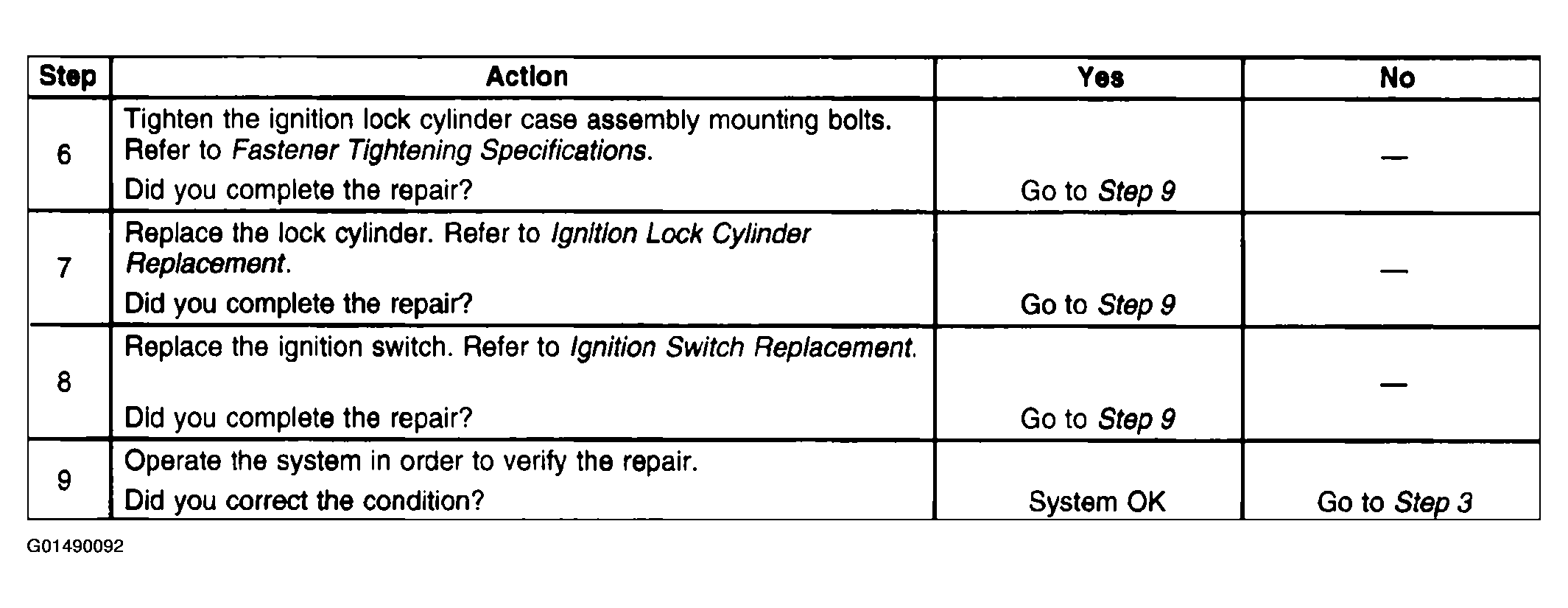

Fig 2: Lock System Sticks In Start (Steps 6 - 9)
G01490092Courtesy of GENERAL MOTORS CORP.
