Lock System Does Not Unlock

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

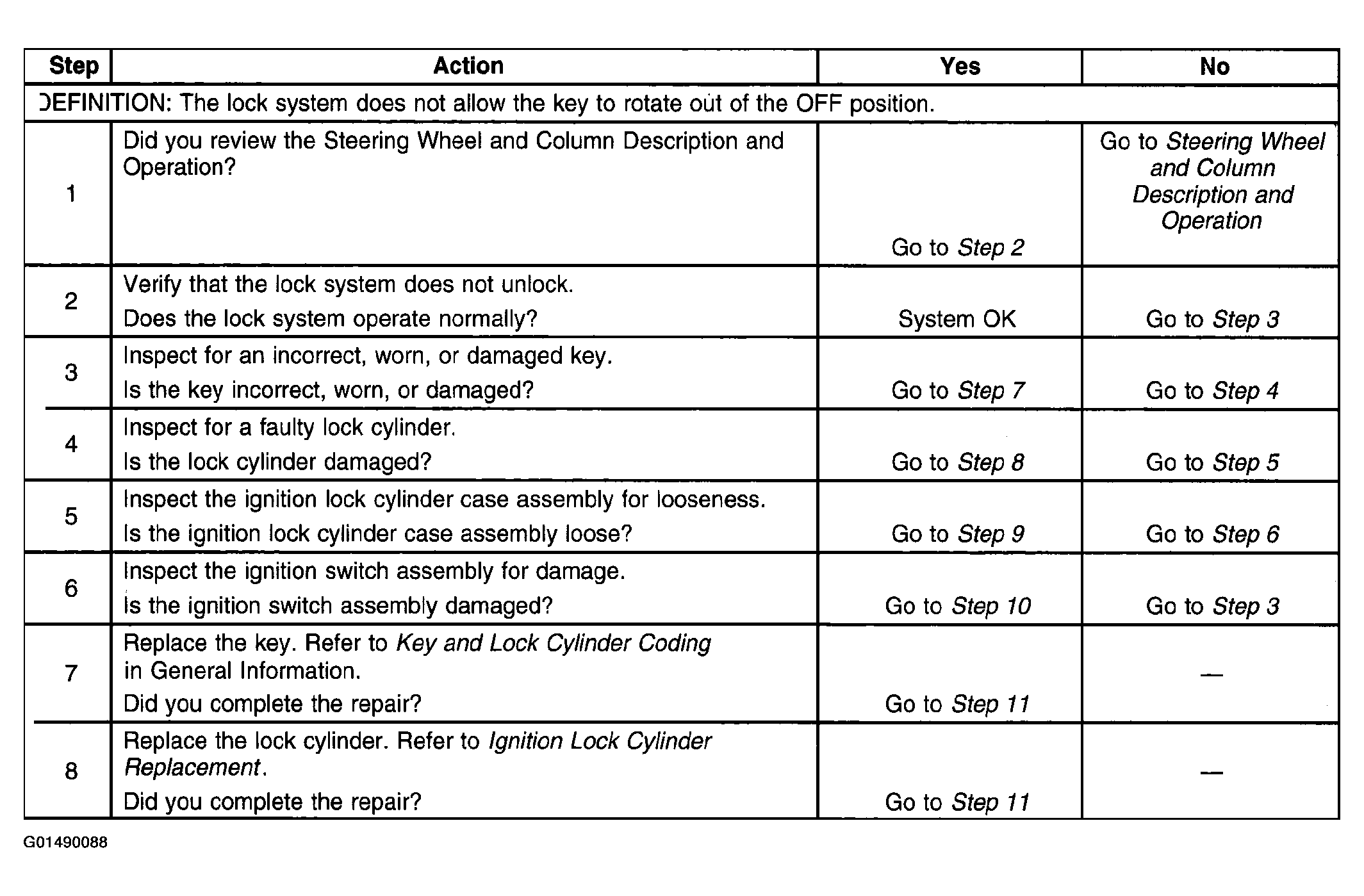

Fig 1: Lock System Does Not Unlock (Steps 1 - 8)
G01490088Courtesy of GENERAL MOTORS CORP.

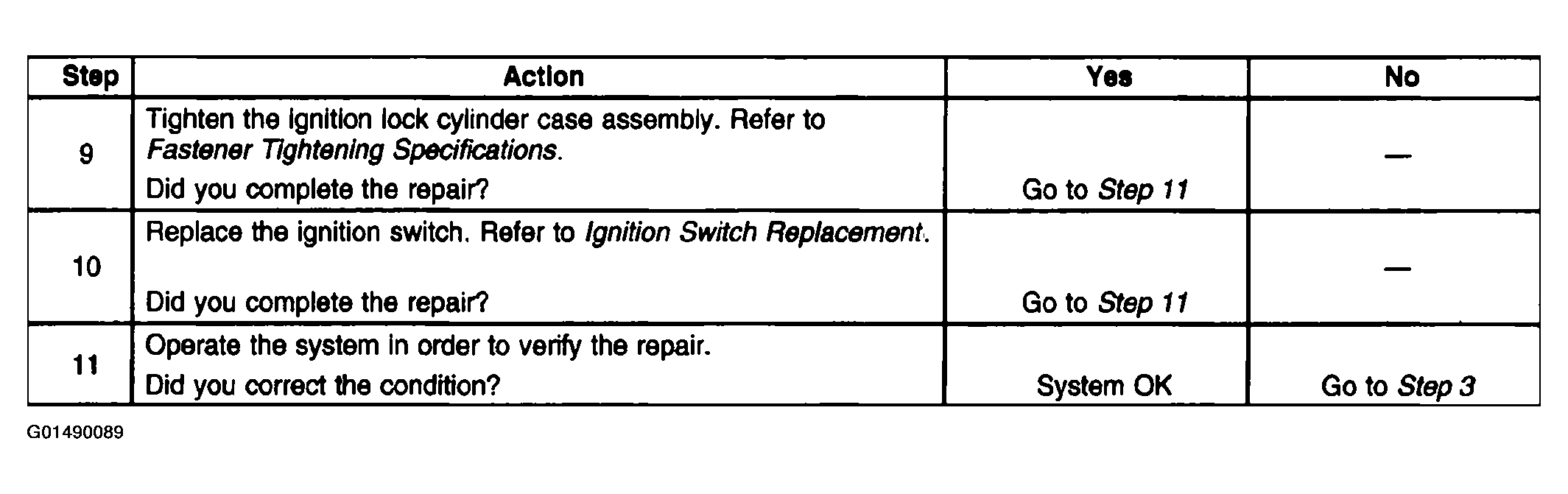

Fig 2: Lock System Does Not Unlock (Steps 9 -11)
G01490089Courtesy of GENERAL MOTORS CORP.
