Disassembly Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

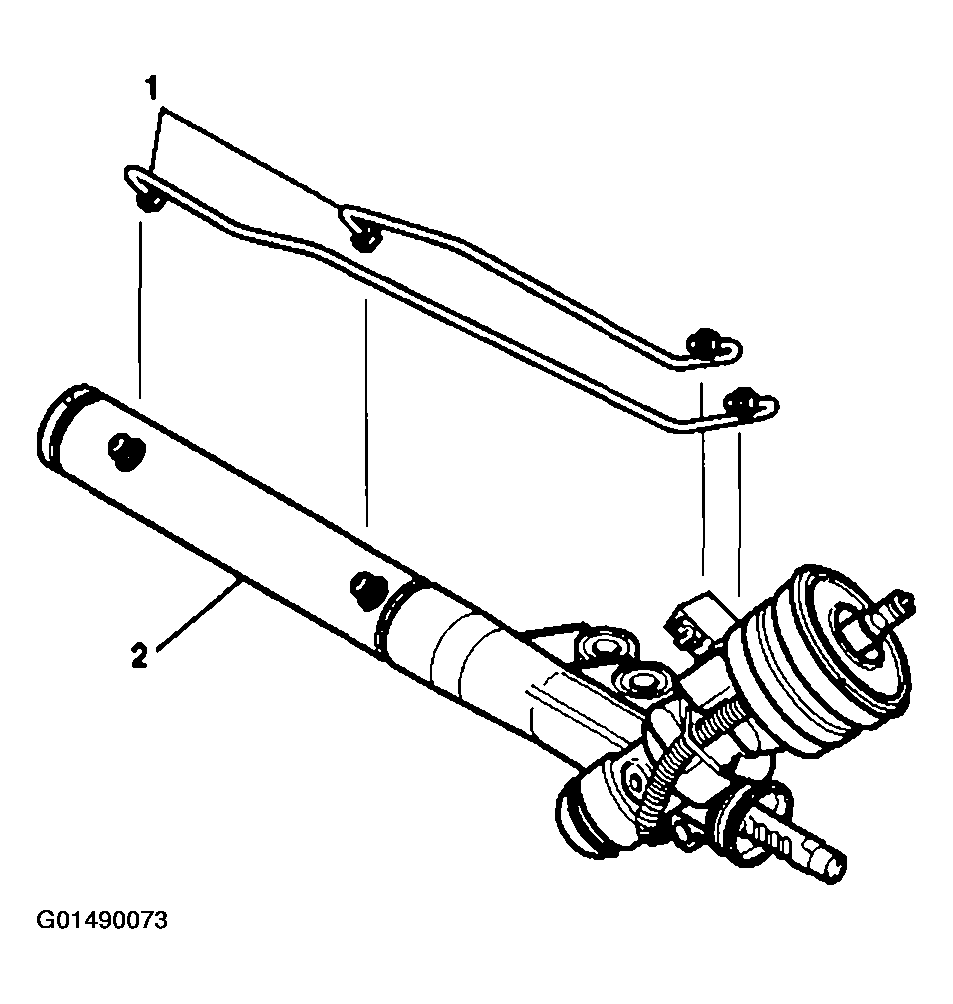

Loosen both cylinder line fittings (1) on the cylinder end of the gear assembly.

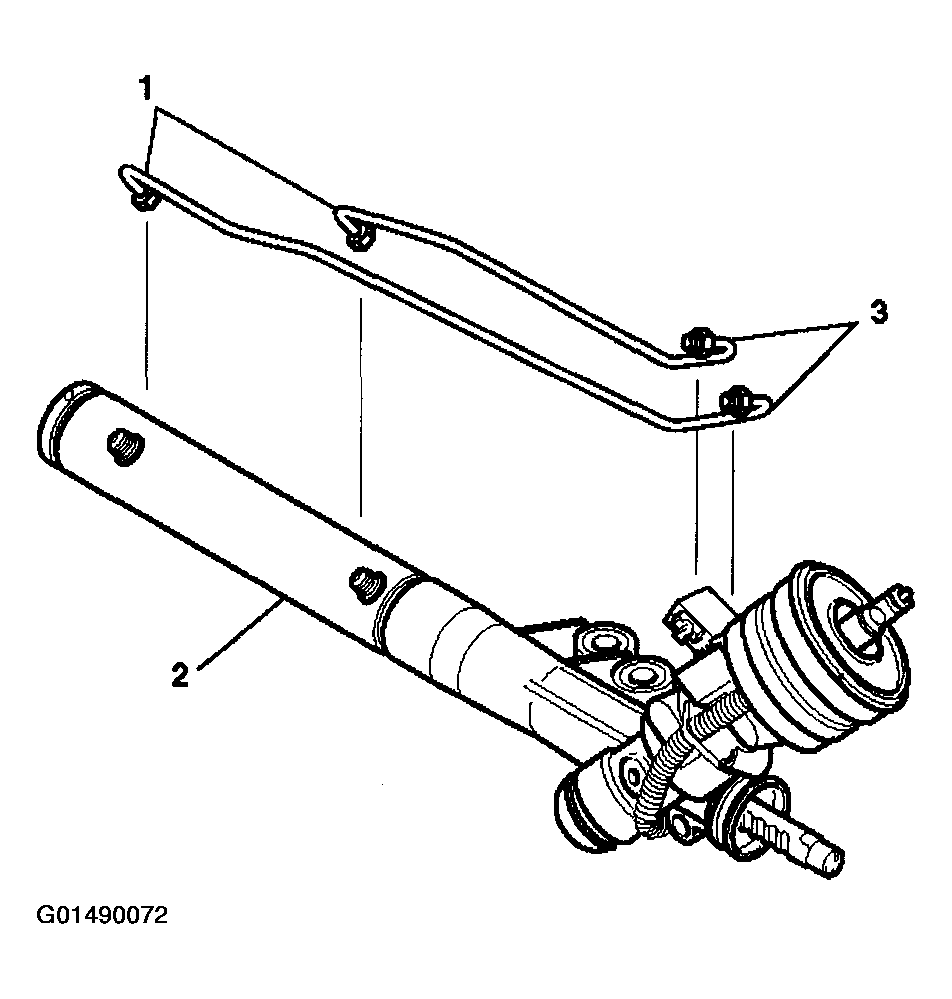

Loosen both fittings on the cylinder line assemblies (3) at the valve end of the gear assembly.

Fig 1: Loosening Cylinder Line Fittings
Courtesy of GENERAL MOTORS CORP.
Remove both cylinder line assemblies (1) from the rack and pinion gear assembly (2).

Fig 2: Removing Cylinder Line Assemblies From Rack And Pinion Gear Assembly
Courtesy of GENERAL MOTORS CORP.

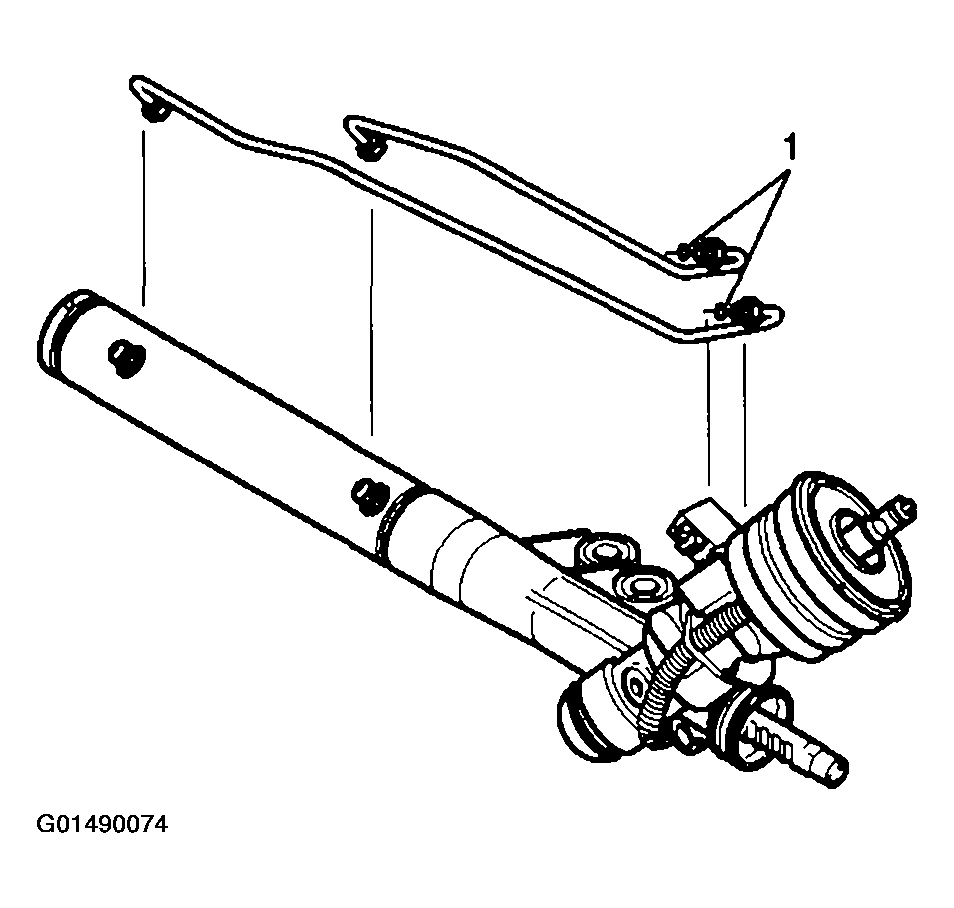

Remove the O-ring seals (1) from the valve end of line.
Discard the O-ring seals (1).

Fig 3: Removing O-Ring Seals From Valve End Of Line
Courtesy of GENERAL MOTORS CORP.
