Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the coolant recovery reservoir and move aside. Refer to COOLANT RECOVERY RESERVOIR REPLACEMENT .
  2. Remove the accessory drive belt from the power steering pump pulley. Refer to DRIVE BELT REPLACEMENT .
  3. Remove the ignition control wiring harness near the power steering pump.
  4. Remove the power steering pressure hose from the power steering pump. Refer to Power Steering Pressure Hose Replacement (3.1L)  or Power Steering Pressure Hose Replacement (3.8L)  .
  5. Remove the power steering return hose from the power steering pump. Refer to Power Steering Return Hose Replacement (3.1L)  or Power Steering Return Hose Replacement (3.8L)  .
  6. Remove the power steering pump mounting bolts.
  7. Remove the power steering pump.
  8. Remove the power steering pump pulley from the power steering pump. Refer to Power Steering Pulley Replacement (3.8L)  or Power Steering Pulley Replacement (3.1L)  .
  9. Remove the power steering pump reservoir from the power steering pump. Refer to Power Steering Reservoir Replacement - Off Vehicle (Cb Series)  .

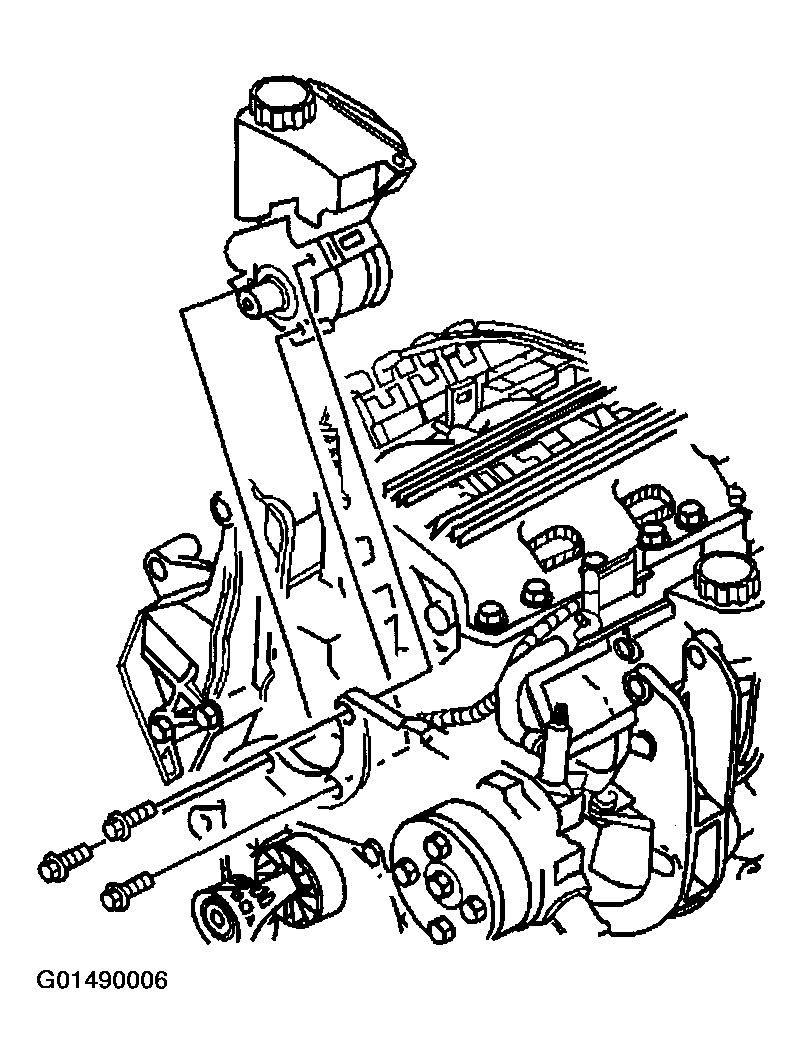

    Fig 1: Removing Power Steering Pump & Mounting Bolts
    G01490006Courtesy of GENERAL MOTORS CORP.
