Installation Procedure
WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
Important:
- Never use a hammer to install the power steering pulley.
- The face of the power steering pulley hub must be flush with the end of the power steering pump driveshaft.

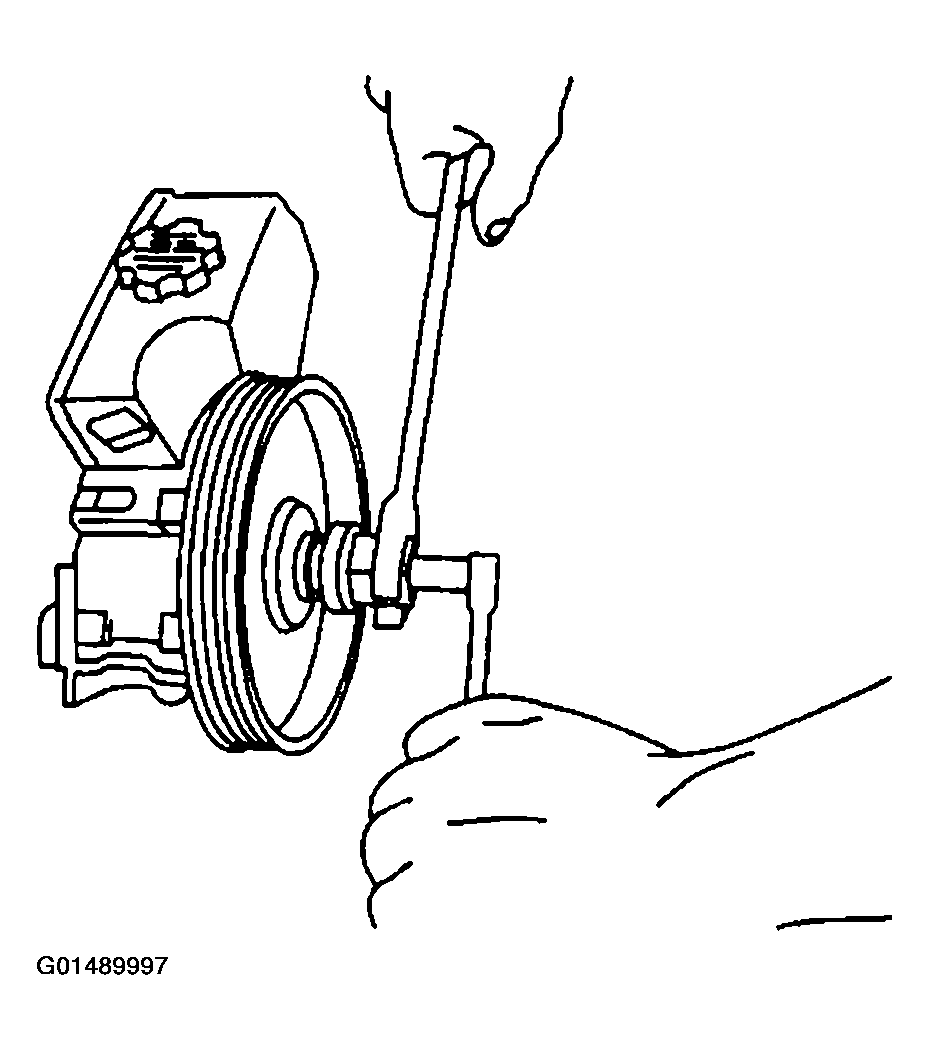

- Using J 25033-C install the power steering pump pulley to the power steering pump.
- Install the power steering pump to the engine. Refer to Power Steering Pump Replacement (3.8L) or Power Steering Pump Replacement (3.1L) .
- Fill the power steering system. Refer to Checking And Adding Power Steering Fluid .
- Bleed the power steering system. Refer to Bleeding The Power Steering System .
- Inspect the power steering system for leaks. Refer to Power Steering Fluid Leaks .
