Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the power steering pressure hose to the vehicle.
  2. Install the power steering pressure hose to the clamps on the power steering gear.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the power steering pressure hose to the power steering pump.

    Tighten

    1. Tighten the fitting to 27 N.m (20 lb ft).
  4. Install the power steering pressure hose to the power steering gear.

    Tighten

    1. Tighten the pressure hose fitting to 27 N.m (20 lb ft).
  5. Install the tire and wheel assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION
  6. Remove the drain pan from under the vehicle.
  7. Lower the vehicle.
  8. Install the accessory drive belt. Refer to DRIVE BELT REPLACEMENT (L36) or DRIVE BELT REPLACEMENT (L67) .
  9. Fill the power steering system with power steering fluid. Refer to Checking And Adding Power Steering Fluid  .

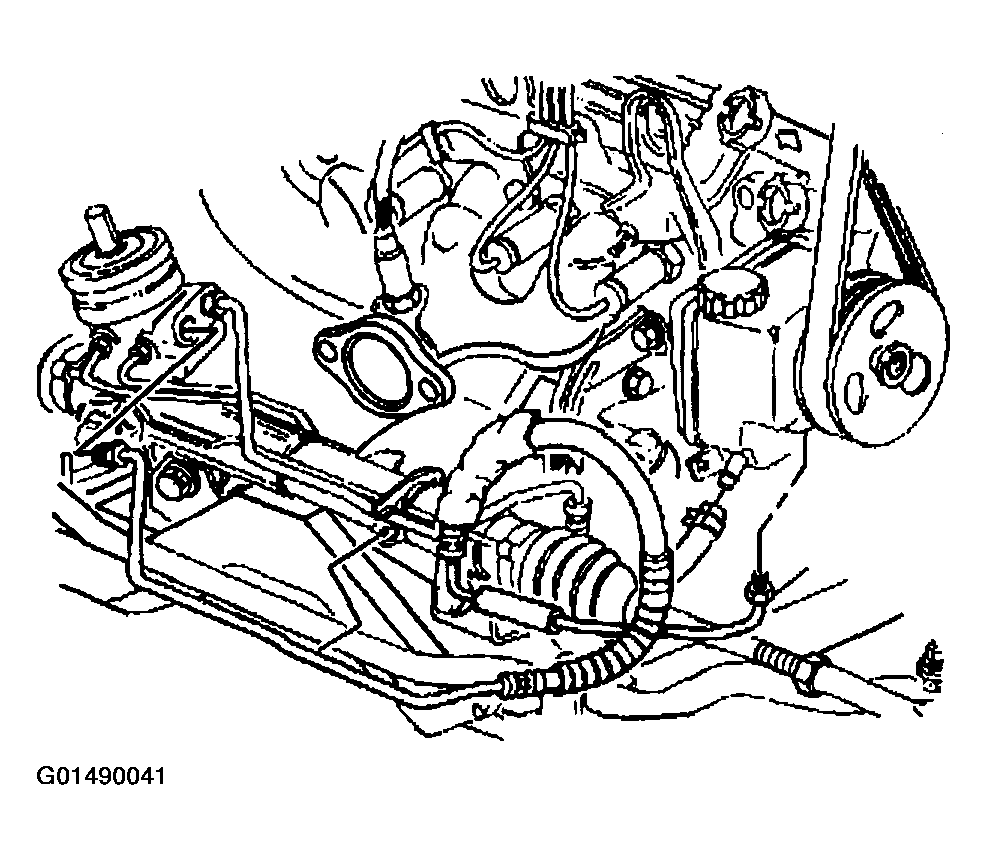

    Fig 1: Installing Power Steering Pressure Hose
    G01490041Courtesy of GENERAL MOTORS CORP.
  10. Bleed the power steering system. Refer to Bleeding The Power Steering System  .
  11. Inspect the power steering system for leaks. Refer to Power Steering Fluid Leaks  .
