Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place a drain pan under the vehicle.
  2. Remove the coolant reservoir to allow access to the power steering pressure hose. Refer to COOLANT RECOVERY RESERVOIR REPLACEMENT .
  3. Remove the pressure hose from the power steering pump.
  4. Raise and support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  5. Remove the pressure hose from the retaining bracket on the engine.

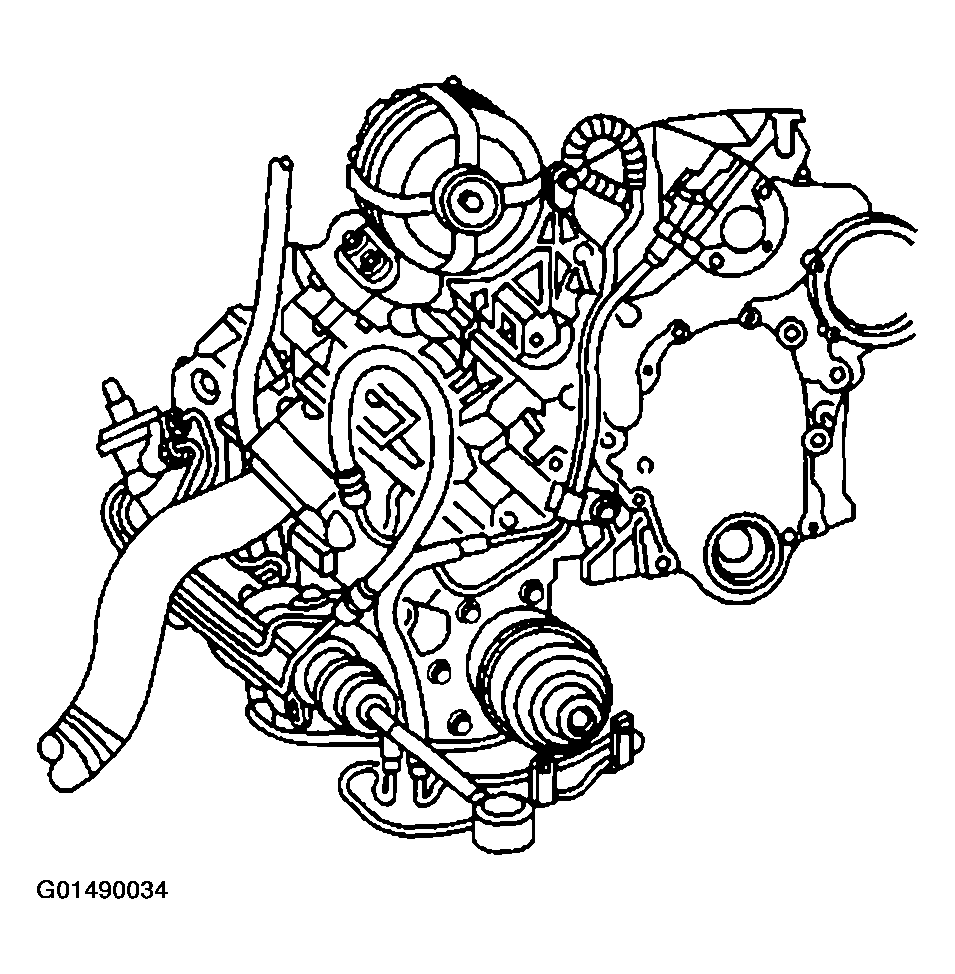

    Fig 1: Removing Pressure Hose From Retaining Bracket
    G01490034Courtesy of GENERAL MOTORS CORP.
  6. The power steering pressure hose is the lower hose at the power steering gear.

    Remove the pressure hose from the gear.

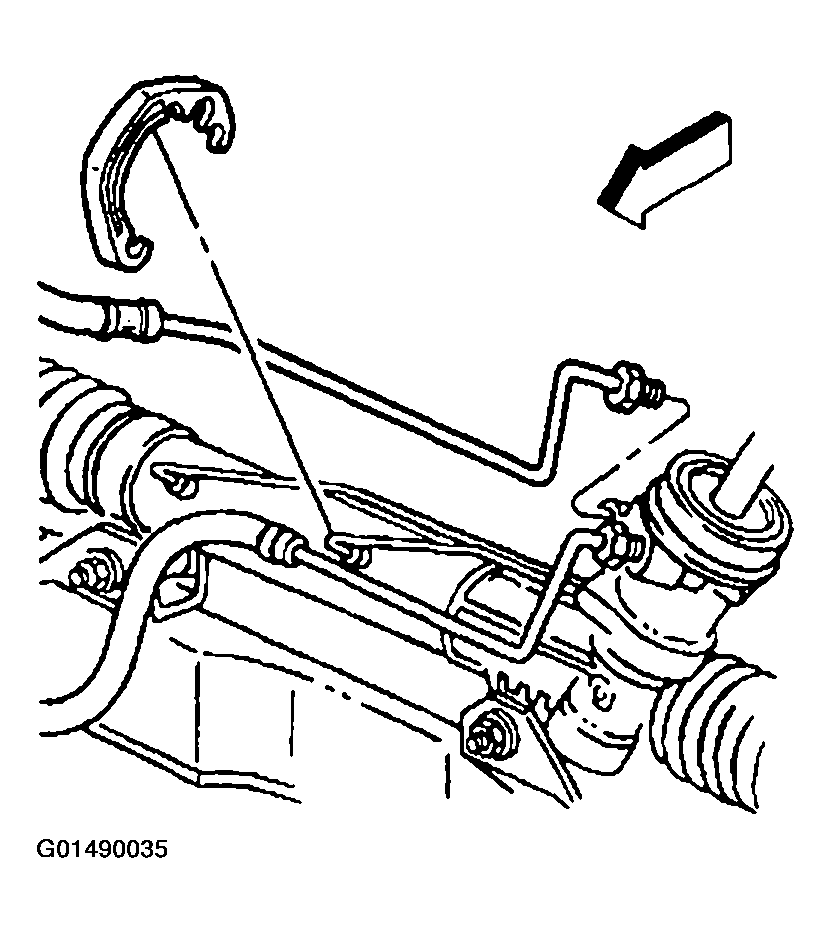

    Fig 2: Removing Pressure Hose From Gear
    G01490035Courtesy of GENERAL MOTORS CORP.
  7. Remove the power steering pressure hose from the clamps on the power steering gear.
  8. Remove the power steering pressure hose (1) from the vehicle.

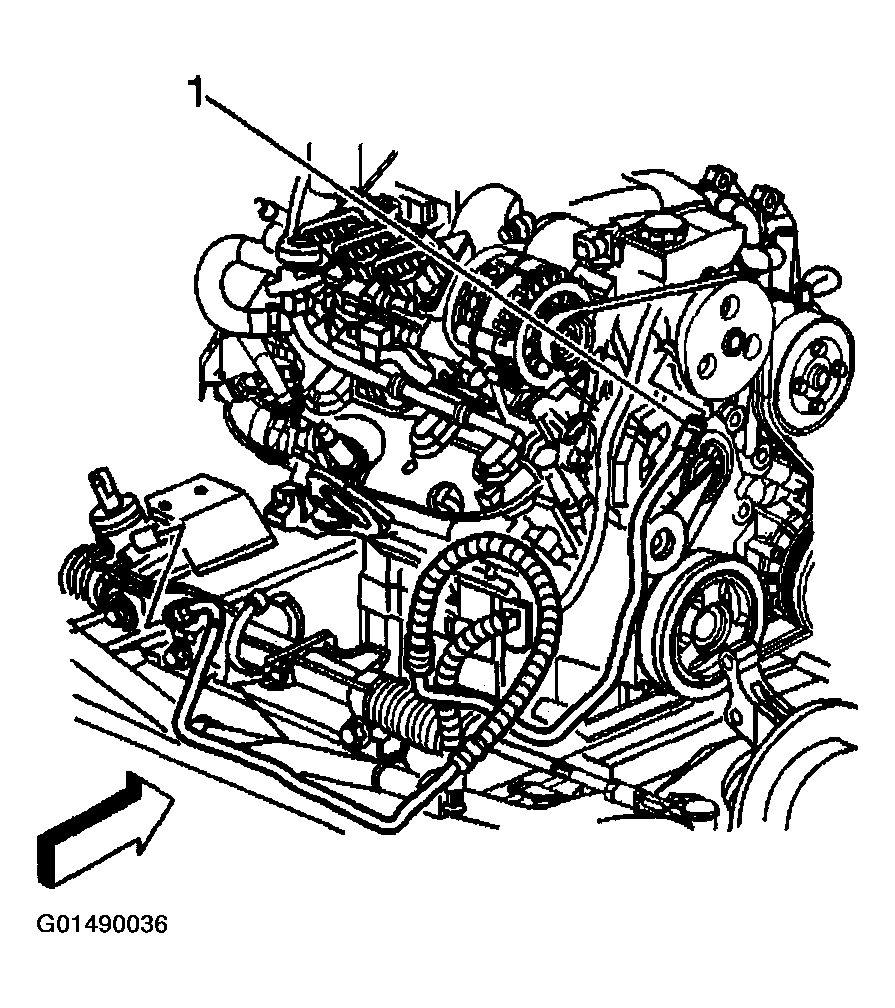

    Fig 3: Removing Power Steering Pressure Hose
    G01490036Courtesy of GENERAL MOTORS CORP.
