Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the power steering pressure hose (1) to the vehicle.
  2. Install the power steering pressure hose to the clamps on the power steering gear.

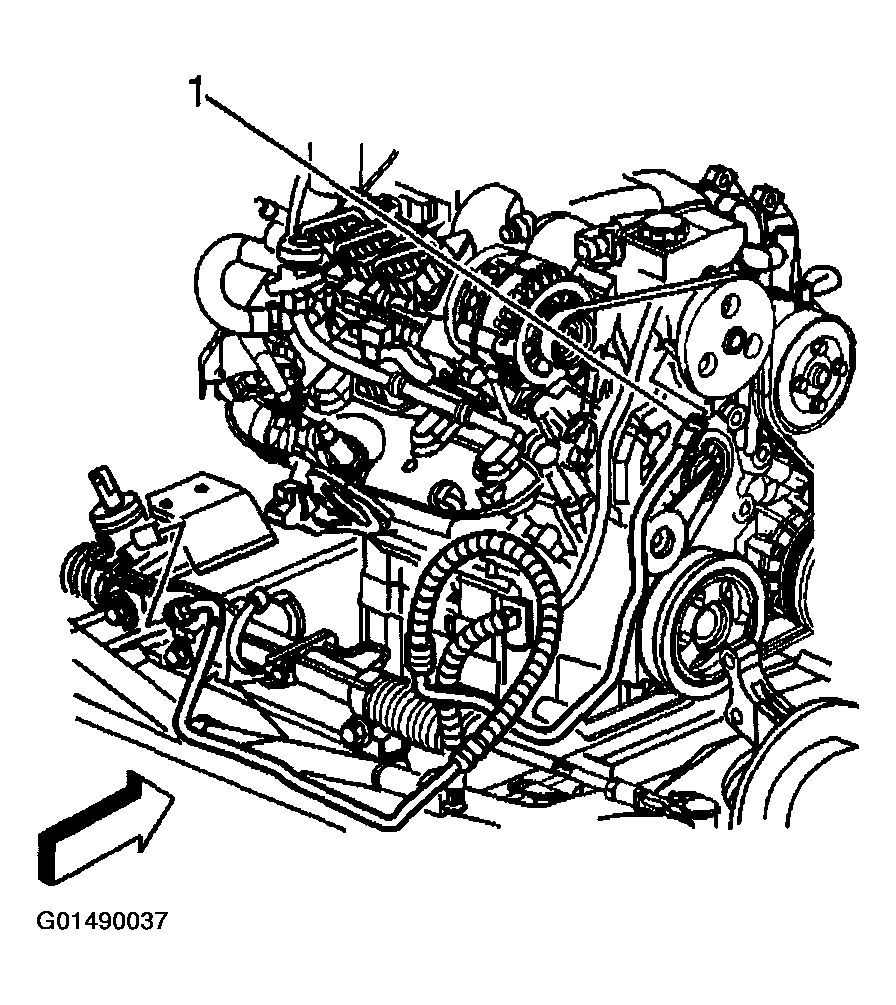

    Fig 1: Installing Power Steering Pressure Hose
    G01490037Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the power steering pressure hose to the power steering gear.

    Tighten

    1. Tighten the fitting to 27 N.m (20 lb ft).

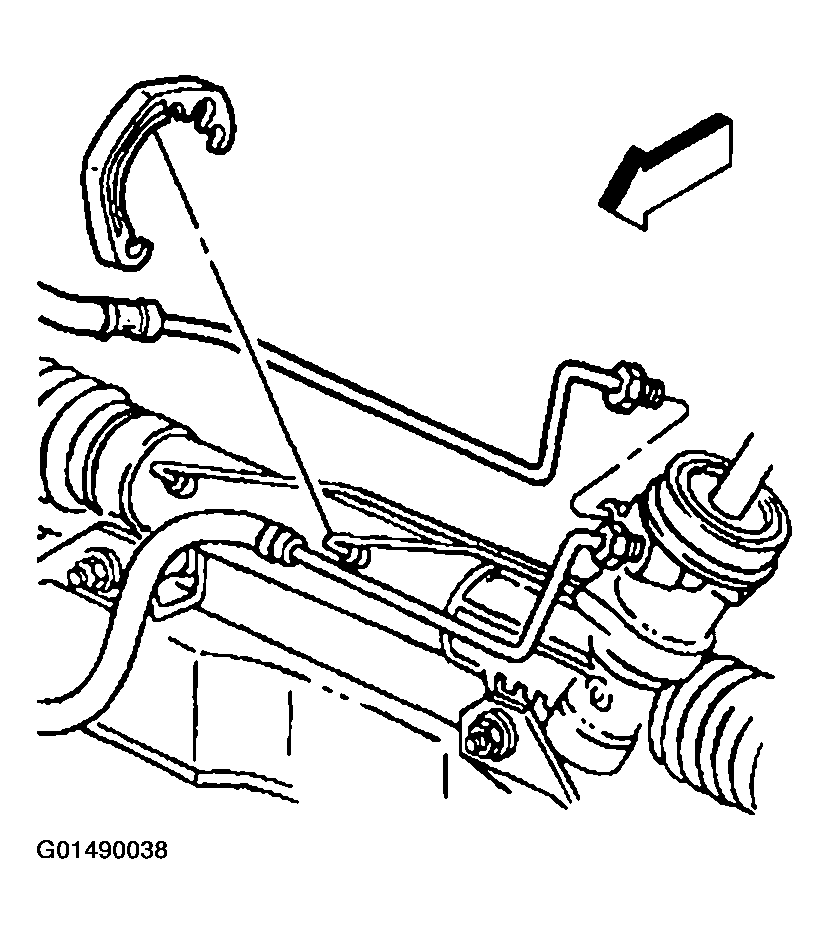

      Fig 2: Installing Power Steering Pressure Hose To Power Steering Gear
      G01490038Courtesy of GENERAL MOTORS CORP.
  4. Install the power steering pressure hose to the retaining bracket on the engine.
  5. Lower the vehicle.
  6. Install the power steering pressure hose to the power steering pump.

    Tighten

    1. Tighten the fitting to 27 N.m (20 lb ft).
  7. Install the coolant reservoir. Refer to COOLANT RECOVERY RESERVOIR REPLACEMENT .
  8. Fill the power steering system with power steering fluid. Refer to Checking And Adding Power Steering Fluid  .
  9. Bleed the power steering system. Refer to Bleeding The Power Steering System  .
  10. Inspect the power steering system for leaks. Refer to POWER STEERING FLUID LEAKS  .
  11. Remove the drain pan from under the vehicle.

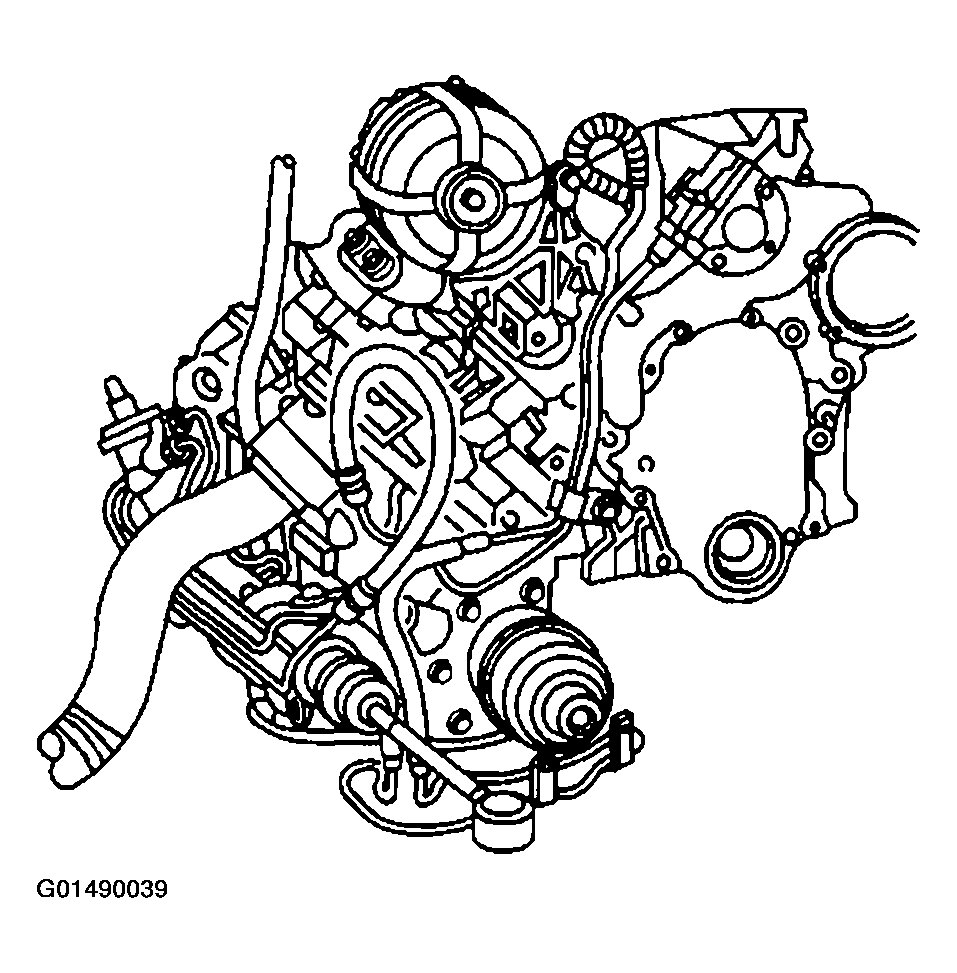

    Fig 3: Installing Power Steering Pressure Hose To Retaining Bracket On Engine
    G01490039Courtesy of GENERAL MOTORS CORP.
