Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the cooler pipe/hose to the vehicle.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the cooler pipe/hose to the steering gear.

    Tighten

    1. Tighten the fitting to 27 N.m (20 lb ft).
  3. Install the wiring harness clip to the cooler pipe/hose.
  4. Install the cooler pipe/hose to the clips on the steering gear.

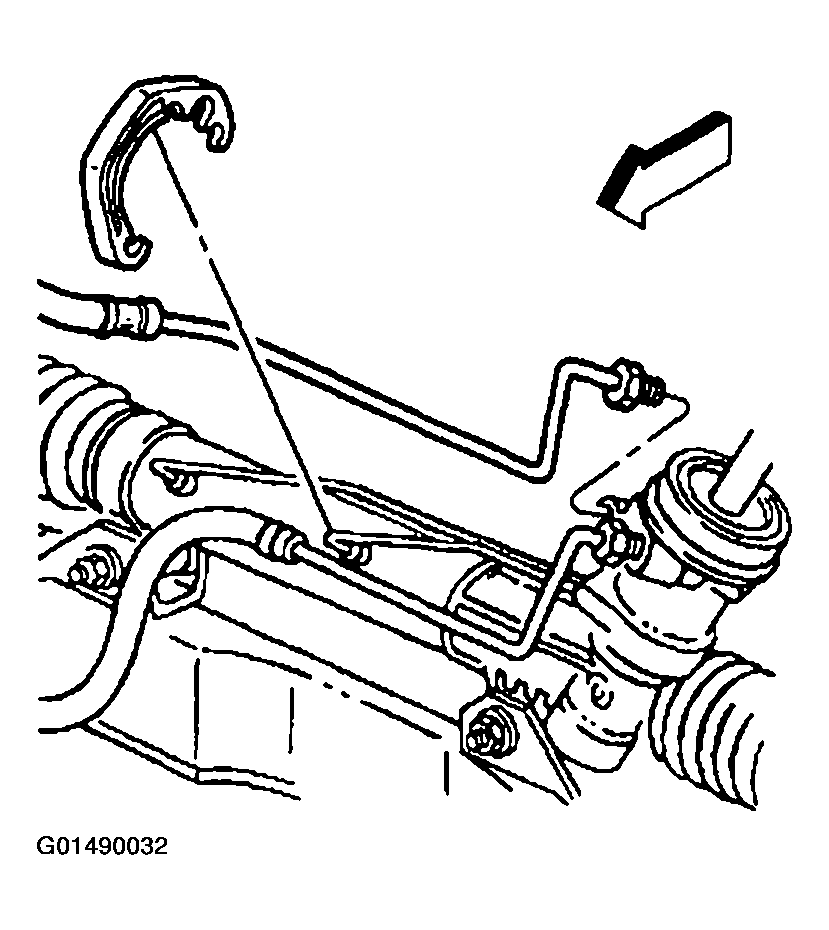

    Fig 1: Installing Cooler Pipe/Hose To Steering Gear
    G01490032Courtesy of GENERAL MOTORS CORP.
  5. Install the cooler pipe/hose to the retaining clip on the frame.
  6. Install the cooler pipe/hose retaining bolt to the frame.

    Tighten

    1. Tighten the bolt to 10 N.m (89 lb in).
  7. Install the return hose to the cooler pipe/hose. Refer to Power Steering Return Hose Replacement (3.1L)  or Power Steering Return Hose Replacement (3.8L)  .
  8. Lower the vehicle.
  9. Fill the power steering system. Refer to Checking And Adding Power Steering Fluid  .
  10. Bleed the power steering system. Refer to Bleeding The Power Steering System  .
  11. Inspect the power steering system for leaks. Refer to Power Steering Fluid Leaks  .

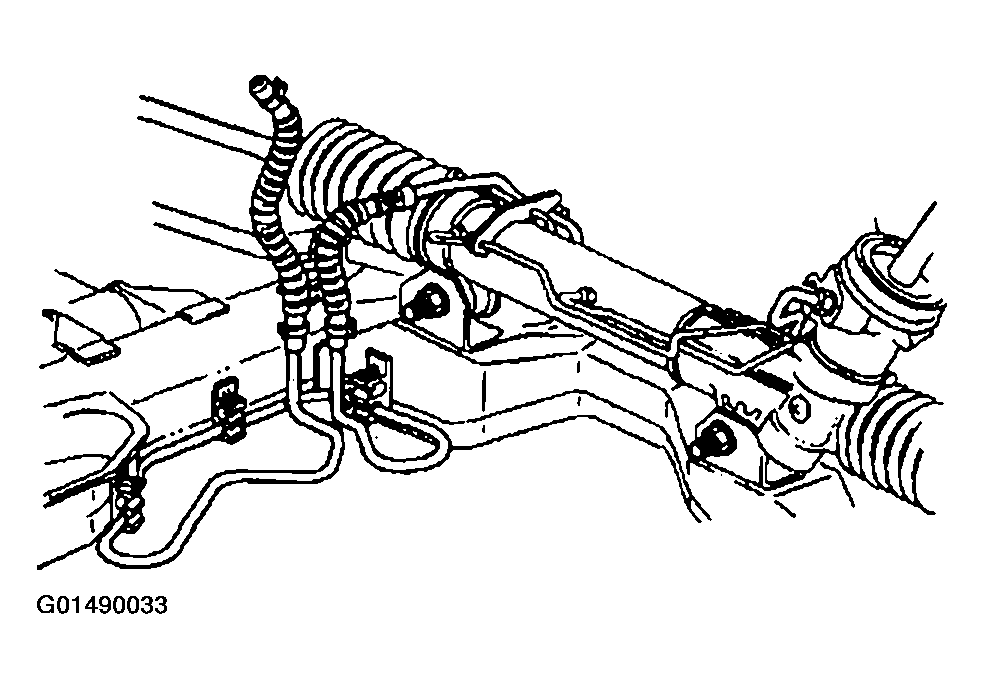

    Fig 2: Installing Cooler Pipe/Hose & Retaining Bolt
    G01490033Courtesy of GENERAL MOTORS CORP.
