Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the vacuum tank to the HVAC control module.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the screws to the vacuum tank.

    Tighten

    Tighten the screw to 1.5 N.m (13 lb in).

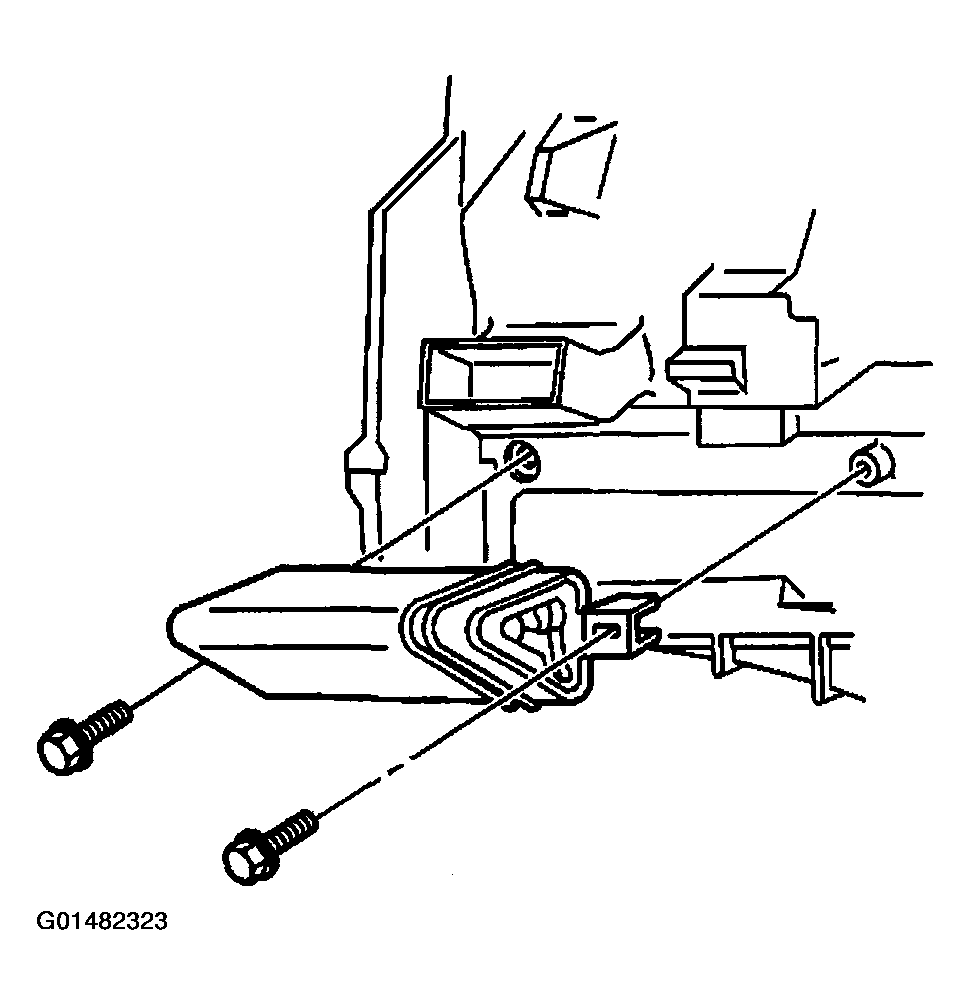

    Fig 1: Installing Vacuum Tank & Screws
    G01482323Courtesy of GENERAL MOTORS CORP.
  3. Connect the vacuum hoses to the vacuum tank.
  4. Install the instrument panel insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT .
    Fig 2: Connecting Vacuum Hoses To Vacuum Tank
    G01482324Courtesy of GENERAL MOTORS CORP.
