Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the right instrument panel insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT .
  2. Remove the instrument panel compartment. Refer to COMPARTMENT REPLACEMENT - INSTRUMENT PANEL (I/P) .
  3. Disconnect the vacuum line from the recirculation actuator.
  4. Lift to release the recirculation actuator retaining tab and slide off mounting bracket.
  5. Disconnect the vacuum actuator plunger rod from the recirculation lever.
  6. Remove the recirculation actuator.

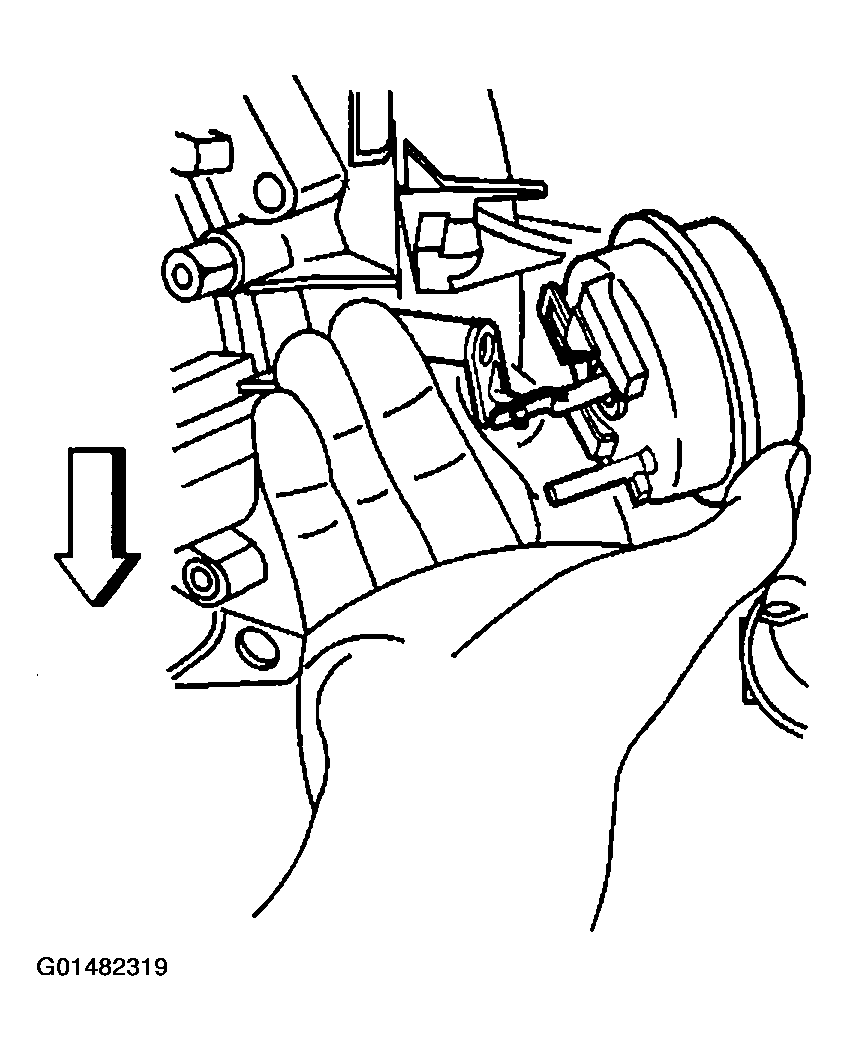

    Fig 1: Disconnecting Vacuum Line From Recirculation Actuator
    G01482319Courtesy of GENERAL MOTORS CORP.
