Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

Connect the actuator pushrod to the mode door lever.

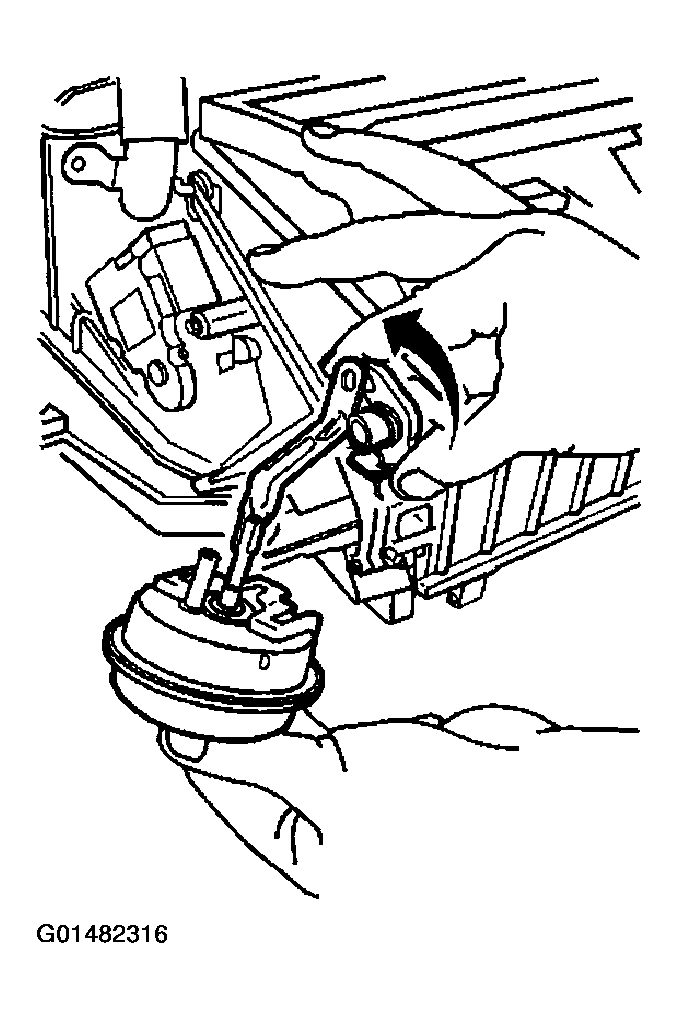

Fig 1: Connecting Actuator Pushrod To Mode Door Lever
Courtesy of GENERAL MOTORS CORP.
Position the mode actuator on to the mounting slides of the HVAC module assembly.

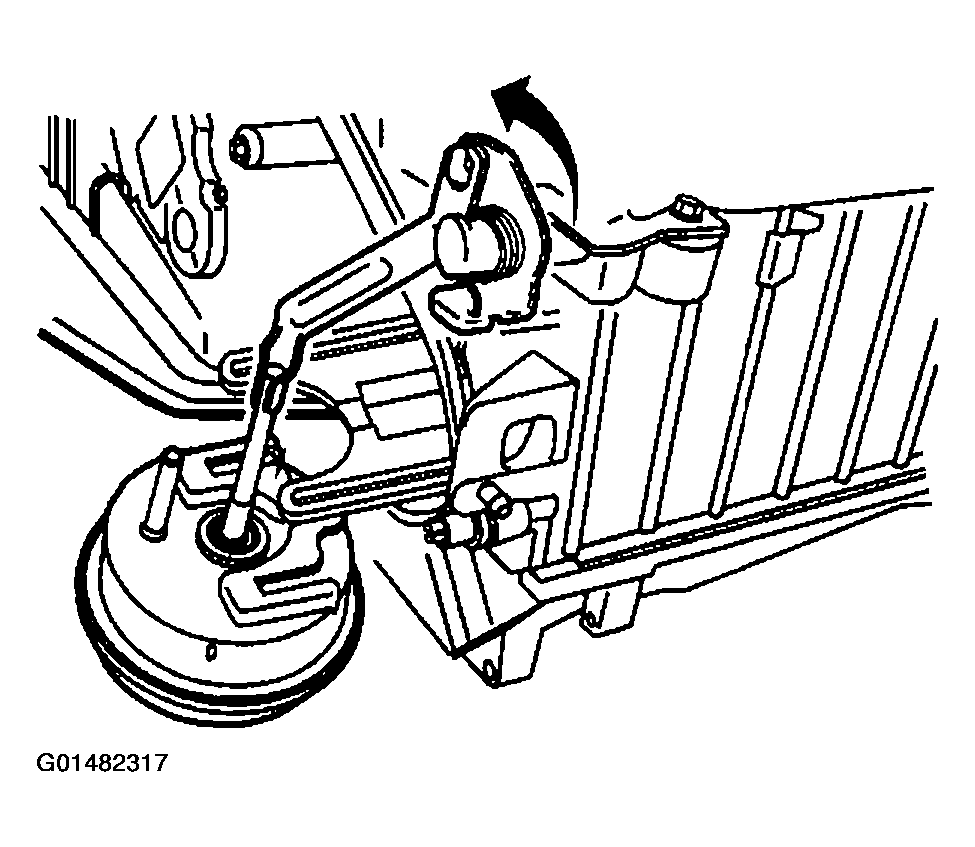

Fig 2: Positioning Mode Actuator On To Mounting Slides Of HVAC Module Assembly
Courtesy of GENERAL MOTORS CORP.
Ensure that the lock tab (1) locks the mode actuator.
Connect the vacuum lines to the mode actuator.
Install the instrument panel knee bolster bracket. Refer to KNEE BOLSTER REPLACEMENT .
Install the left instrument panel insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT .

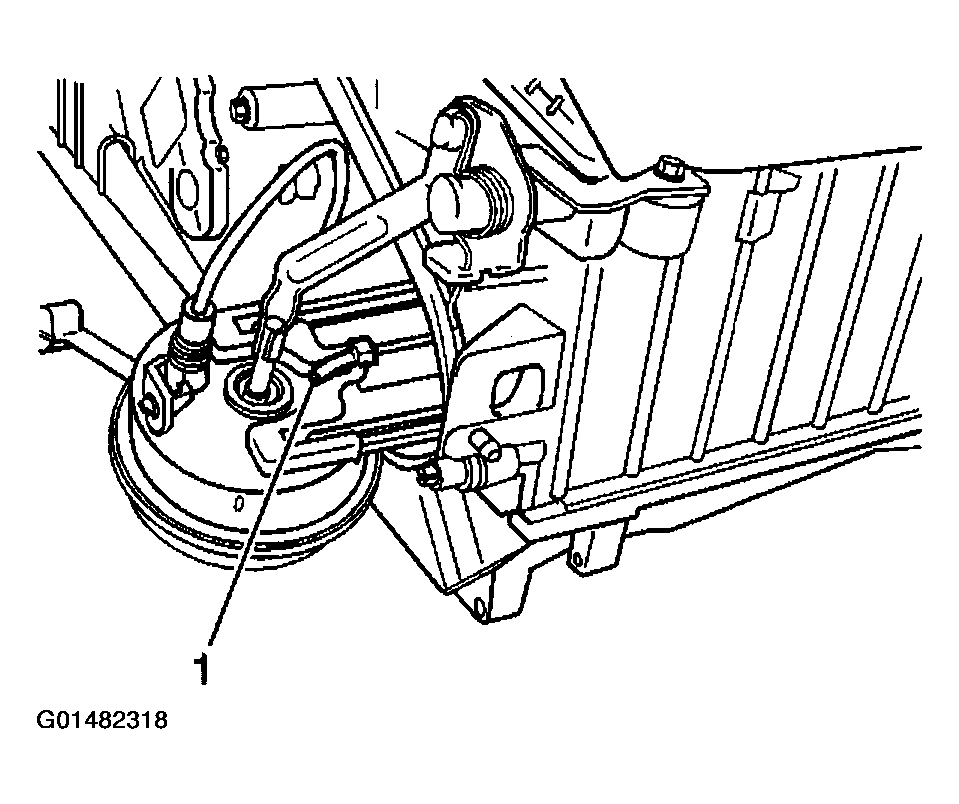

Fig 3: Identifying Lock Tab
Courtesy of GENERAL MOTORS CORP.
