Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the defroster actuator to the defroster door arm and snap into place on the HVAC module.
  2. Connect the vacuum line to the actuator.
  3. Remove the hand vacuum pump (2) and reinstall the vacuum line to the recirculation actuator.
  4. Install the IP compartment. Refer to COMPARTMENT REPLACEMENT - INSTRUMENT PANEL (I/P) .
  5. Install the right instrument insulator panel. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT .

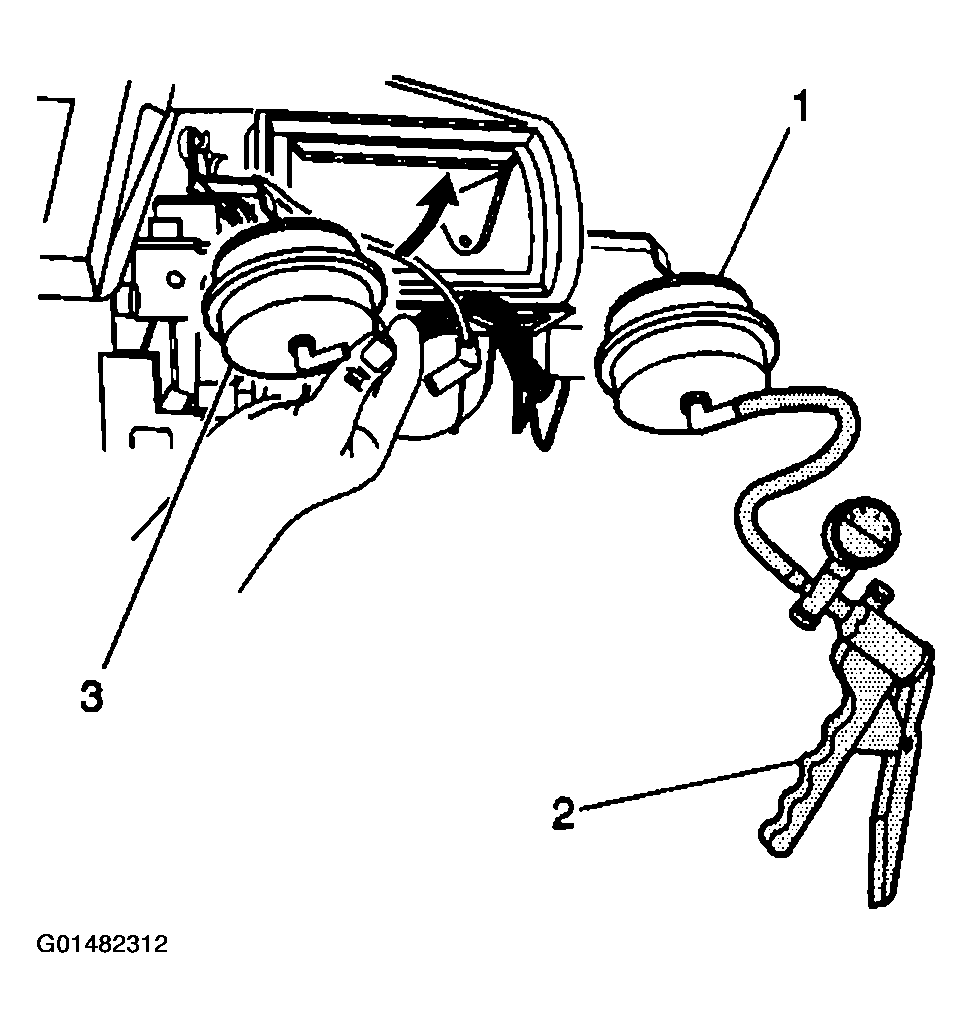

    Fig 1: Connecting Vacuum Line To Actuator
    G01482312Courtesy of GENERAL MOTORS CORP.
