Installation Procedure

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the right air temperature actuator, then align the slots in the electric actuator driver to the flats on the shaft.
  2. Align the locating hole to the alignment pin on the HVAC module case.
  3. Slide the actuator driver on the shaft. The actuator driver should set completely on the shaft and he mounting holes should be flush with the mounting screws on the HVAC module case.
    NOTE: Refer to FASTENER NOTICE .
  4. Install the screws to the right air temperature actuator.

    Tighten

    Tighten the screw to 1.5 N.m (13 lb in).

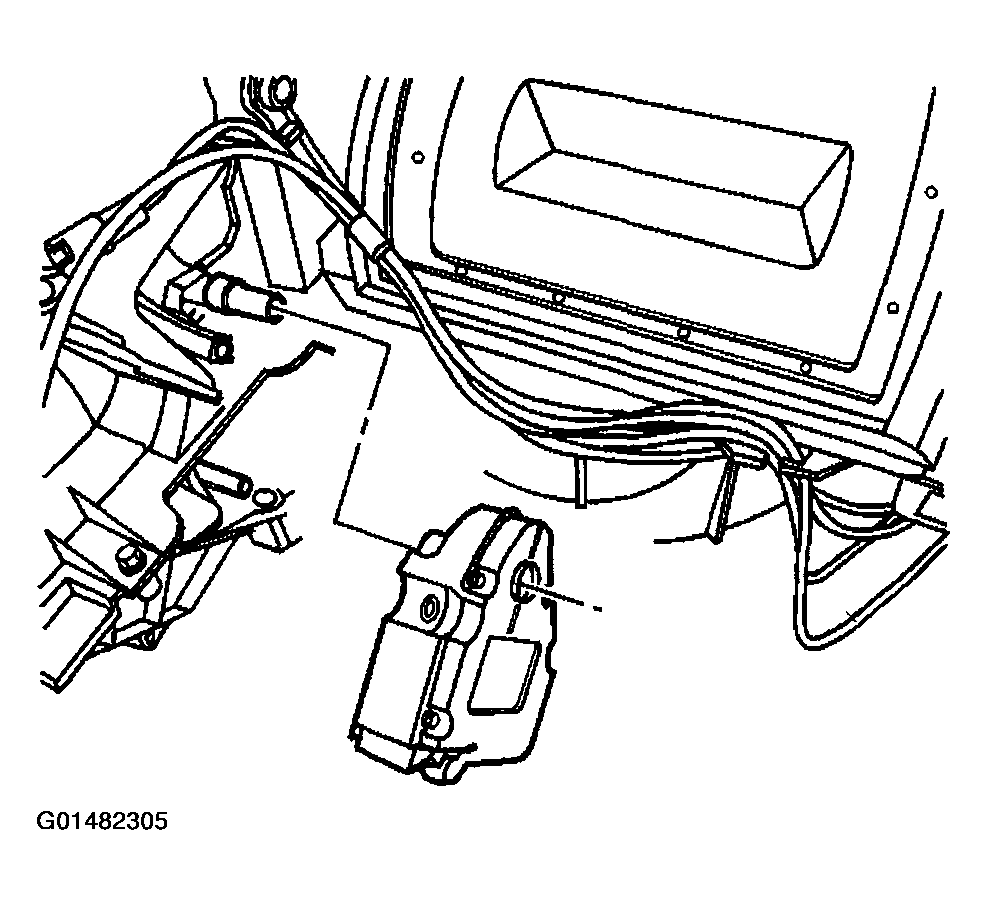

    Fig 1: Installing Right Electric Temperature Actuator
    G01482305Courtesy of GENERAL MOTORS CORP.
  5. Connect the electrical connector to the right air temperature actuator.
  6. Install the instrument panel compartment. Refer to COMPARTMENT REPLACEMENT - INSTRUMENT PANEL (I/P) .
  7. Install the right side instrument panel insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - RIGHT .

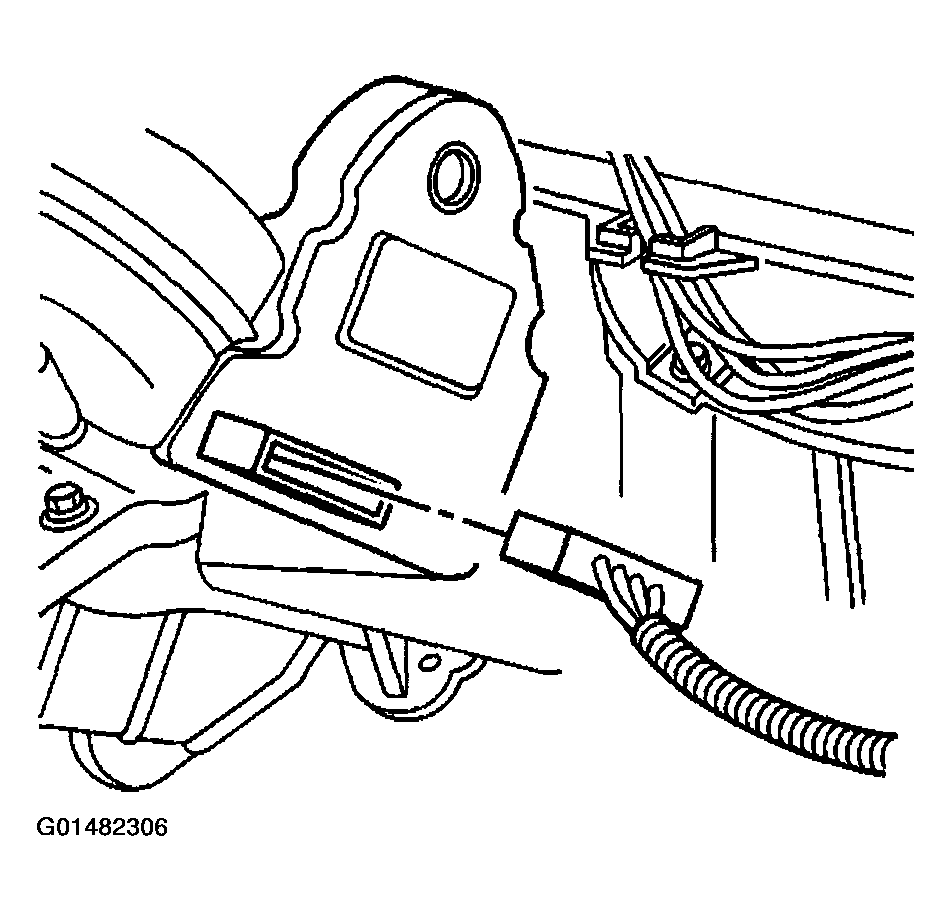

    Fig 2: Connecting Electrical Connector To Right Air Temperature Actuator
    G01482306Courtesy of GENERAL MOTORS CORP.
