Engine Order Related Disturbances

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

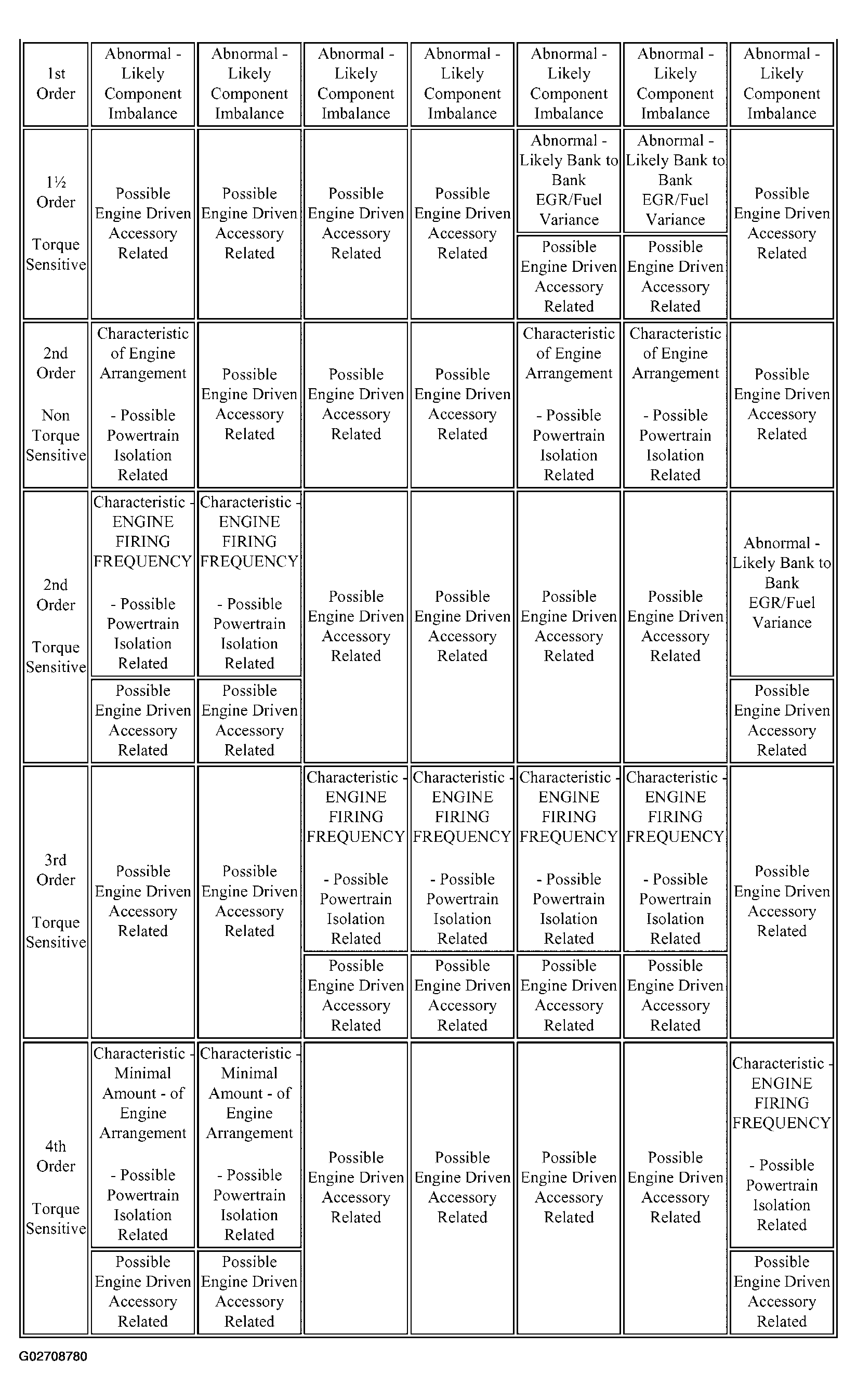

Fig 1: Engine Order Related Disturbances Table
G02708780Courtesy of GENERAL MOTORS CORP.
