Vehicle Jacking

WARNING: This page is about a different car, the 2003 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Positioning Floor Jack Lift Pad At Center Of Front Frame

Courtesy of GENERAL MOTORS CORP.

When lifting the front of the vehicle with a floor jack, place the floor jack lift pad at the center of the front frame.

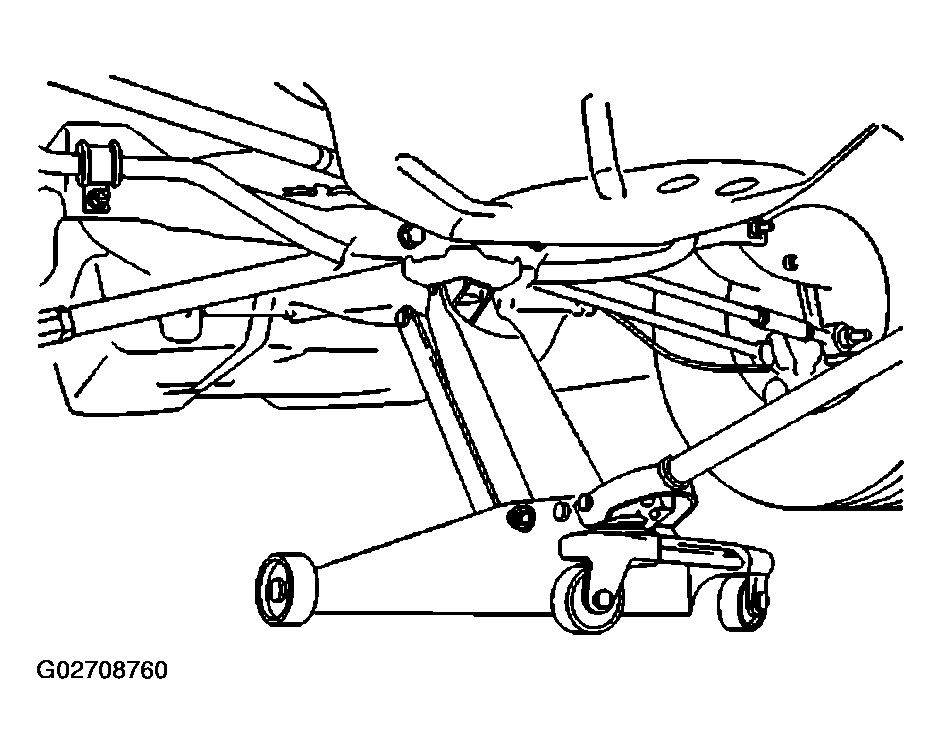

Fig 2: Positioning Floor Jack Lift Pad At Center Of Rear Suspension

Courtesy of GENERAL MOTORS CORP.

Lift the rear of the vehicle by placing the floor jack lift pad at the center of the rear suspension.
