Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sonoma and 2002 Chevrolet S10 Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to LIFTING & JACKING THE VEHICLE in General Information.
  2. Disconnect the vehicle speed sensor electrical connector.
  3. Remove the vehicle speed sensor retaining bolt.
  4. Remove the vehicle speed sensor.

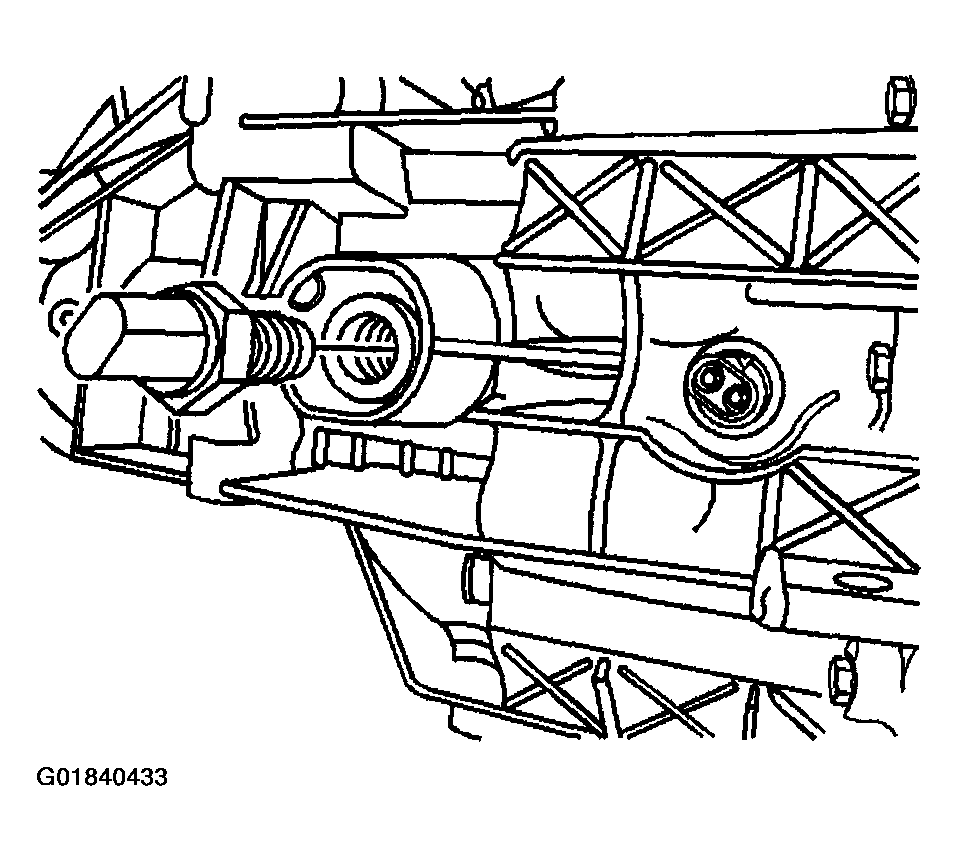

    Fig 1: Removing Vehicle Speed Sensor
    G01840433Courtesy of GENERAL MOTORS CORP.
