Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Sonoma and 2002 Chevrolet S10 Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the new O-ring seal to the vehicle speed sensor.
  2. Coat the new O-ring seal with a thin film of transmission fluid.
  3. Install the vehicle speed sensor.
  4. Install the vehicle speed sensor retaining bolt.

    Tighten

    Tighten the vehicle speed sensor retaining bolt to 16 N.m (12 lb ft).

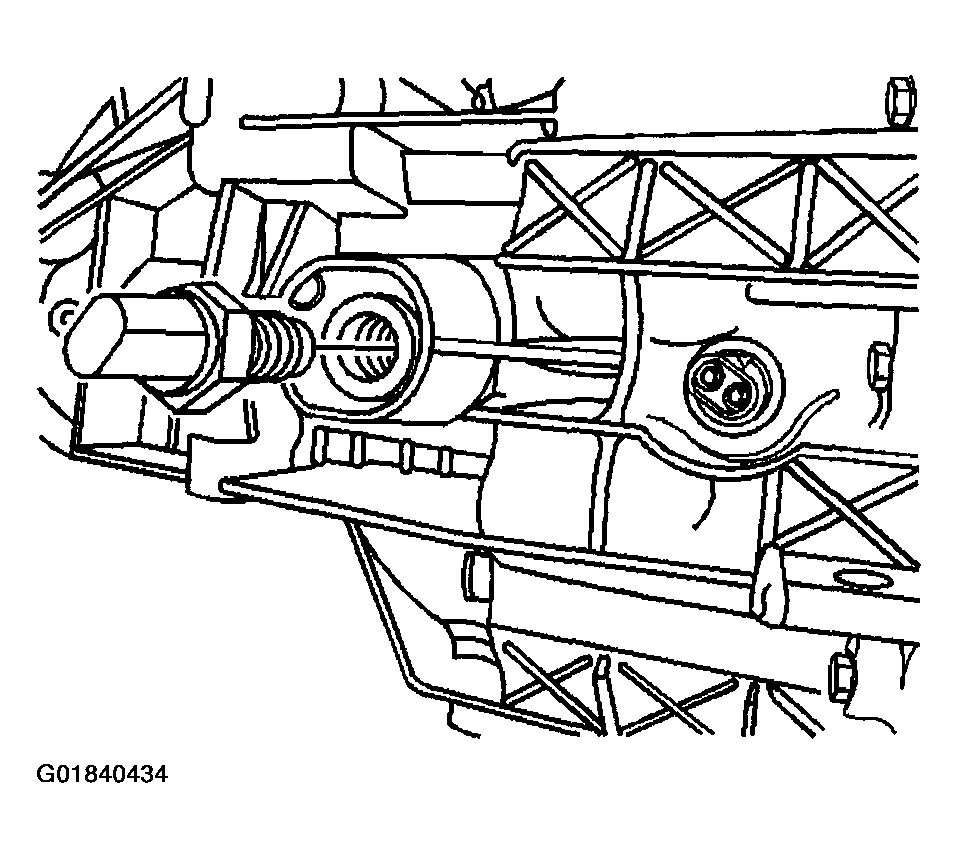

    Fig 1: Installing Vehicle Speed Sensor
    G01840434Courtesy of GENERAL MOTORS CORP.
  5. Connect the vehicle speed sensor electrical connector.
  6. Lower the vehicle.
