Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Sonoma and 2002 Chevrolet S10 Pickup. However, it is still accessible from the selected car via links, so may be relevant.

Apply sealant to the oil drain plug threads. Use Teflon® GM P/N 1052080, or the equivalent.

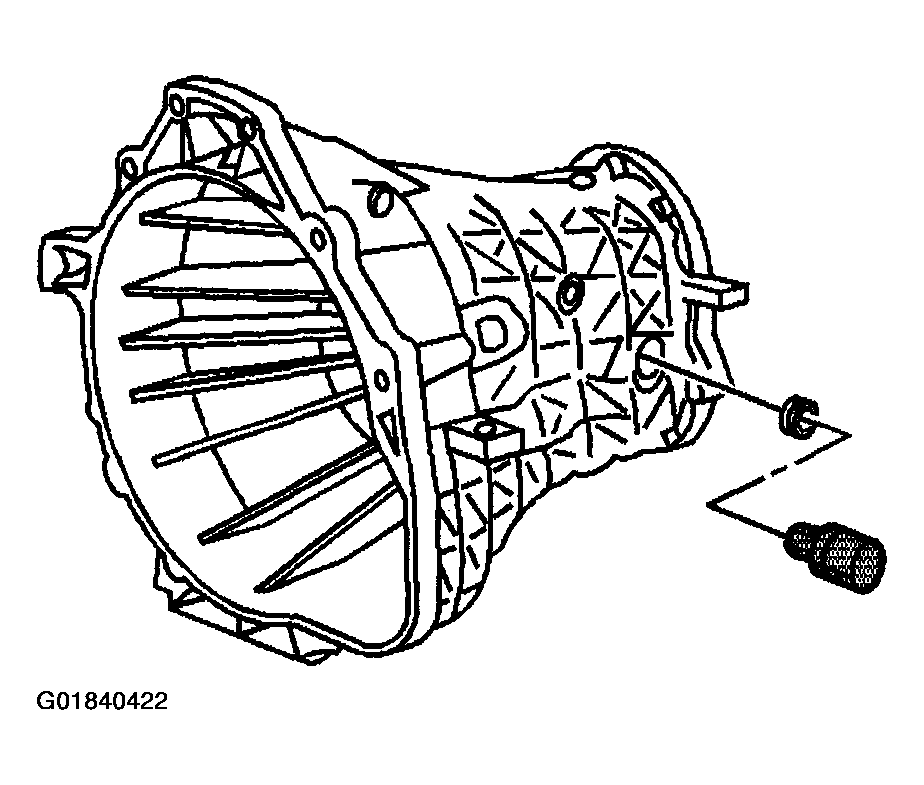

Fig 1: Applying Sealant To Oil Drain Plug Threads
Courtesy of GENERAL MOTORS CORP.
Use the J 36511 in order to install the oil drain plug.
Tighten

Tighten the oil drain plug to 30 N.m (22 lb ft).

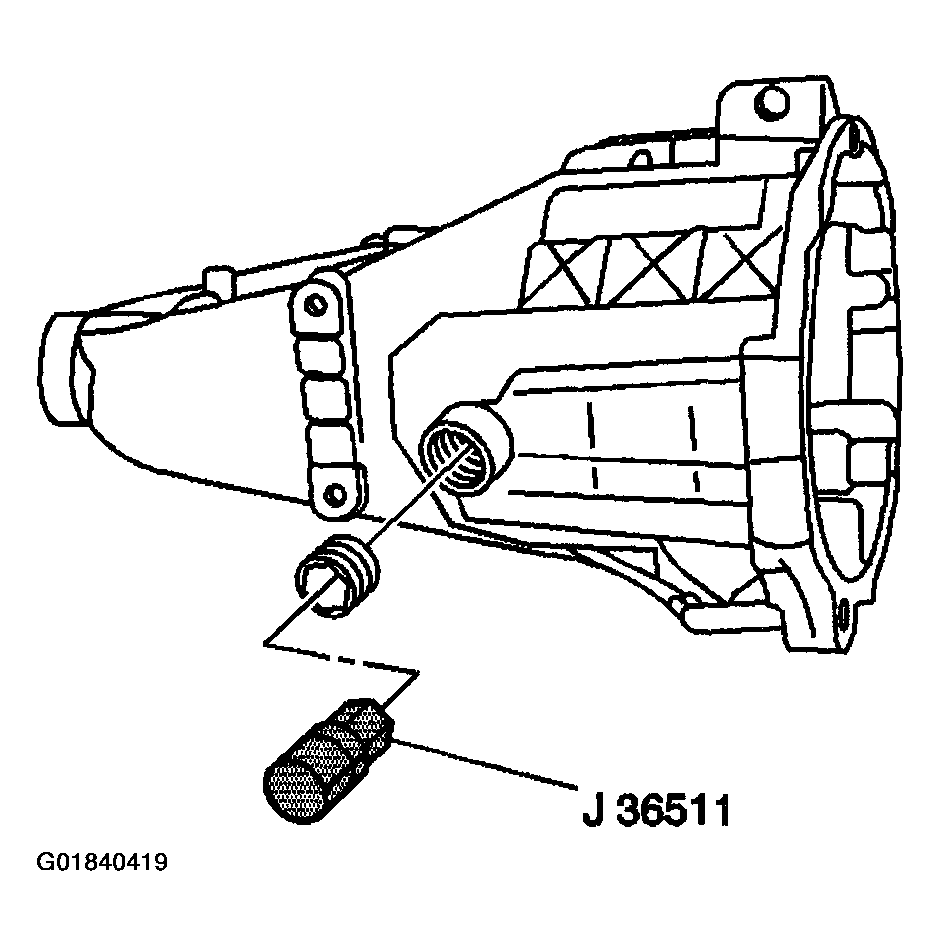

Fig 2: Installing Oil Drain Plug
Courtesy of GENERAL MOTORS CORP.
Fill the transmission to the level of the fill plug hole. Refer to LUBRICATION SPECIFICATIONS .

Fig 3: Identifying Transmission Fluid Level
Courtesy of GENERAL MOTORS CORP.
Apply sealant to the oil fill plug threads. Use Teflon® GM P/N 1052080 or the equivalent.

Fig 4: Applying Sealant To Oil Fill Plug Threads
Courtesy of GENERAL MOTORS CORP.
Use the J 36511 in order to install the oil fill plug.
Tighten

Tighten the oil fill plug to 30 N.m (22 lb ft).

Fig 5: Tightening Oil Fill Plug
Courtesy of GENERAL MOTORS CORP.
Remove the safety stands.
Lower the vehicle.
