Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sonoma and 2002 Chevrolet S10 Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the shift lever from the shift tower.

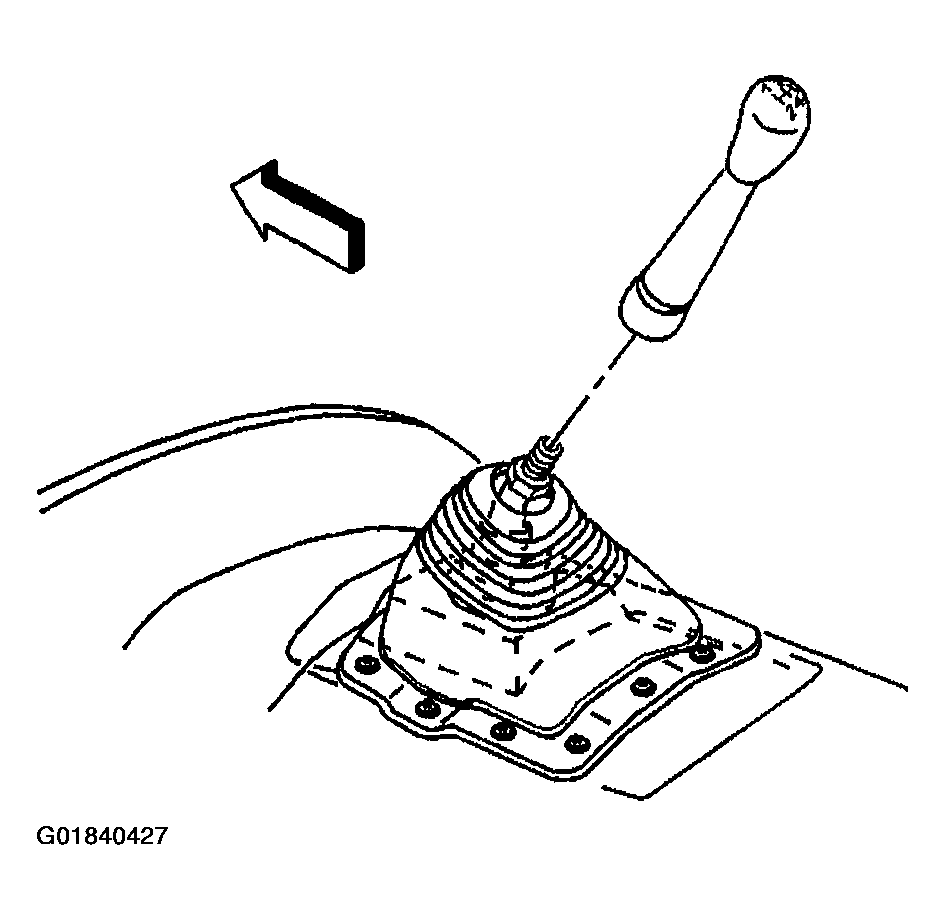

    Fig 1: Removing Shift Lever From Shift Tower
    G01840427Courtesy of GENERAL MOTORS CORP.
  2. Pull back the carpet to access the screws.
  3. Remove the screws securing the boot to the panel.

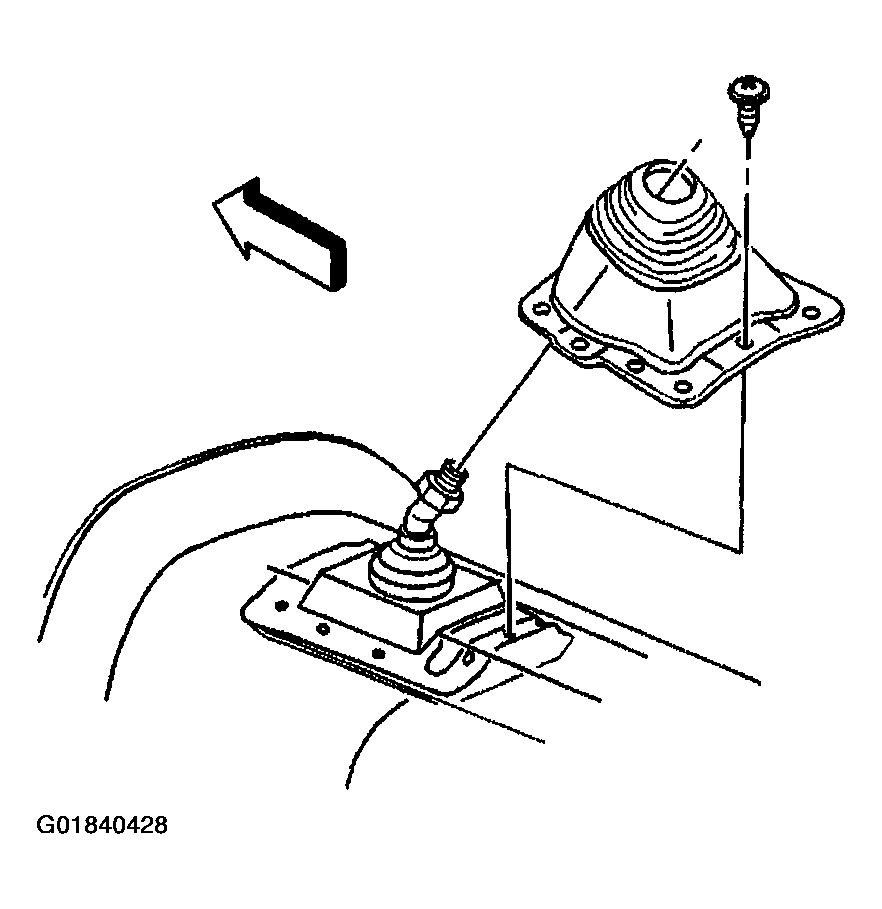

    Fig 2: Removing Console & Console Nuts
    G01840428Courtesy of GENERAL MOTORS CORP.
  4. Remove the 4 bolts securing the shift housing to the transmission.

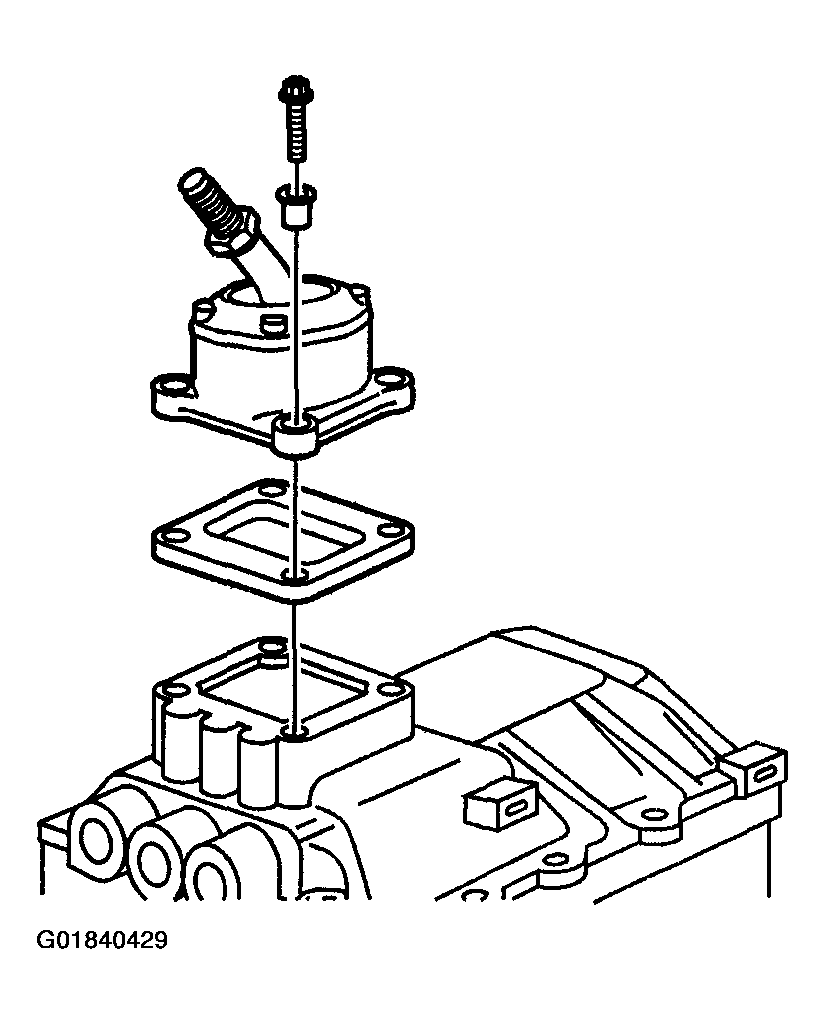

    Fig 3: Removing Bolts Securing Shift Housing To Transmission
    G01840429Courtesy of GENERAL MOTORS CORP.
  5. Remove the shift housing.
