Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Sonoma and 2002 Chevrolet S10 Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the shift housing to the transmission case.
  2. Install the 4 bolts securing the shift housing to the transmission.

    Tighten

    Tighten the shift housing bolts to 20 N.m (15 lb ft).

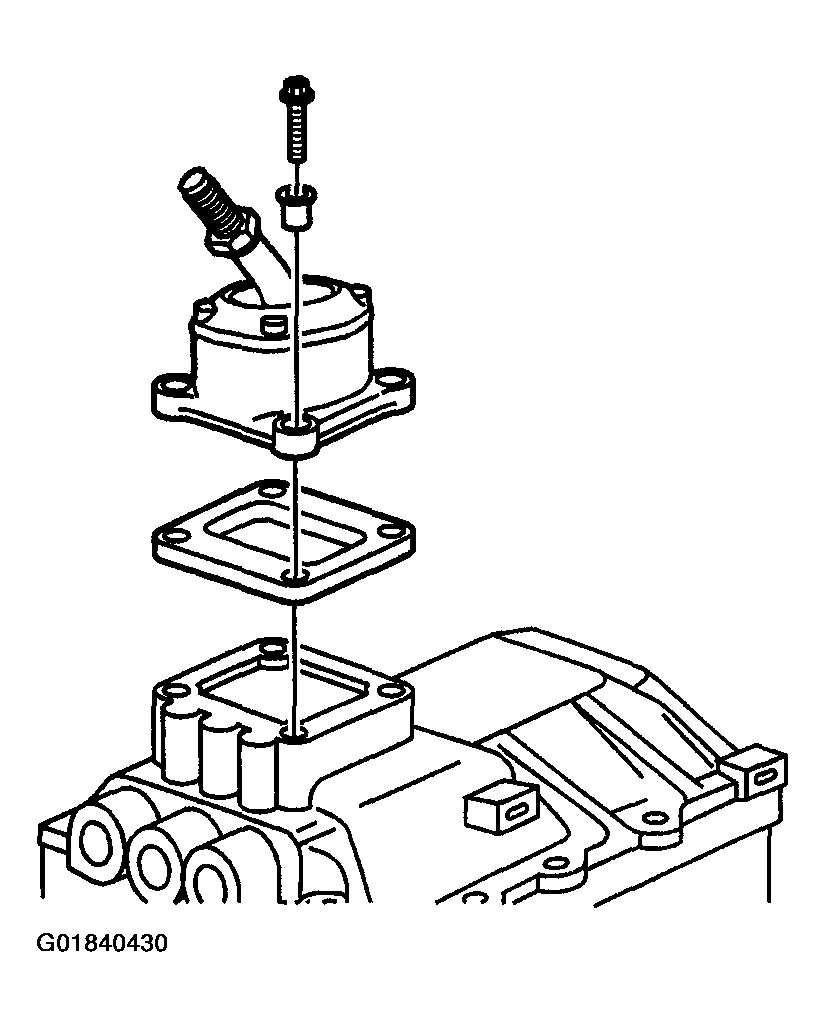

    Fig 1: Installing Shift Housing-To-Transmission Bolts
    G01840430Courtesy of GENERAL MOTORS CORP.
  3. Install the screws securing the boot to the panel.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

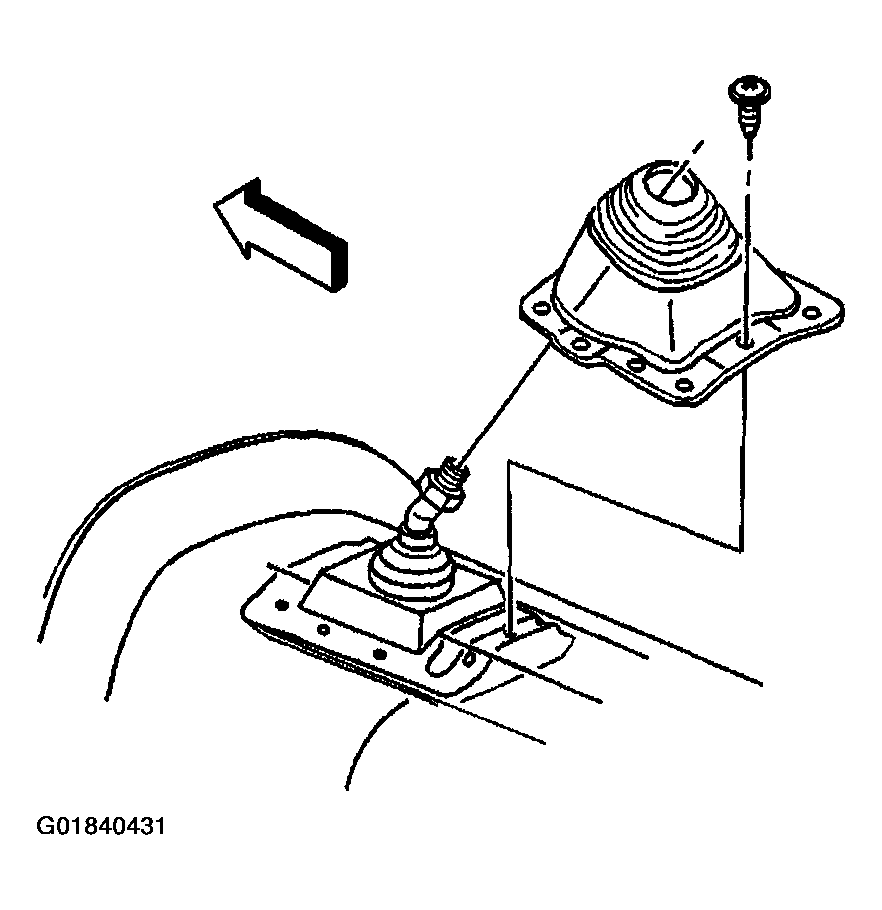

    Fig 2: Installing Boot-To-Panel Screws
    G01840431Courtesy of GENERAL MOTORS CORP.
  4. Install the shift lever to the Shift tower housing.
  5. Install the console and the 3 console nuts (If equipped).

    Tighten

    Tighten the nuts to 2 N.m (18 lb in).

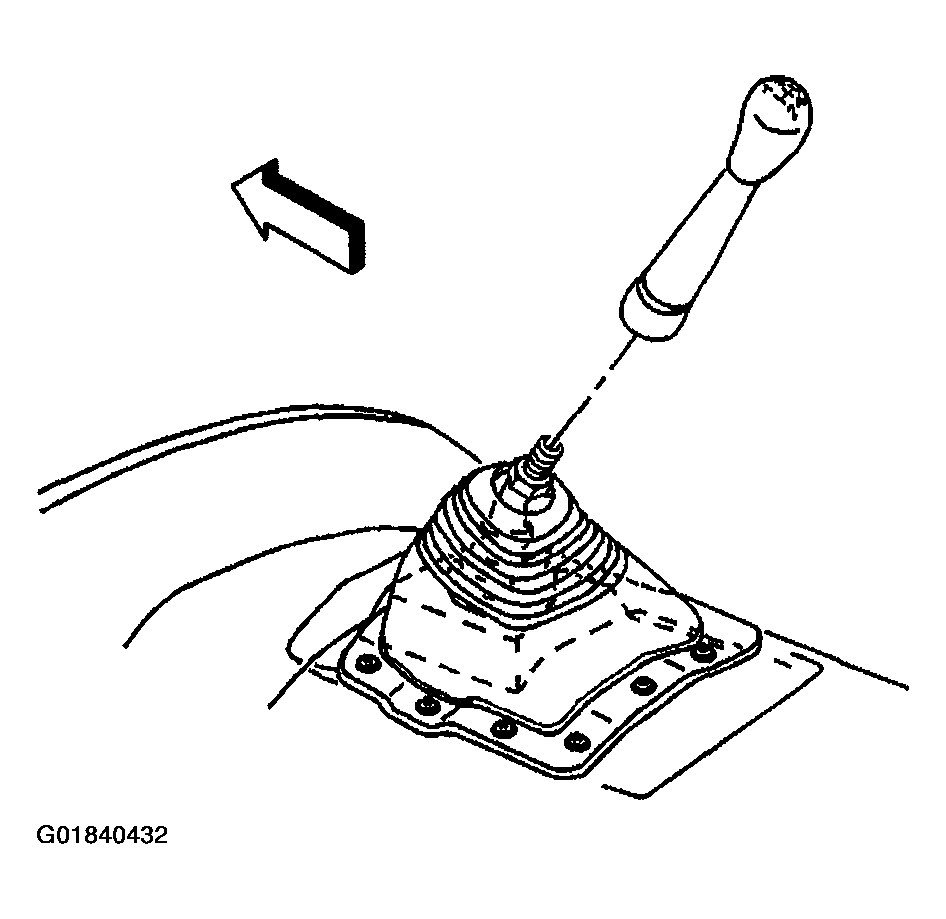

    Fig 3: Installing Console & Console Nuts
    G01840432Courtesy of GENERAL MOTORS CORP.
