Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sonoma and 2002 Chevrolet S10 Pickup. However, it is still accessible from the selected car via links, so may be relevant.

If equipped remove the 3 console nuts and the console.
Remove the shift lever from the shift tower. Do not remove the shift lever adjusting nut.

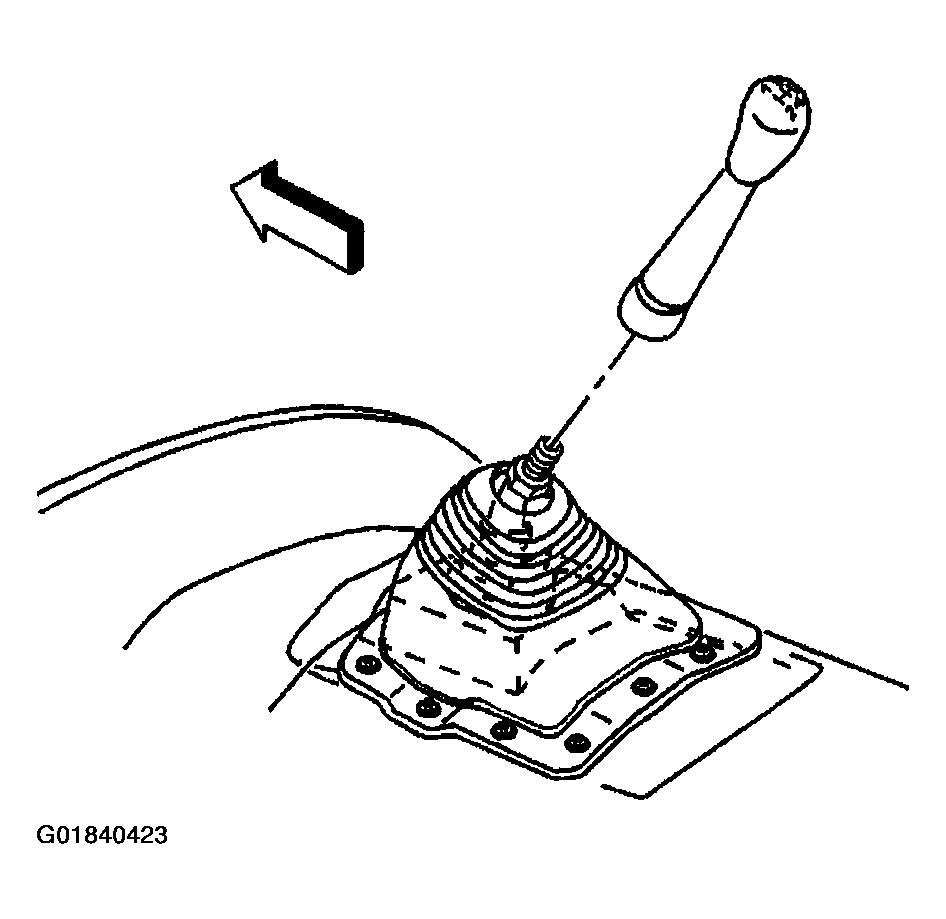

Fig 1: Removing Shift Lever From Shift Tower
Courtesy of GENERAL MOTORS CORP.
Pull back the carpet to access the screws.
Remove the screws securing the boot to the panel.

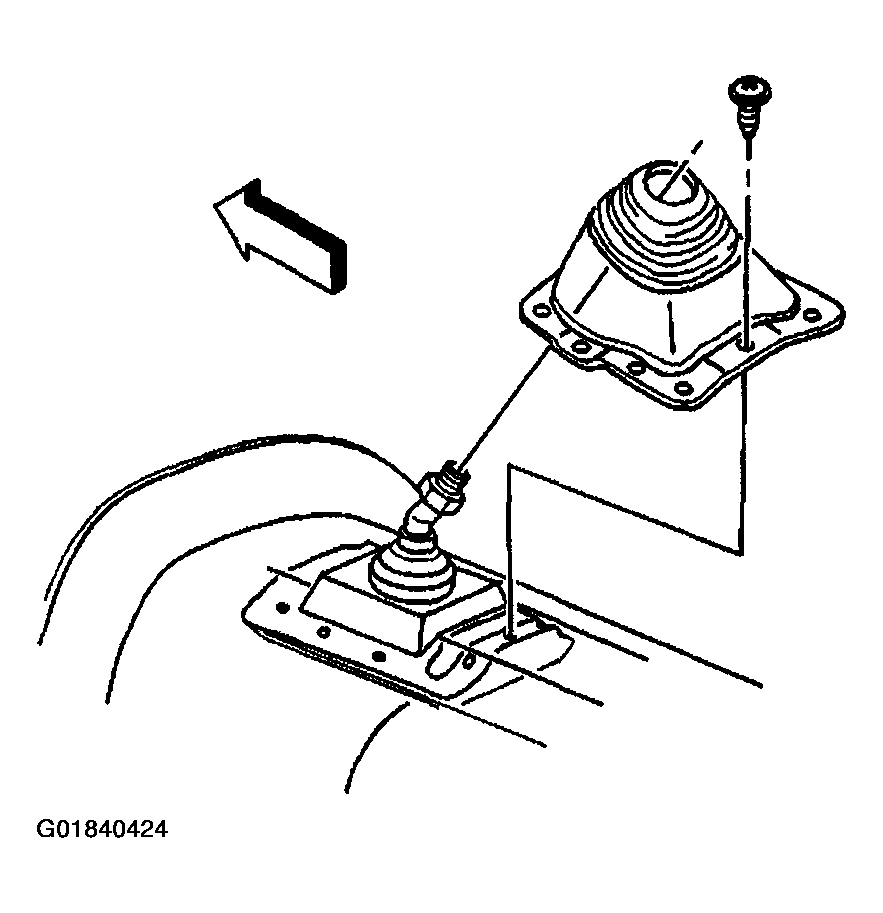

Fig 2: Removing Screws Securing Boot To Panel
Courtesy of GENERAL MOTORS CORP.
