Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Sonoma and 2002 Chevrolet S10 Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the boot over the shift tower.
  2. Install the shift boot screws.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

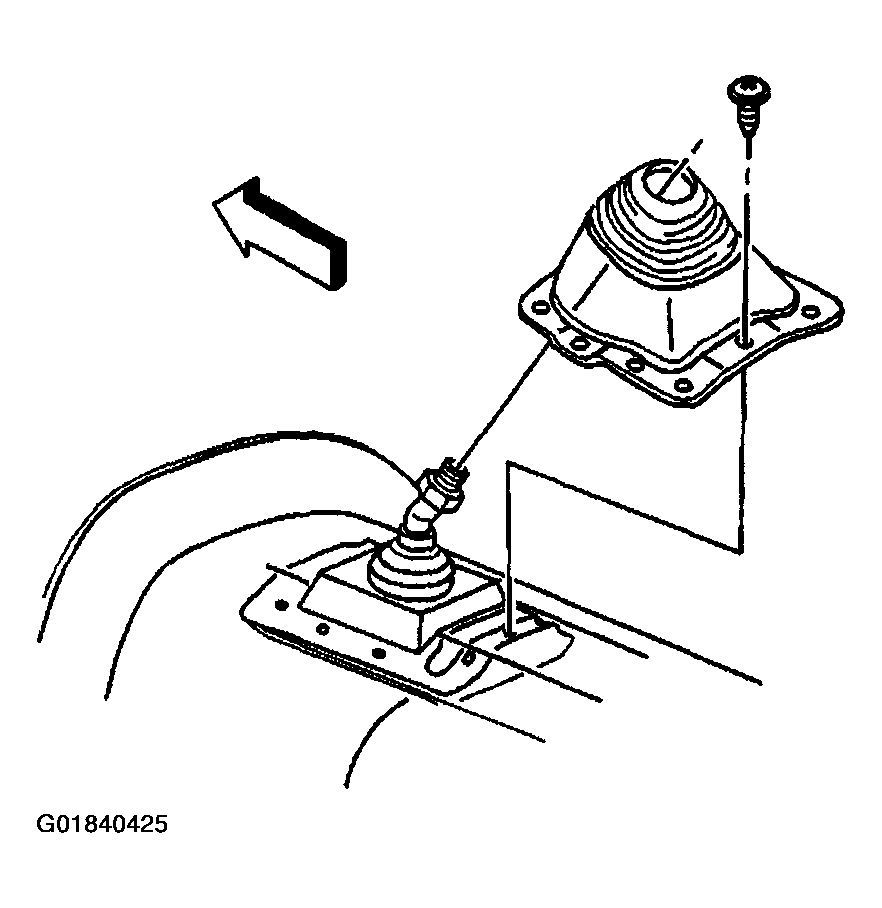

    Fig 1: Installing Shift Boot Screws
    G01840425Courtesy of GENERAL MOTORS CORP.
  3. Install the shift lever to the shift tower. If required, center the shift lever with the adjusting nut.

    Tighten

    Tighten the adjusting nut to 48 N.m (35 lb ft).

  4. If equipped, install the console and the 3 console nuts.

    Tighten

    Tighten the nuts to 2 N.m (18 lb in).

    Fig 2: Installing Console & Console Nuts
    G01840426Courtesy of GENERAL MOTORS CORP.
