Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sonoma and 2002 Chevrolet S10 Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to LIFTING & JACKING THE VEHICLE in General Information.
  2. Support the vehicle with safety stands.
  3. Disconnect the backup lamp switch electrical connector.
  4. Remove the backup lamp switch.

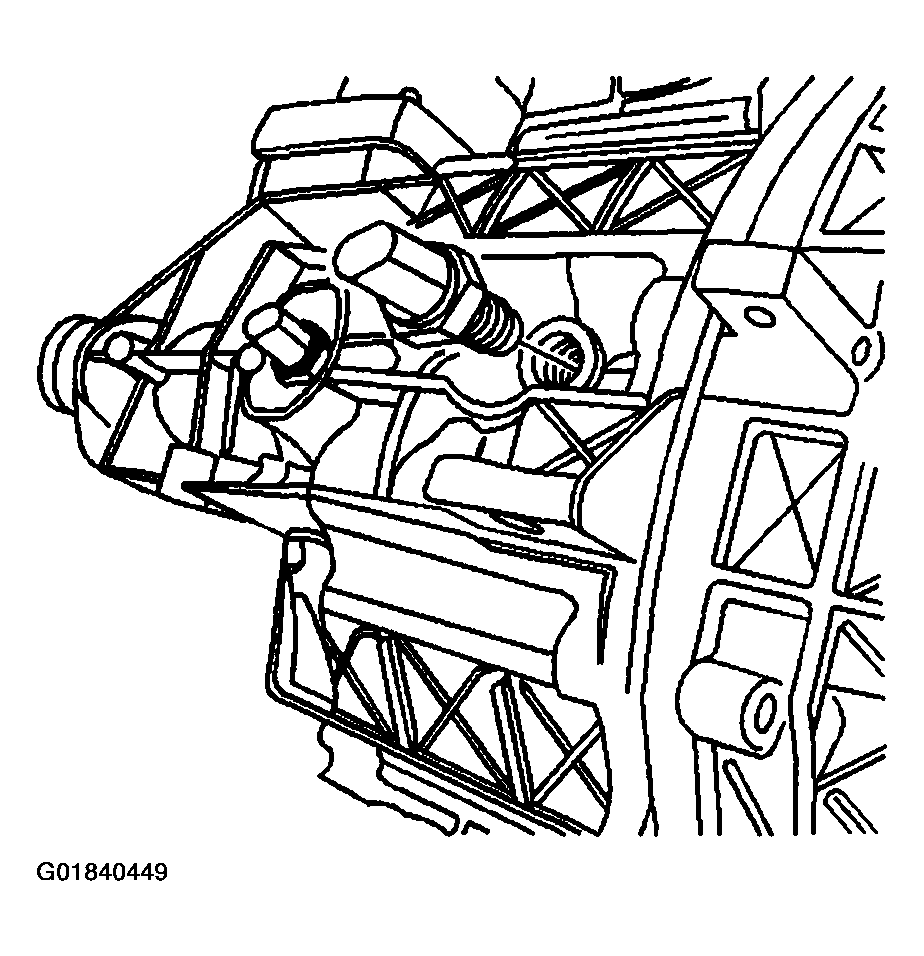

    Fig 1: Removing Backup Lamp Switch
    G01840449Courtesy of GENERAL MOTORS CORP.
