Installation Procedure

WARNING: This page is about a different car, the 2002 GMC Sonoma and 2002 Chevrolet S10 Pickup. However, it is still accessible from the selected car via links, so may be relevant.

Install the backup lamp switch.
The backup lamp switch has pre-applied thread sealant on the threads.

Tighten

Tighten the backup lamp switch to 37 N.m (28 lb ft).

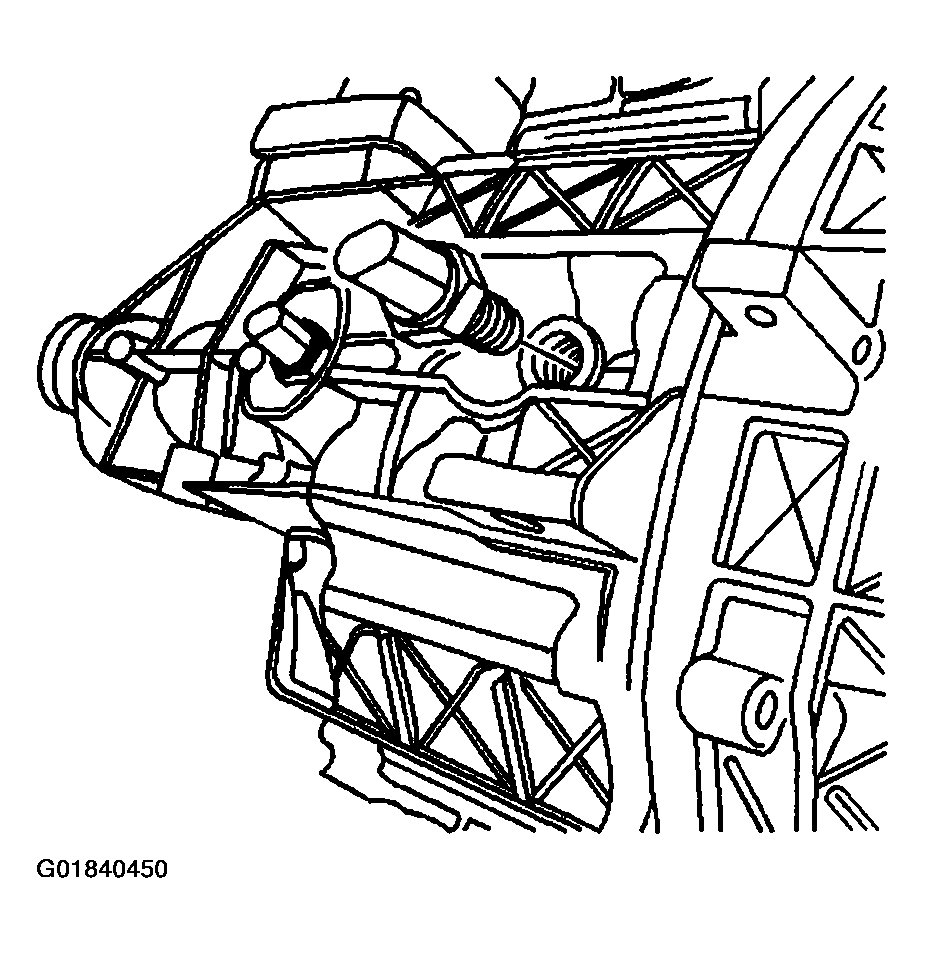

Fig 1: Installing Backup Lamp Switch
Courtesy of GENERAL MOTORS CORP.
Connect the backup lamp switch electrical connector.
Lower the vehicle.
