Test Description

WARNING: This page is about a different car, the 2002 GMC Sonoma and 2002 Chevrolet S10 Pickup. However, it is still accessible from the selected car via links, so may be relevant.

The number below refers to the step number on the diagnostic table. See Fig 1.

5

This step inspects the driveline components that may be the cause of the clunk noise. The noise may resonate to the transmission.

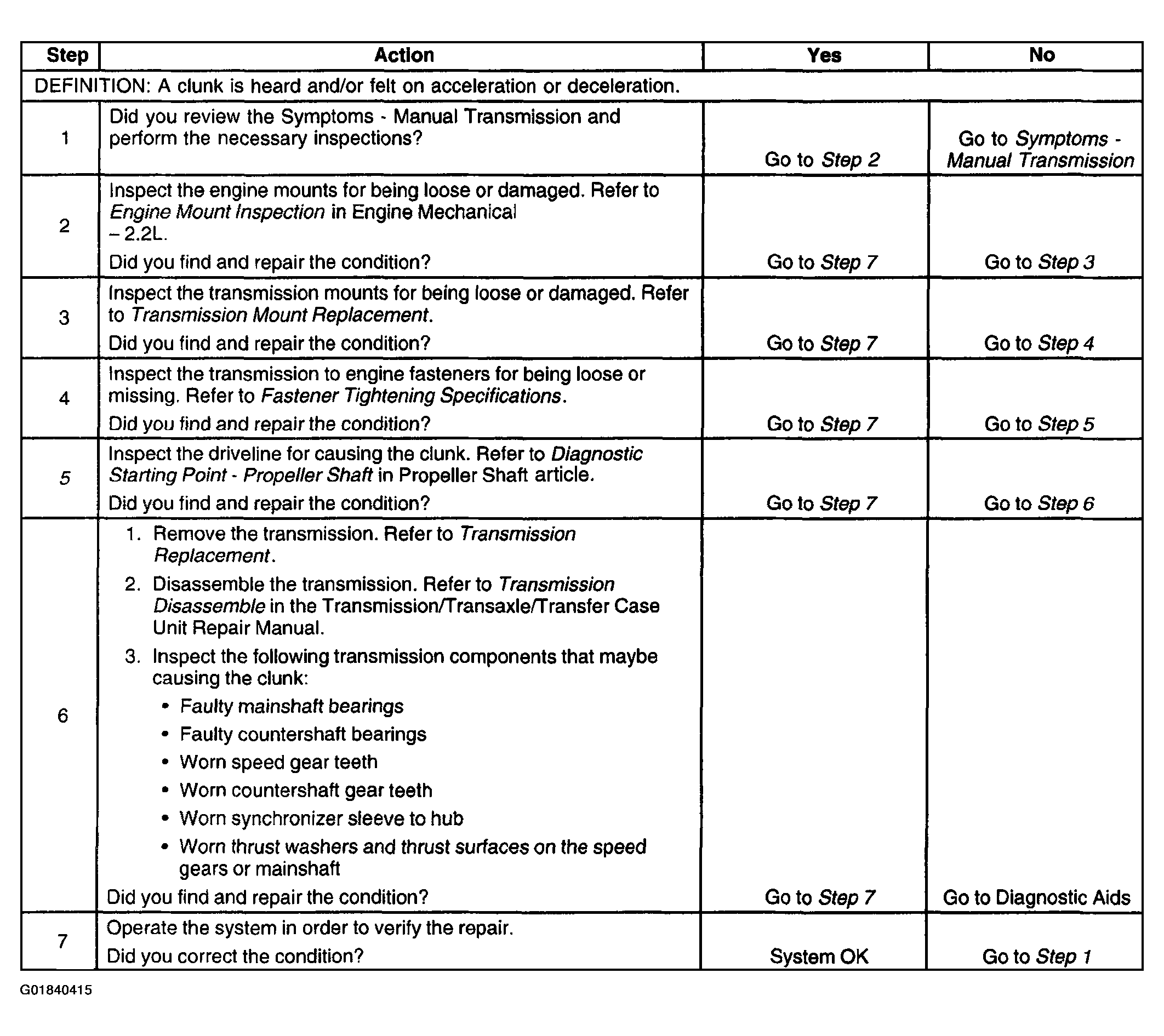

Fig 1: Clunk On Acceleration Or Deceleration (Steps 1-7)
Courtesy of GENERAL MOTORS CORP.
