Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: The tilt spring and the spring guide are under pressure. The tilt spring and the spring guide may become a projectile. Secure the spring with locking pliers during removal. Secure the spring with locking pliers during installation. Bodily injury may result during removal and installation of the tilt spring and the spring guide. Always use caution during removal and installation of the tilt spring and the spring guide.
  1. Use the tilt lever to tilt the column to the UP position.
  2. Remove the steering column trim covers. Refer to Steering Column Trim Covers Replacement - On Vehicle .

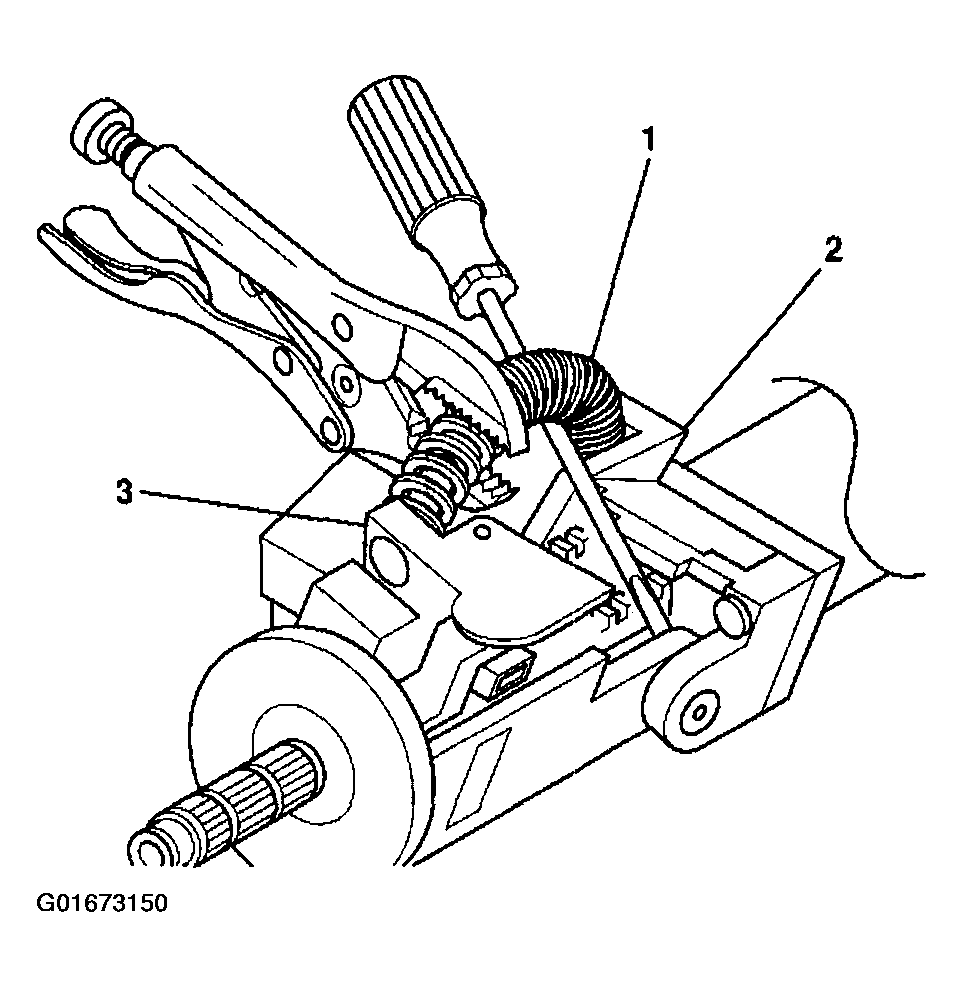

    Fig 1: Removing Tilt Spring
    G01673150Courtesy of GENERAL MOTORS CORP.
  3. Remove the tilt spring (1) in the following manner:
    1. 3.1. Pry the tilt spring up until a bulge occurs and most of the tilt spring tension is removed.
    2. 3.2. Secure the tilt spring with locking pliers and continue prying until the tilt spring disengages from the post of the steering column support assembly (3).
  4. Remove the spring guide (1) from the tilt spring (2).
    Fig 2: Removing Spring Guide From Tilt Spring
    G01673151Courtesy of GENERAL MOTORS CORP.
