Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lubricate the tilt spring (2) with synthetic grease.
  2. Install the spring guide (1) into the tilt spring (2).
    Fig 1: Installing Spring Guide Into Tilt Spring
    G01673152Courtesy of GENERAL MOTORS CORP.
  3. Install the tilt spring (1).
    1. 3.1. Install the tilt spring (1) to the post on the steering column support assembly (2).
    2. 3.2. Secure the tilt spring (1) with locking pliers.
  4. Install the steering column trim covers. Refer to Steering Column Trim Covers Replacement - On Vehicle .

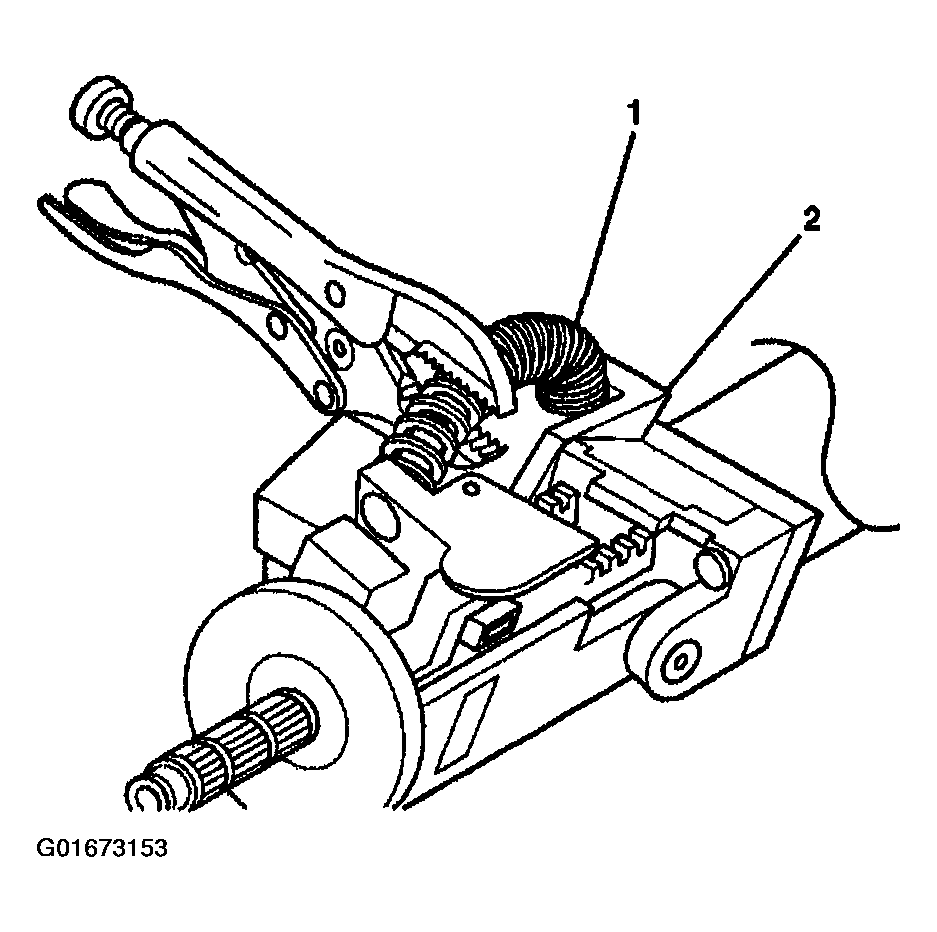

    Fig 2: Installing Tilt Spring
    G01673153Courtesy of GENERAL MOTORS CORP.
