Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the upper trim cover (2) onto the steering column.
    NOTE: Refer to FASTENER NOTICE .
  2. Screw the 2 TORX® head screws (1) into the upper trim cover (2).

    Tighten

    Tighten the 2 TORX® head screws to 1.5 N.m (13 lb in).

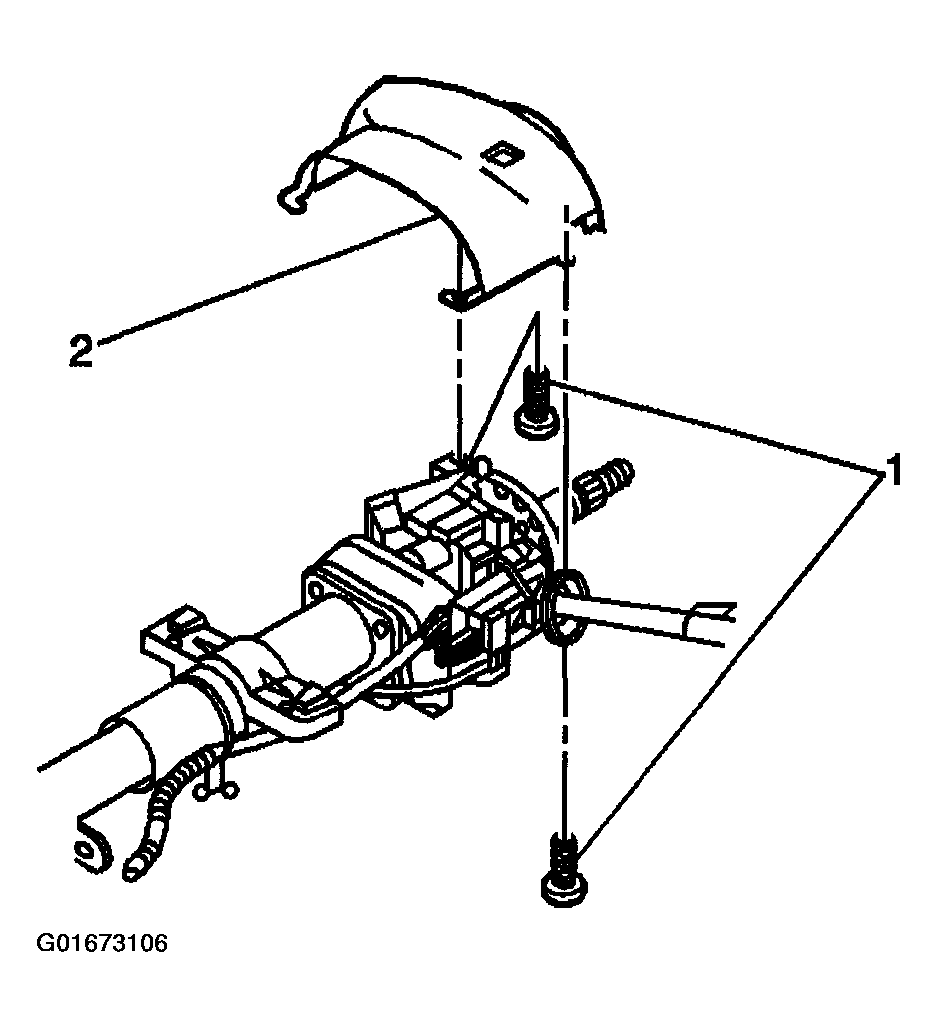

    Fig 1: Installing Upper Trim Cover
    G01673106Courtesy of GENERAL MOTORS CORP.
  3. Install the lower trim cover onto the upper trim cover.
  4. Match the tab slots on the lower trim cover with the locking tabs on the upper trim cover.
  5. Tilt the lower trim cover up.
  6. Slide the lower trim cover forward until the locking tabs snap into the tab slots.

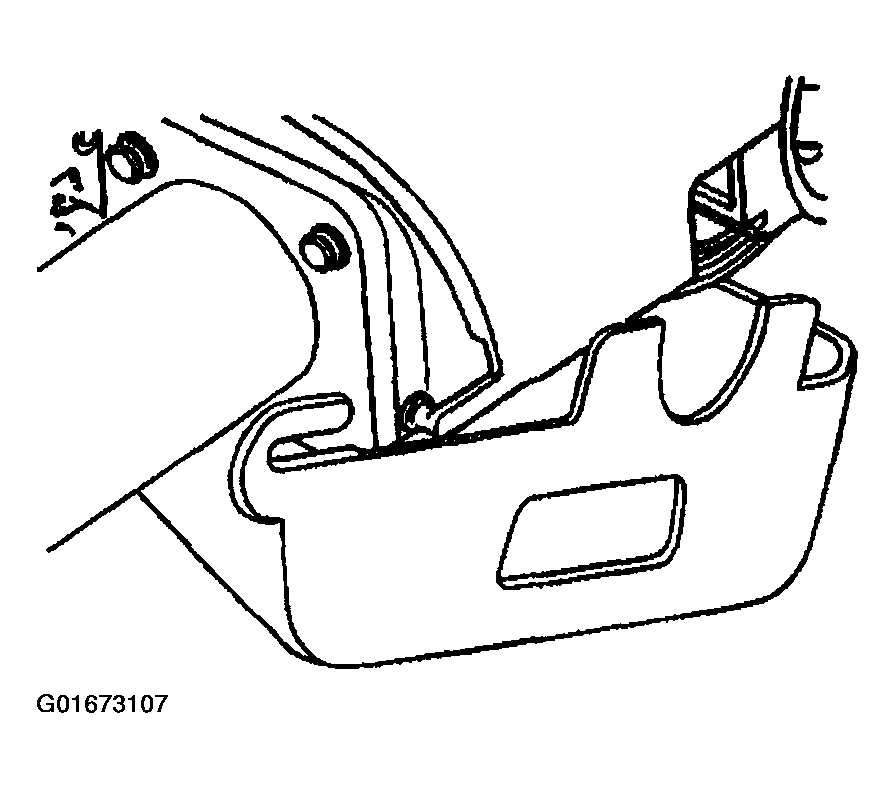

    Fig 2: Installing Lower Trim Cover
    G01673107Courtesy of GENERAL MOTORS CORP.
  7. Screw the 2 TORX® head screws (1) into the lower trim cover (2).

    Tighten

    Tighten the 2 TORX® head screws to 3.5 N.m (31 lb in).

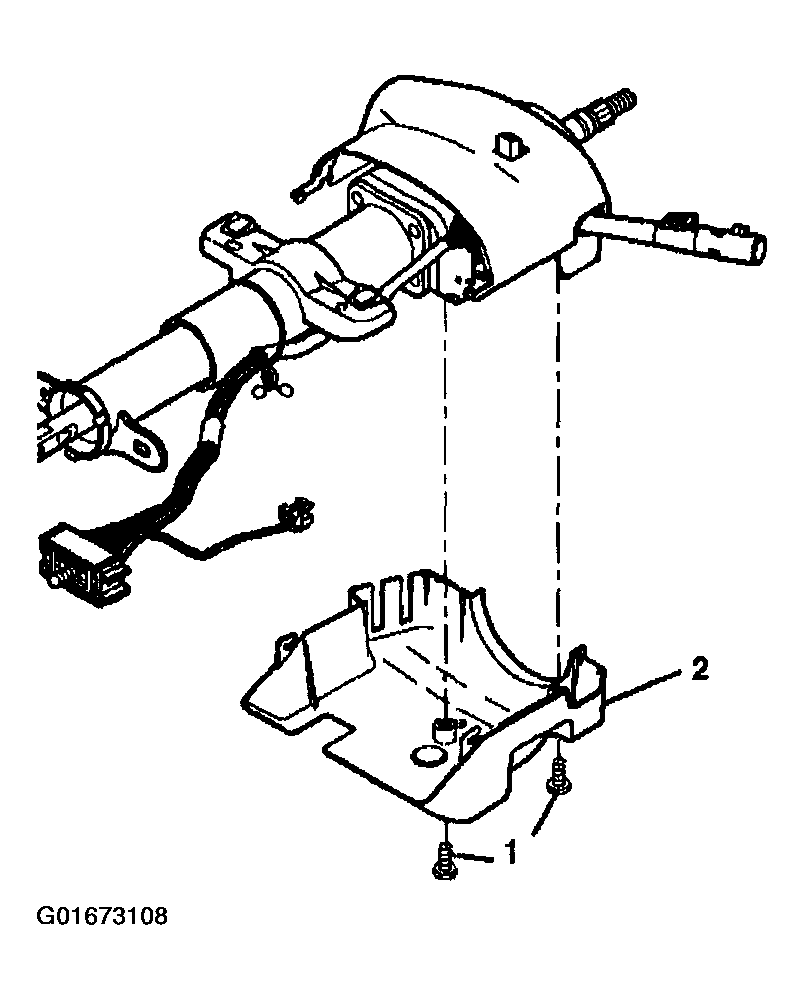

    Fig 3: Installing TORX® Head Screws
    G01673108Courtesy of GENERAL MOTORS CORP.
  8. Install the tilt lever. Refer to Tilt Lever Replacement - On Vehicle .
  9. Install the steering wheel. Refer to Steering Wheel Replacement .
  10. Enable the SIR system. Refer to DISABLING SYSTEM .

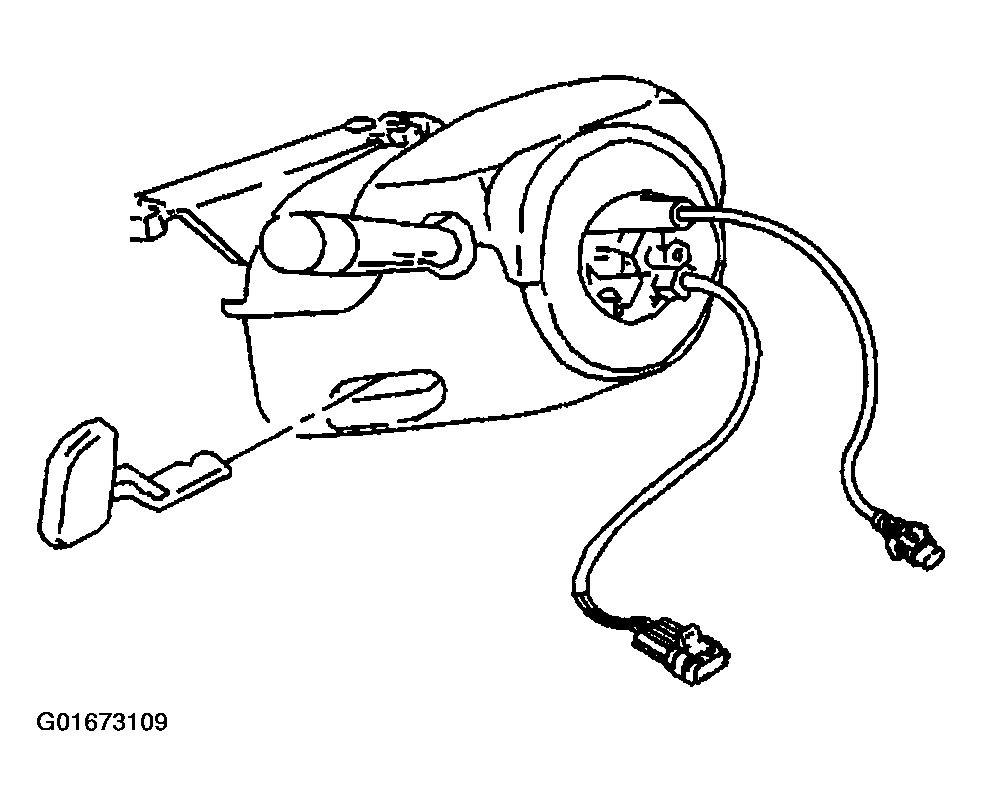

    Fig 4: Installing Tilt Lever
    G01673109Courtesy of GENERAL MOTORS CORP.
