Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE .
  2. Disable the SIR system. Refer to DISABLING SYSTEM .
  3. Remove the steering wheel. Refer to Steering Wheel Replacement .
  4. Remove the steering column trim covers. Refer to Steering Column Trim Covers Replacement - On Vehicle .
  5. Remove the wire harness straps from the wire harness assembly on the steering column.
  6. Disconnect the multifunction switch assembly connector from the SIR coil assembly connector.

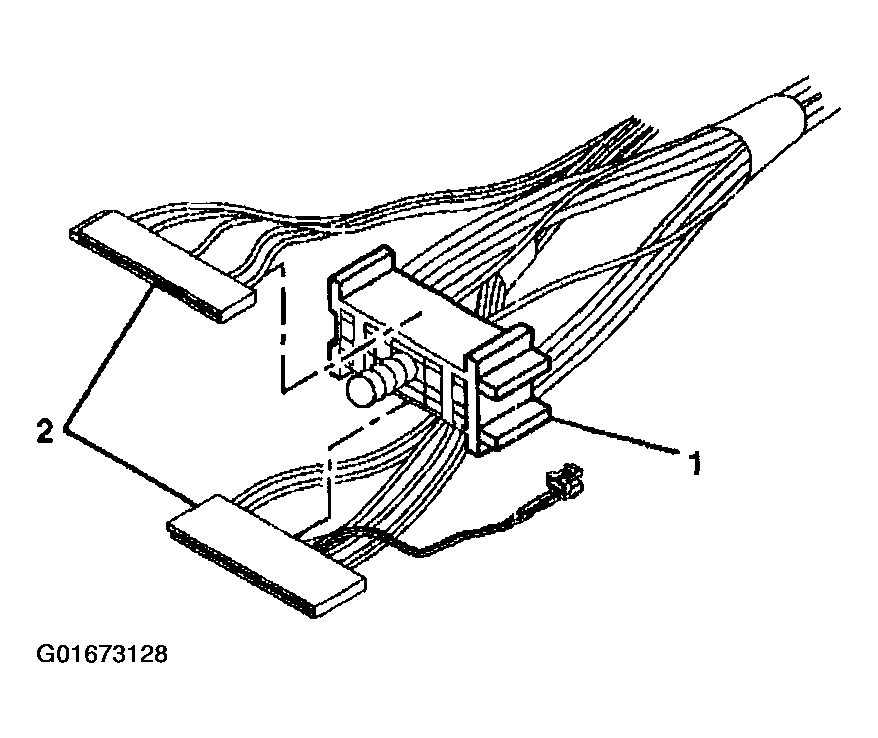

    Fig 1: Sliding Multifunction Switch Assembly Connectors Out Of Bulkhead Connector
    G01673128Courtesy of GENERAL MOTORS CORP.
  7. Slide the multifunction switch assembly connectors (2) out of the steering column bulkhead connector (1).
  8. Remove the screws (1) from the multifunction switch assembly (2).
  9. Remove the multifunction switch assembly (2) from the steering column.

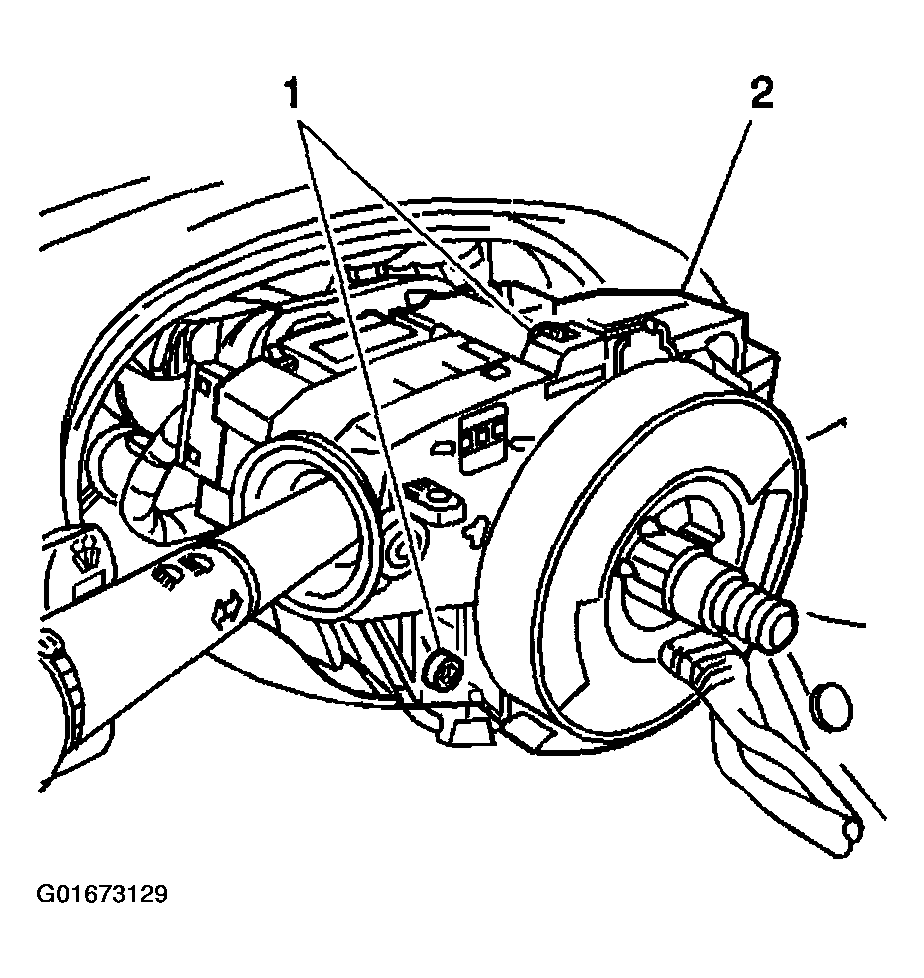

    Fig 2: Removing Multifunction Switch Assembly
    G01673129Courtesy of GENERAL MOTORS CORP.
