Inflatable Restraint Steering Wheel Module Coil - Assemble - Off Vehicle
WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

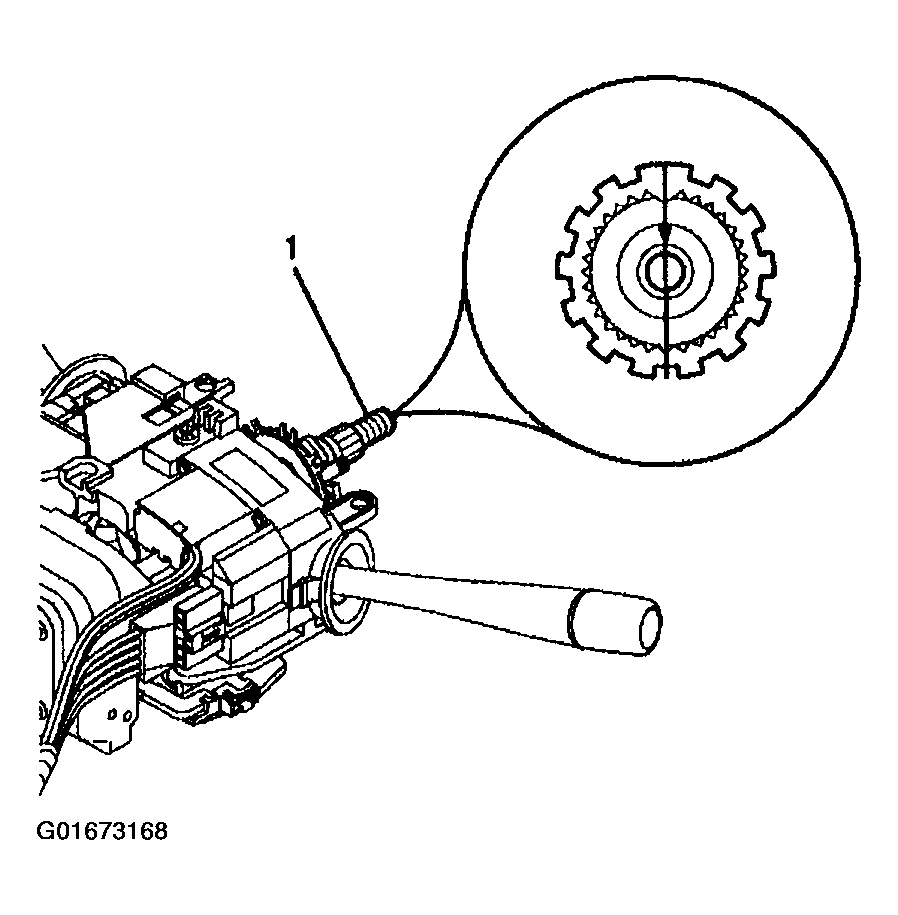

- Align the block tooth on the steering shaft assembly (1) to the 12 o'clock position.
- Place the ignition switch in the LOCK position.
IMPORTANT: The new inflatable restraint steering wheel module coil will be pre-centered. Do not remove the centering tab from the new inflatable restraint steering wheel module coil until the installation is complete.
- If installing the existing inflatable restraint steering wheel module coil, it must be centered first. Refer to Inflatable Restraint Coil Centering - Off Vehicle (Column Shift And Floor Shift) .

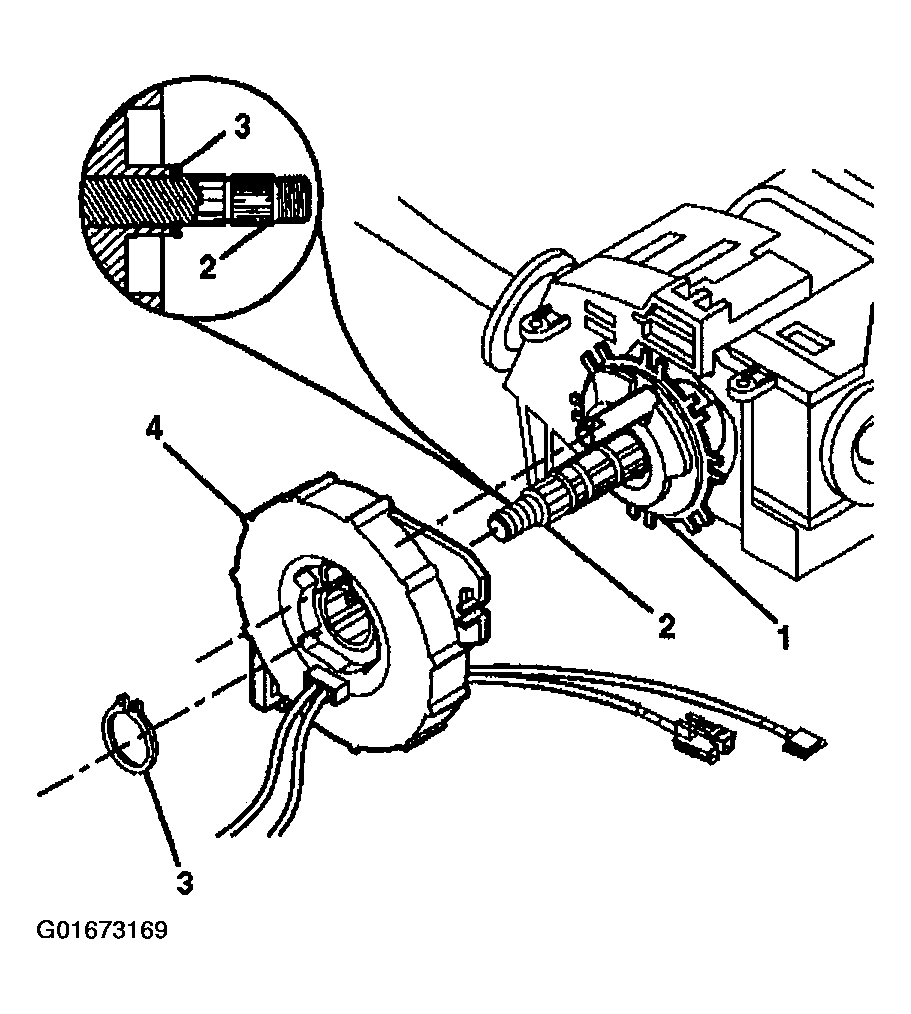

- Align the inflatable restraint steering wheel module coil (4) with the horn tower on the turn signal cancel cam assembly (1).
- Slide the new inflatable restraint steering wheel module coil (4) onto the steering shaft assembly (2).
- Firmly seat the retaining ring (3) into the groove on the steering shaft assembly (2).
- Remove and discard the centering tab from the new inflatable restraint steering wheel module coil (4).
CAUTION: Refer to SIR CAUTION .
- Reconnect the inflatable restraint steering wheel module coil connector to the turn signal switch assembly connector.
- Attach new wire harness straps to the wire harness assembly (1) and the steering column.
- Install the wire harness assembly (1) into the wire harness strap (2).
- Install the upper and lower trim covers. Refer to Steering Column Trim Covers - Assemble - Off Vehicle .
- Enable the inflatable restraint steering wheel module. Refer to ACTIVATING SYSTEM .
