Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the ignition and key alarm switch assembly (1) onto the lock module assembly.
    NOTE: Refer to FASTENER NOTICE .
  2. Screw the tapping screws (2) into the ignition and key alarm switch assembly (1).

    Tighten

    Tighten the tapping screws to 1.5 N.m (13 lb in).

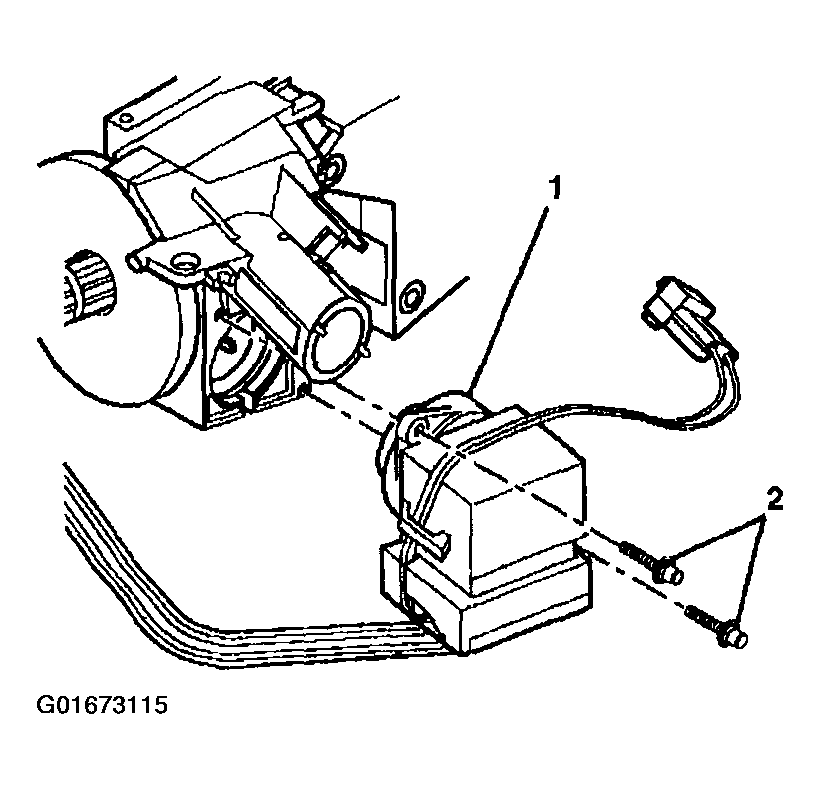

    Fig 1: Installing Ignition & Key Alarm Switch Assembly
    G01673115Courtesy of GENERAL MOTORS CORP.
  3. Install the key alarm connector (1) into the lock module assembly (2).
    1. 3.1. Push the key alarm connector (1) into the lock module assembly (2).
    2. 3.2. Rotate the key alarm connector (1) 90 degrees so that the key alarm connector (1) locks into place.

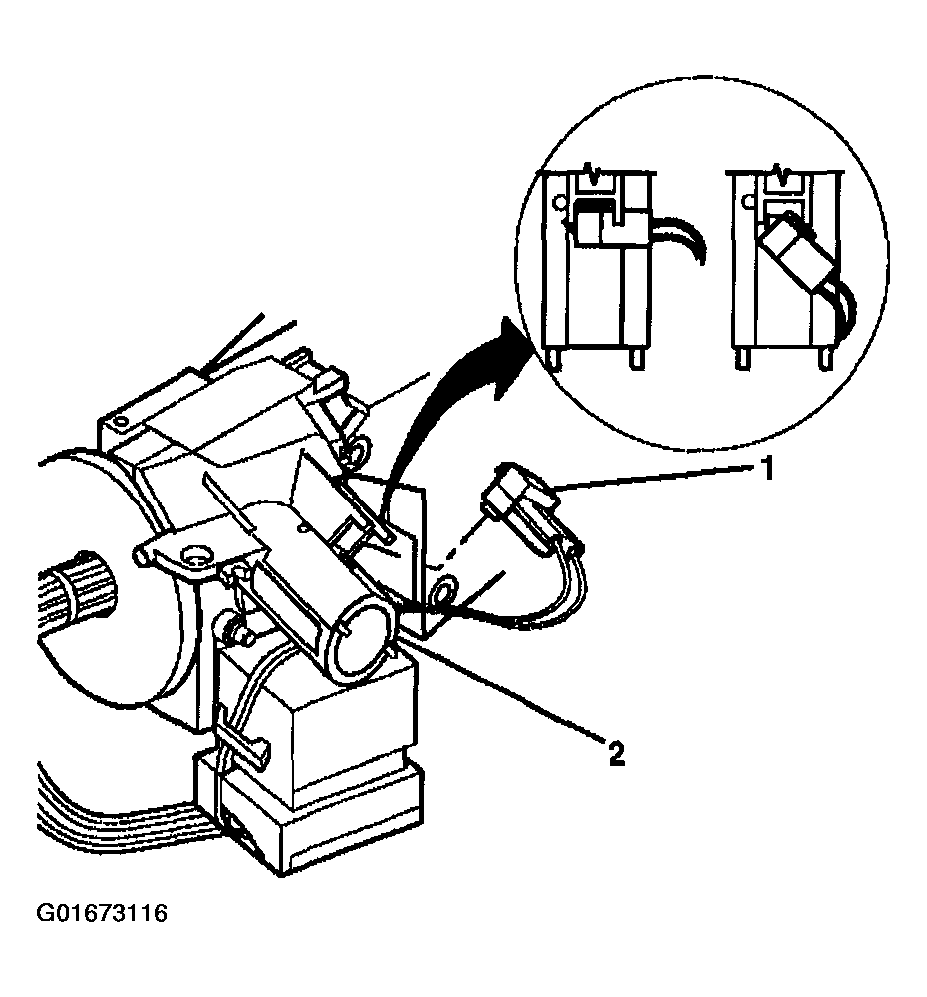

      Fig 2: Installing Key Alarm Connector
      G01673116Courtesy of GENERAL MOTORS CORP.
  4. If the vehicle is equipped with a theft deterrent module (2), install the theft deterrent module (2) into the lock module assembly.

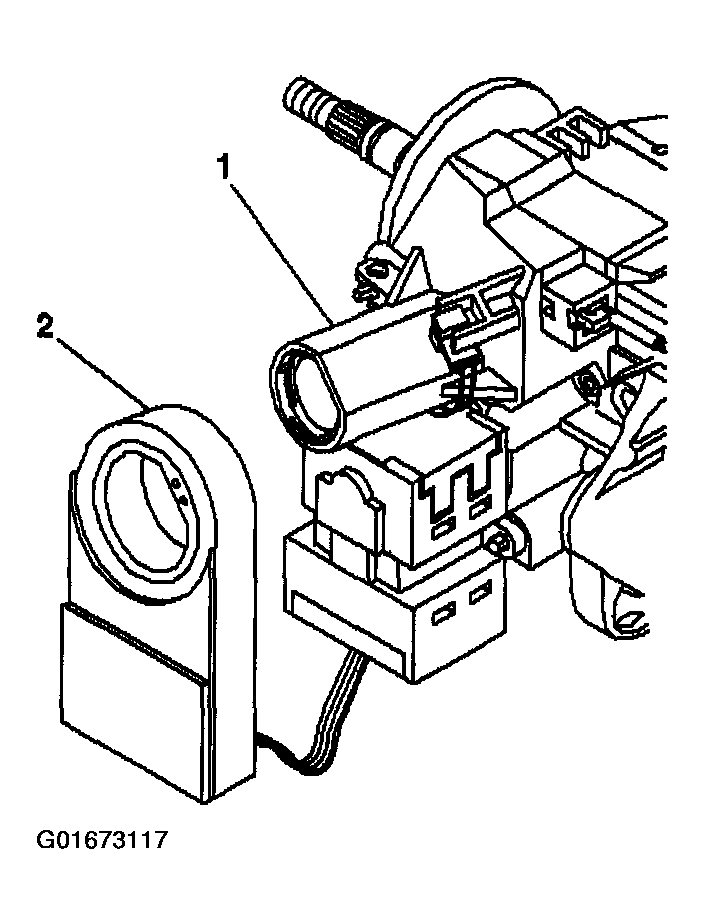

    Fig 3: Installing Theft Deterrent Module
    G01673117Courtesy of GENERAL MOTORS CORP.
  5. Install the ignition lock cylinder. Refer to Ignition Lock Cylinder Replacement - On Vehicle .
  6. Slide the (2) connectors of the turn signal and multifunction switch assembly into the bulkhead connector (1).

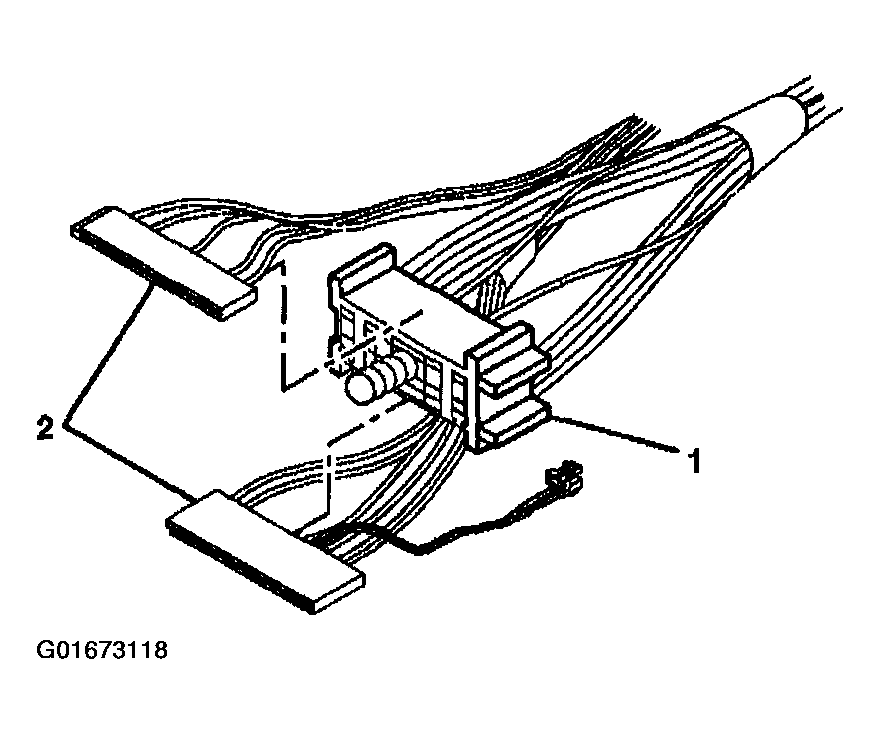

    Fig 4: Sliding Connectors Into Bulkhead Connector
    G01673118Courtesy of GENERAL MOTORS CORP.
  7. Attach the wire harness straps (1) to the wire harness assembly (2) and the steering column.
  8. Install the upper and lower steering column trim covers. Refer to Steering Column Trim Covers Replacement - On Vehicle .
  9. Install the steering wheel. Refer to Steering Wheel Replacement .
  10. Install the inflatable restraint steering wheel module. Refer to STEERING WHEEL .
  11. Enable the SIR system. Refer to ACTIVATING SYSTEM .
  12. Connect the negative battery cable to the battery. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE .

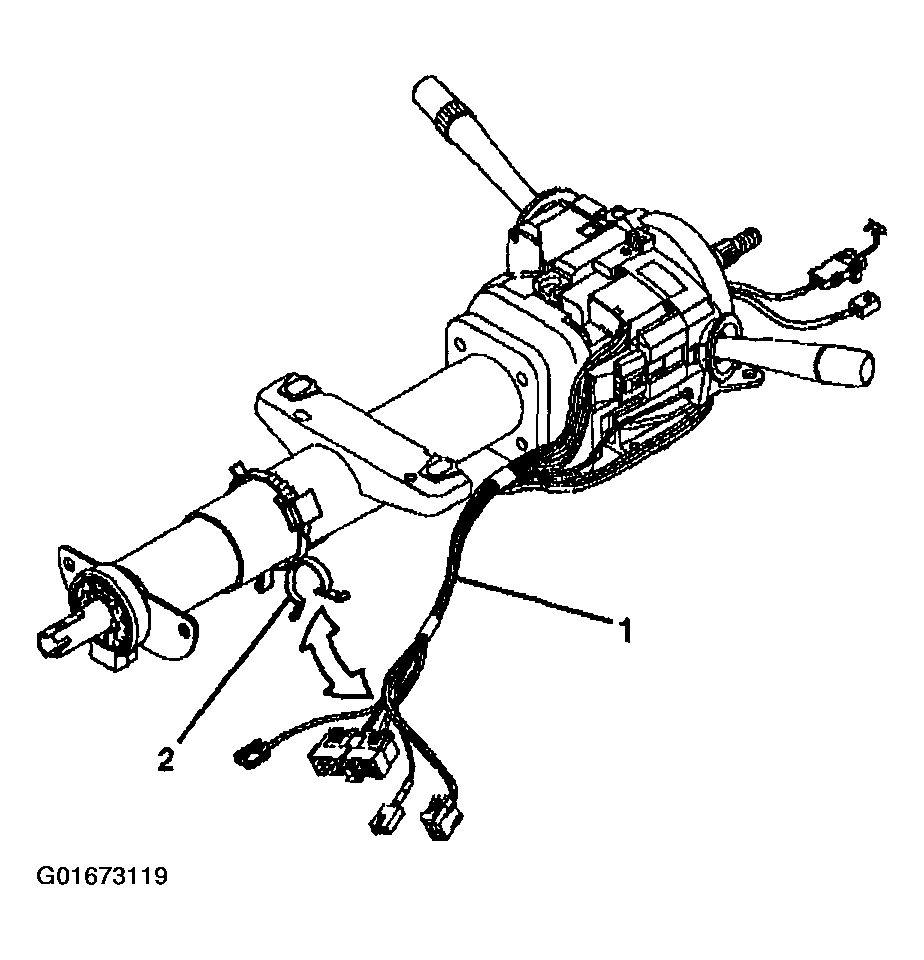

    Fig 5: Attaching Wire Harness Straps
    G01673119Courtesy of GENERAL MOTORS CORP.
