Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Insert the key into the steering column lock cylinder set (1).
  2. Line up the locking tab (2) and the positioning tab (3) of the steering column lock cylinder set with the locking tab slot (5) and the positioning tab slot (4) in the lock module assembly (6).
  3. Push the steering column lock cylinder set (1) into the lock module assembly (6).
  4. Rotate the steering column lock cylinder set (1) in the lock module assembly (6) into all positions.
  5. Connect the ignition lock cylinder electrical connector to the wiring harness on the column.
  6. Install the upper and lower steering column trim covers. Refer to Steering Column Trim Covers Replacement - On Vehicle .
  7. Connect the negative battery cable to the battery. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE .

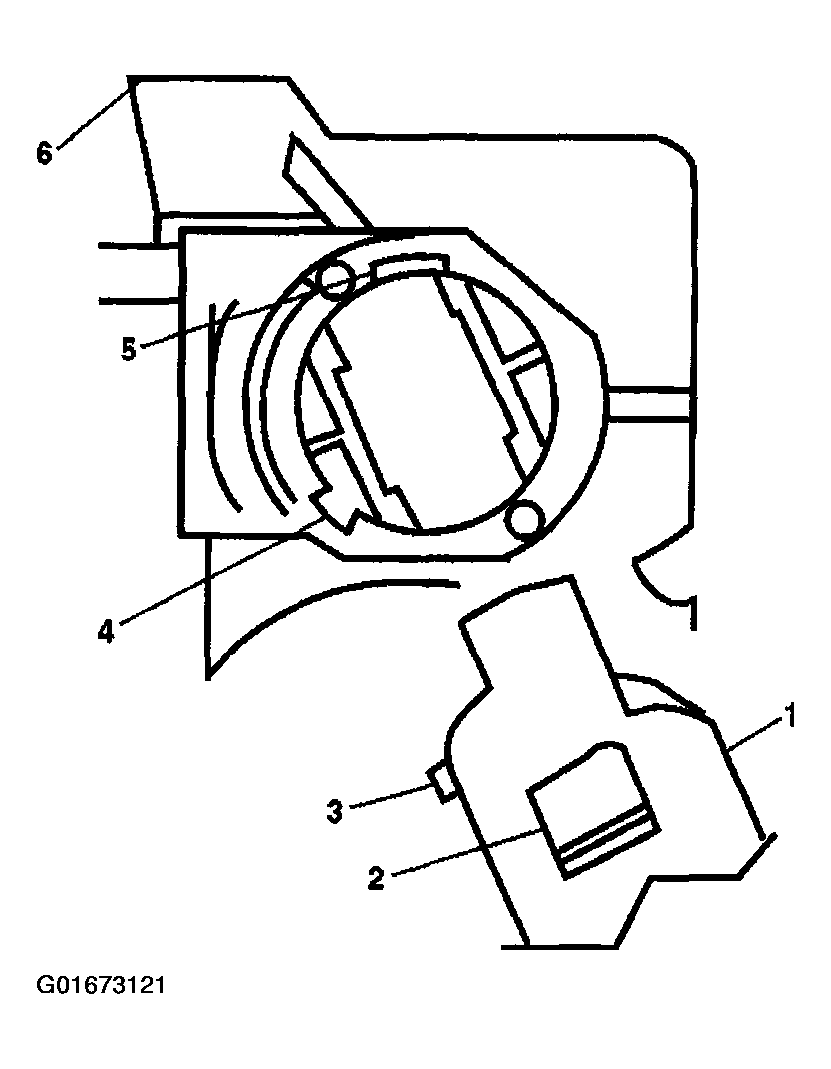

    Fig 1: Installing Ignition Lock Cylinder
    G01673121Courtesy of GENERAL MOTORS CORP.
