Electronic Column Lock Module - Assemble - Off Vehicle

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the lock bolt spring (3) into the steering column tilt head assembly (5).
  2. Position the cutout in the lock bolt assembly (4) at the 6 o'clock position.
  3. Install the lock bolt assembly (4) into the steering column tilt head assembly (5).
  4. Push the lock bolt assembly (4) into the steering column tilt head assembly (5) until the lock bolt assembly (4) is flush with the steering column tilt head assembly (5).
  5. Align the electronic lock module assembly (2) with the steering column tilt head assembly (5).
    NOTE: Refer to FASTENER NOTICE .
  6. Screw the 3 pan head tapping screws (1) into the electronic lock module assembly (2).

    Tighten

    Tighten the screws to 7 N.m (62 lb in).

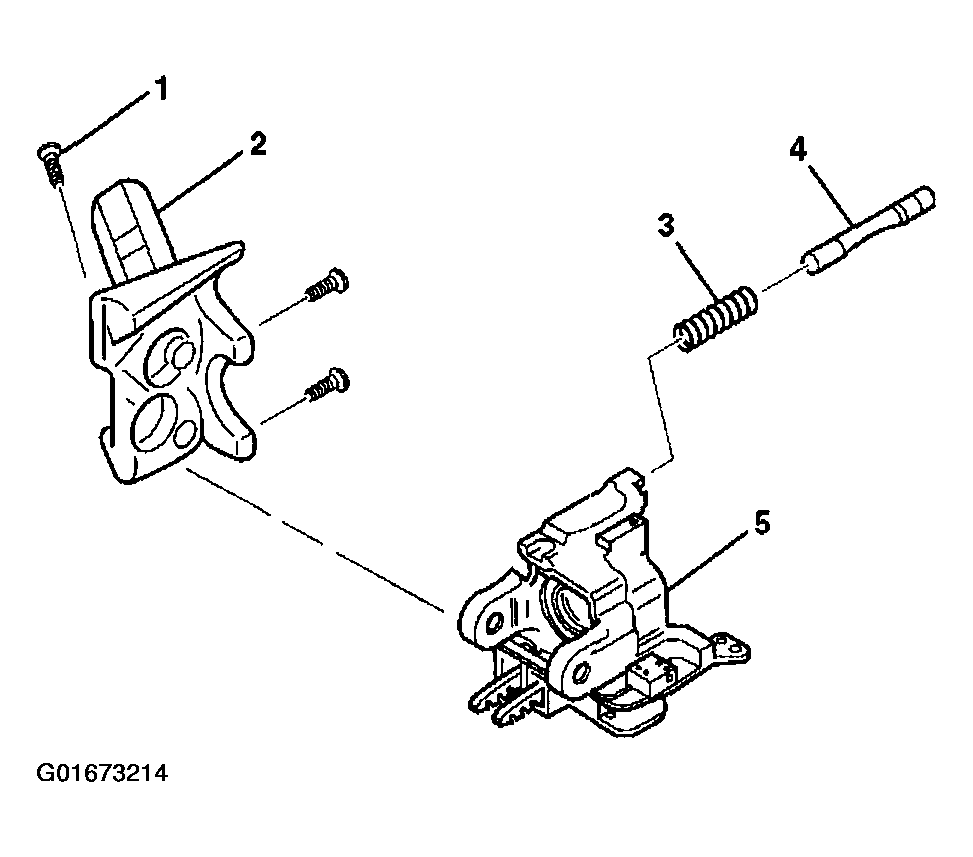

    Fig 1: Exploded View Of Electronic Column Lock Module Assembly
    G01673214Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to SIR INFLATOR MODULE COIL CAUTION .
  7. Install the ignition and key alarm switch assembly (1) onto the electronic lock module assembly.
  8. Screw the 2 tapping screws (2) into the ignition and key alarm switch assembly (1).

    Tighten

    Tighten the screws to 1.5 N.m (13 lb in).

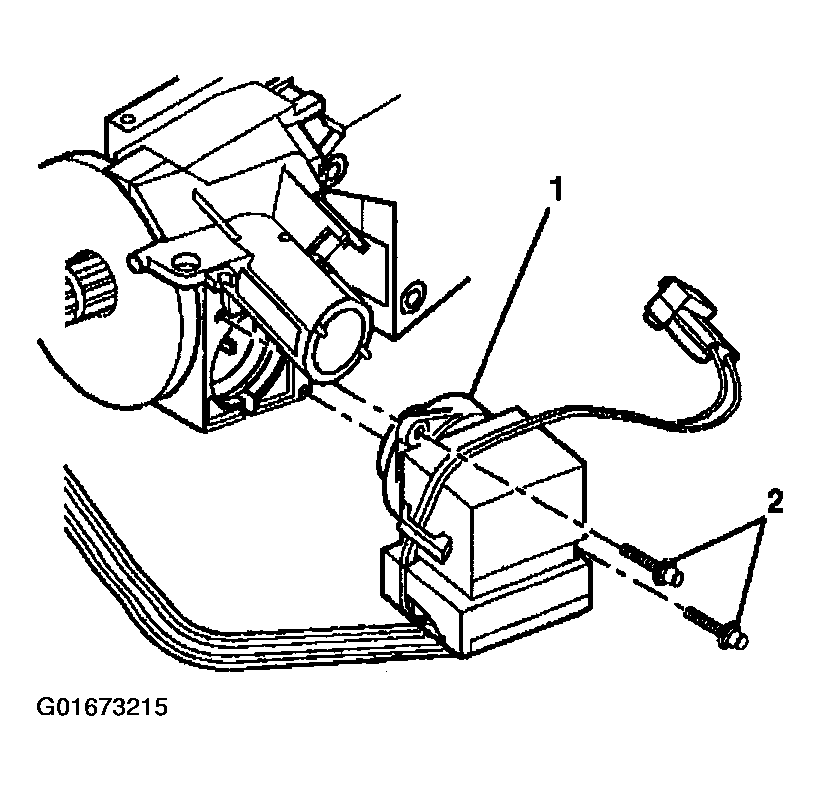

    Fig 2: Installing Ignition & Key Alarm Switch Assembly
    G01673215Courtesy of GENERAL MOTORS CORP.
  9. Install the electric park lock (2) onto the electronic lock module assembly (1).

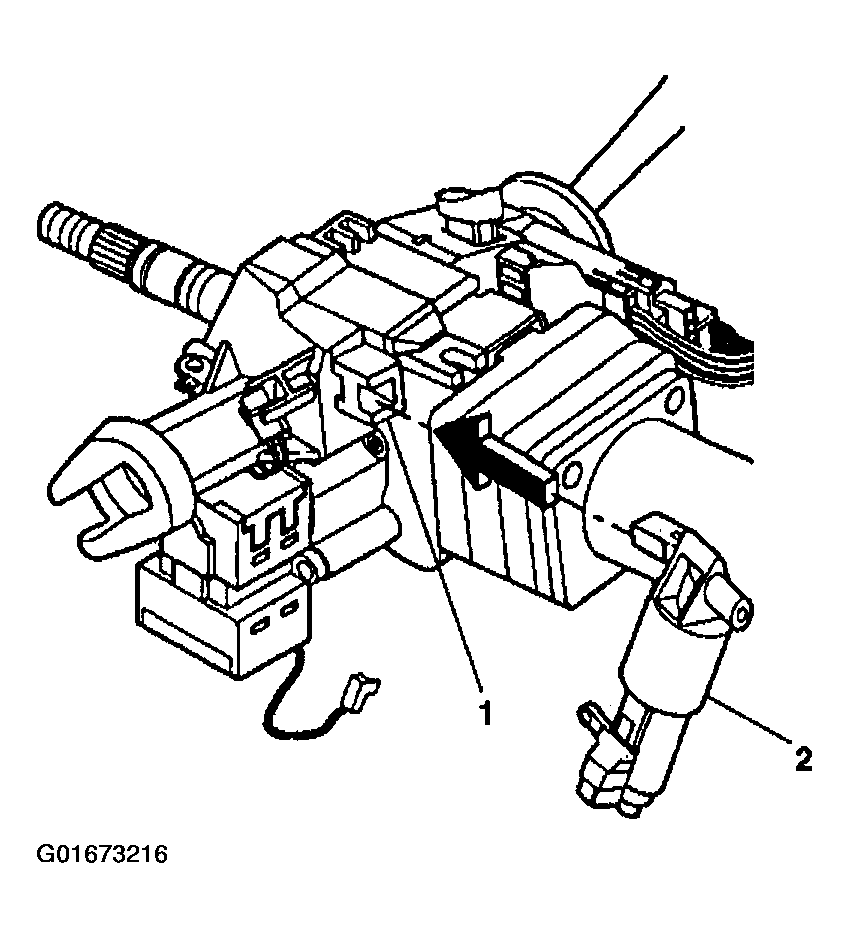

    Fig 3: Installing Electric Park Lock
    G01673216Courtesy of GENERAL MOTORS CORP.
  10. Screw the TORX® head screw (1) into the electric park lock (3).

    Tighten

    Tighten the screw to 1.5 N.m (13 lb in).

  11. Reconnect the connector (2) to the electric park lock (3).

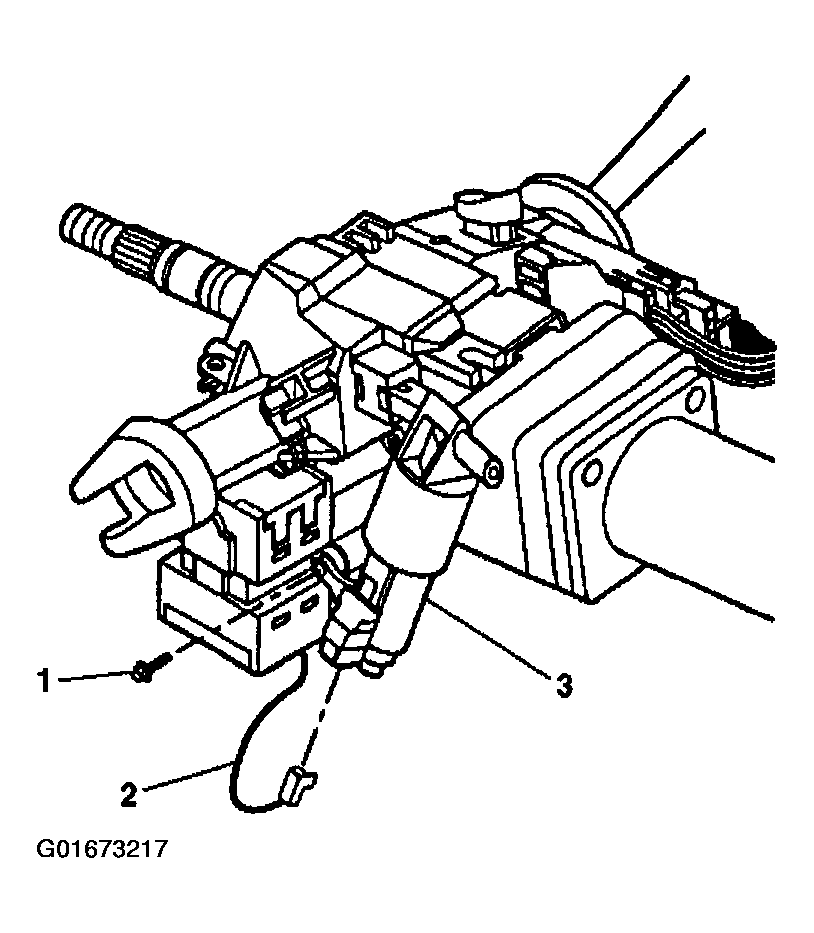

    Fig 4: Connecting Electric Park Lock Connector
    G01673217Courtesy of GENERAL MOTORS CORP.
  12. Install the key alarm connector (1) onto the electronic lock module assembly (2).
    1. 12.1. Push the key alarm connector (1) into the electronic lock module assembly (2).
    2. 12.2. Rotate the key alarm connector 90 degrees so that the key alarm connector (1) locks into place.
    3. Install the steering column lock cylinder set.

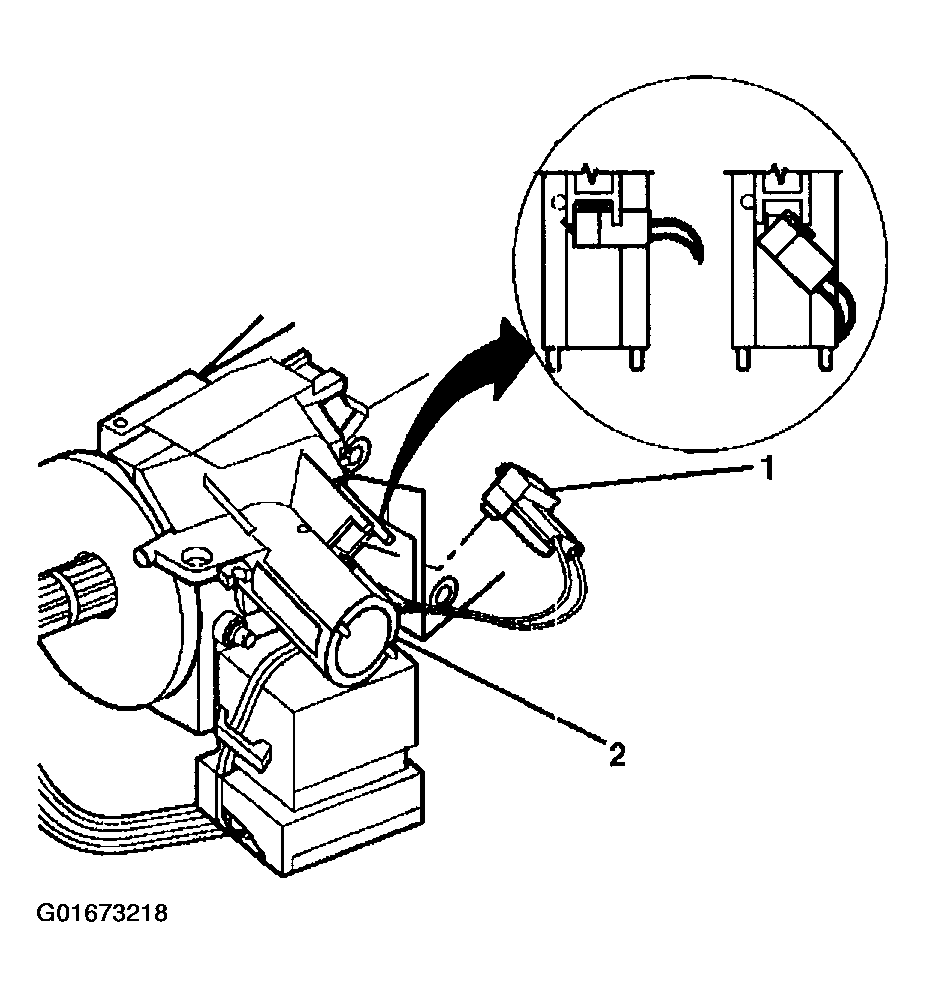

      Fig 5: Installing Key Alarm Connector
      G01673218Courtesy of GENERAL MOTORS CORP.
  13. Slide the PASSKEY® III (2) onto the electronic lock module assembly (1).
  14. Install the steering column tilt head housing. Refer to Steering Column Tilt Head Housing - Assemble - Off Vehicle .
  15. Install the steering column lock cylinder set. Refer to Ignition Lock Cylinder Replacement - On Vehicle .
  16. Enable the inflatable restraint steering wheel module. Refer to ACTIVATING SYSTEM .

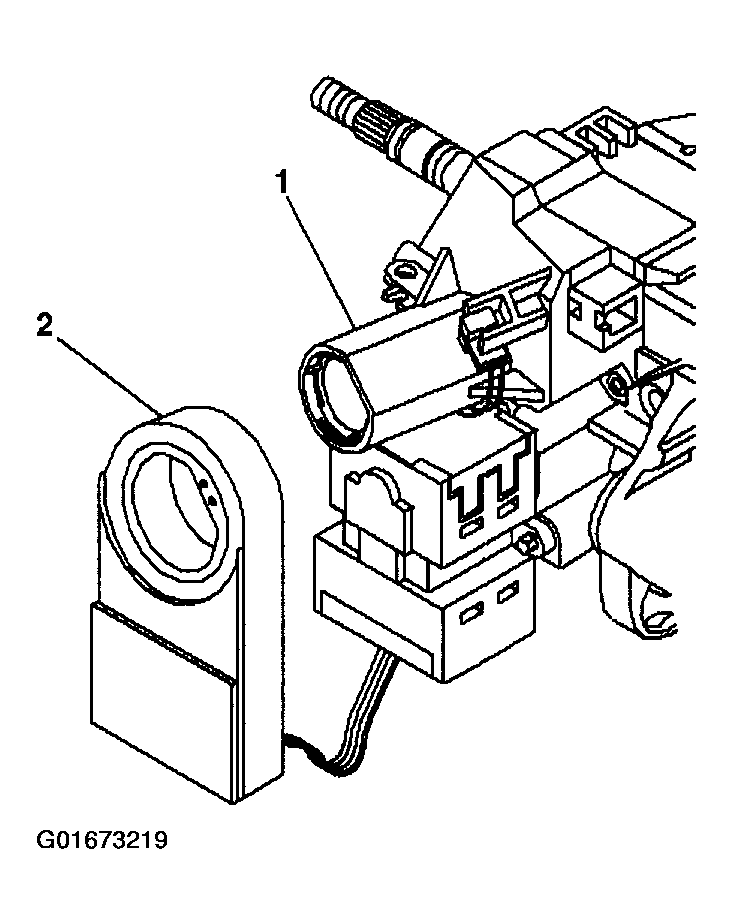

    Fig 6: Installing PASSKEY® III
    G01673219Courtesy of GENERAL MOTORS CORP.
