WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

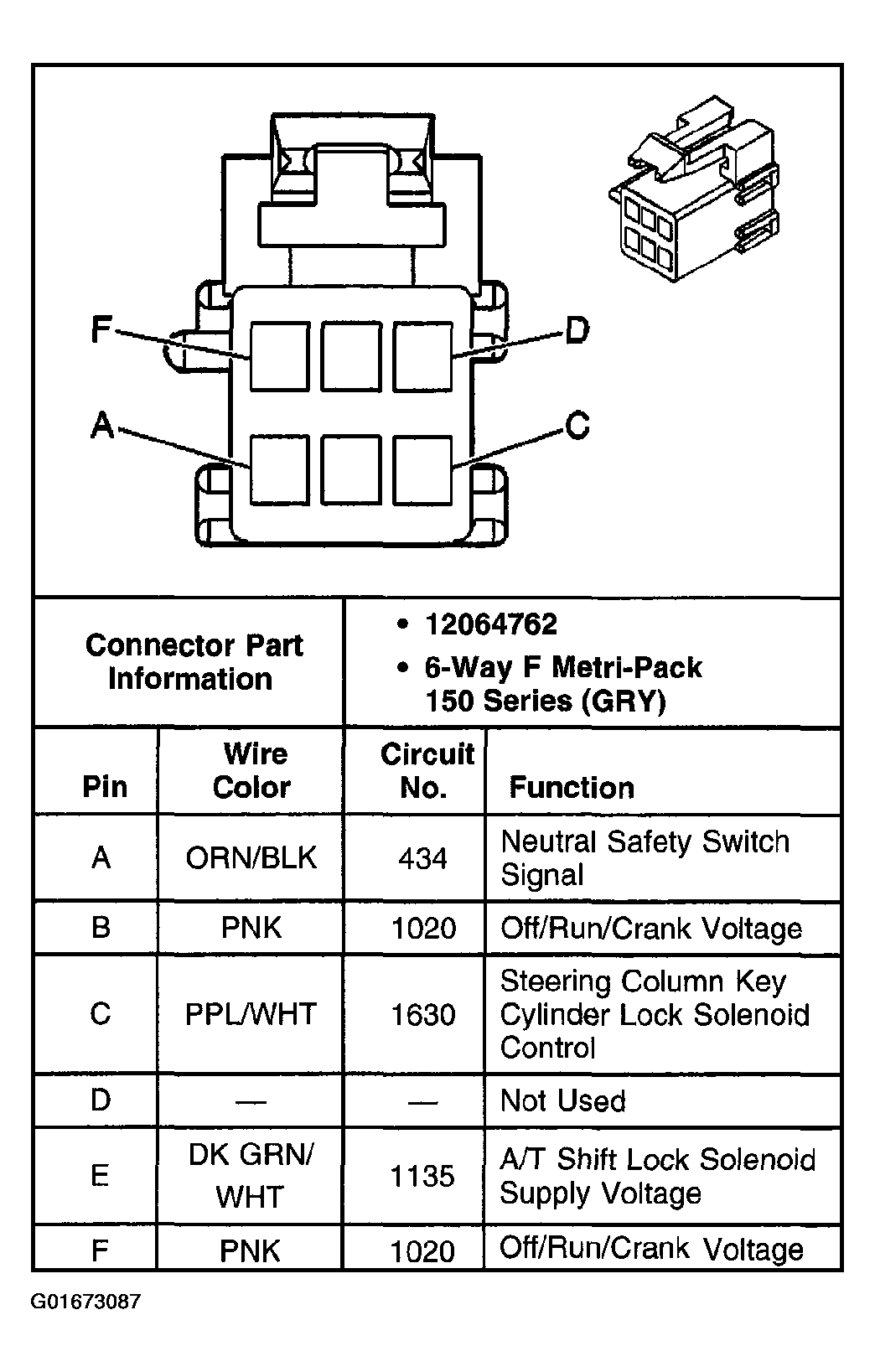

Fig 1: Automatic Transmission Shift Lock Actuator
Courtesy of GENERAL MOTORS CORP.

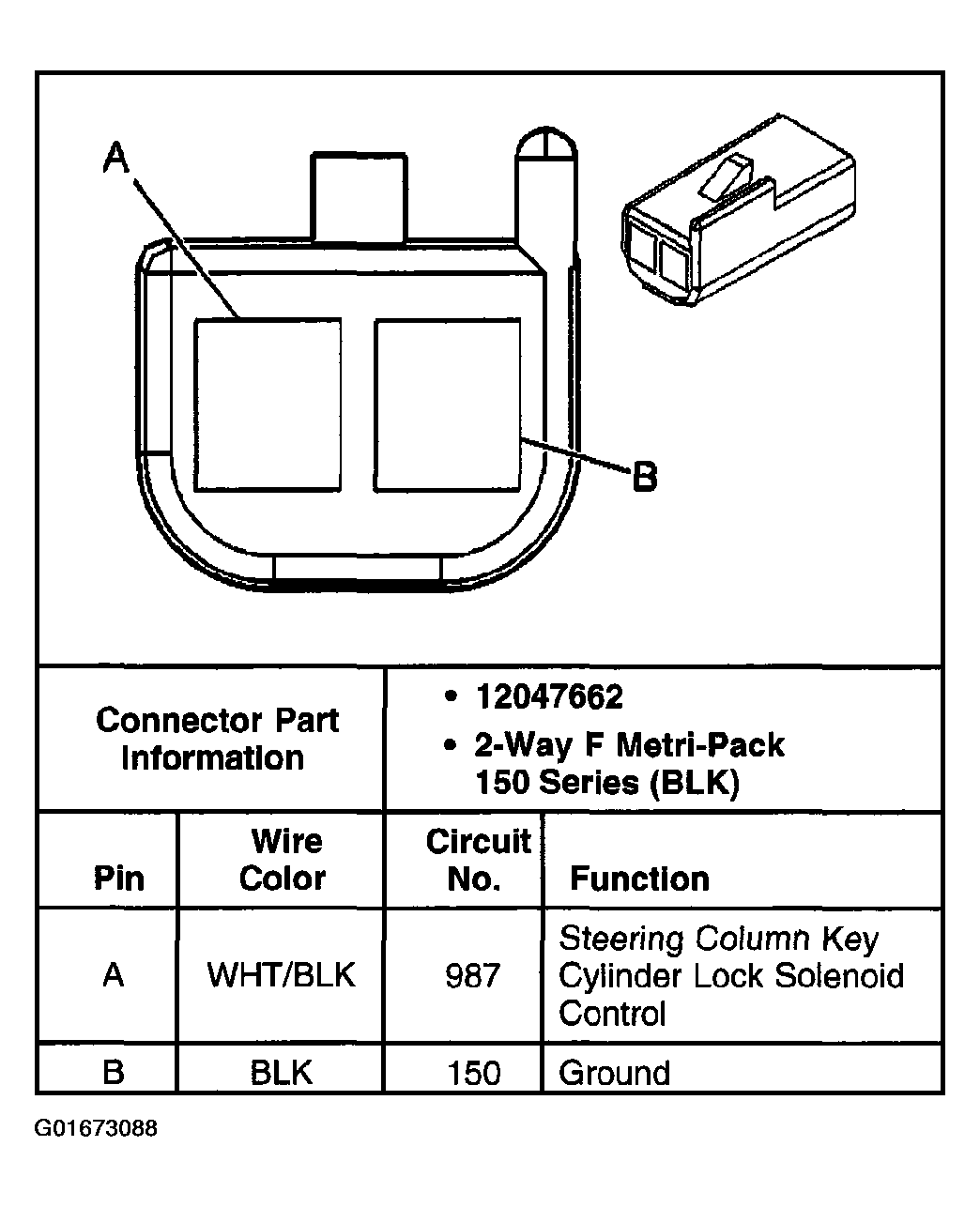

Fig 2: Steering Column Electric Park Lock (Ignition Key Solenoid)
