Engine Cooling Schematics (Fans)

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.

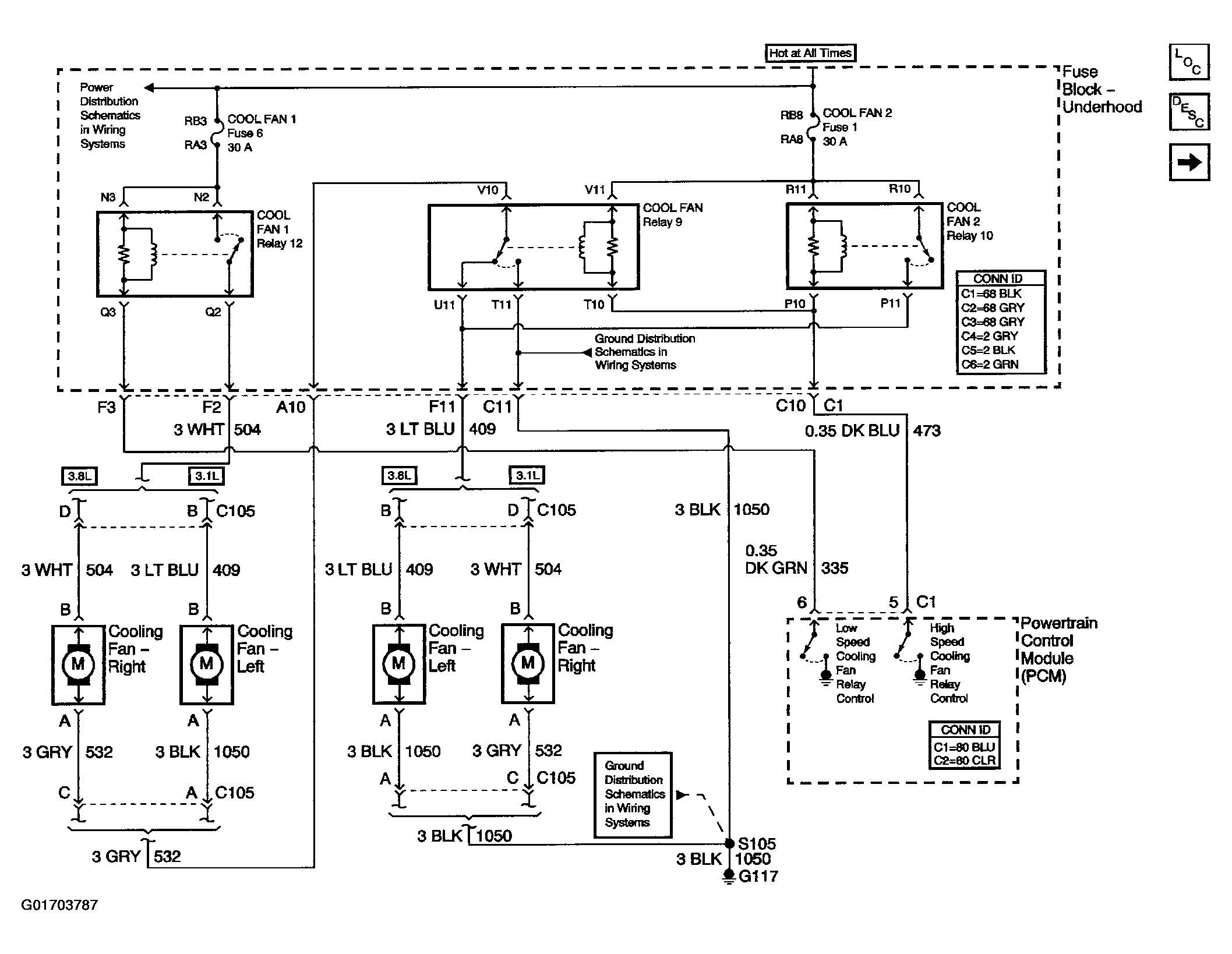

Fig 1: Engine Cooling Schematic (Fans)
G01703787Courtesy of GENERAL MOTORS CORP.

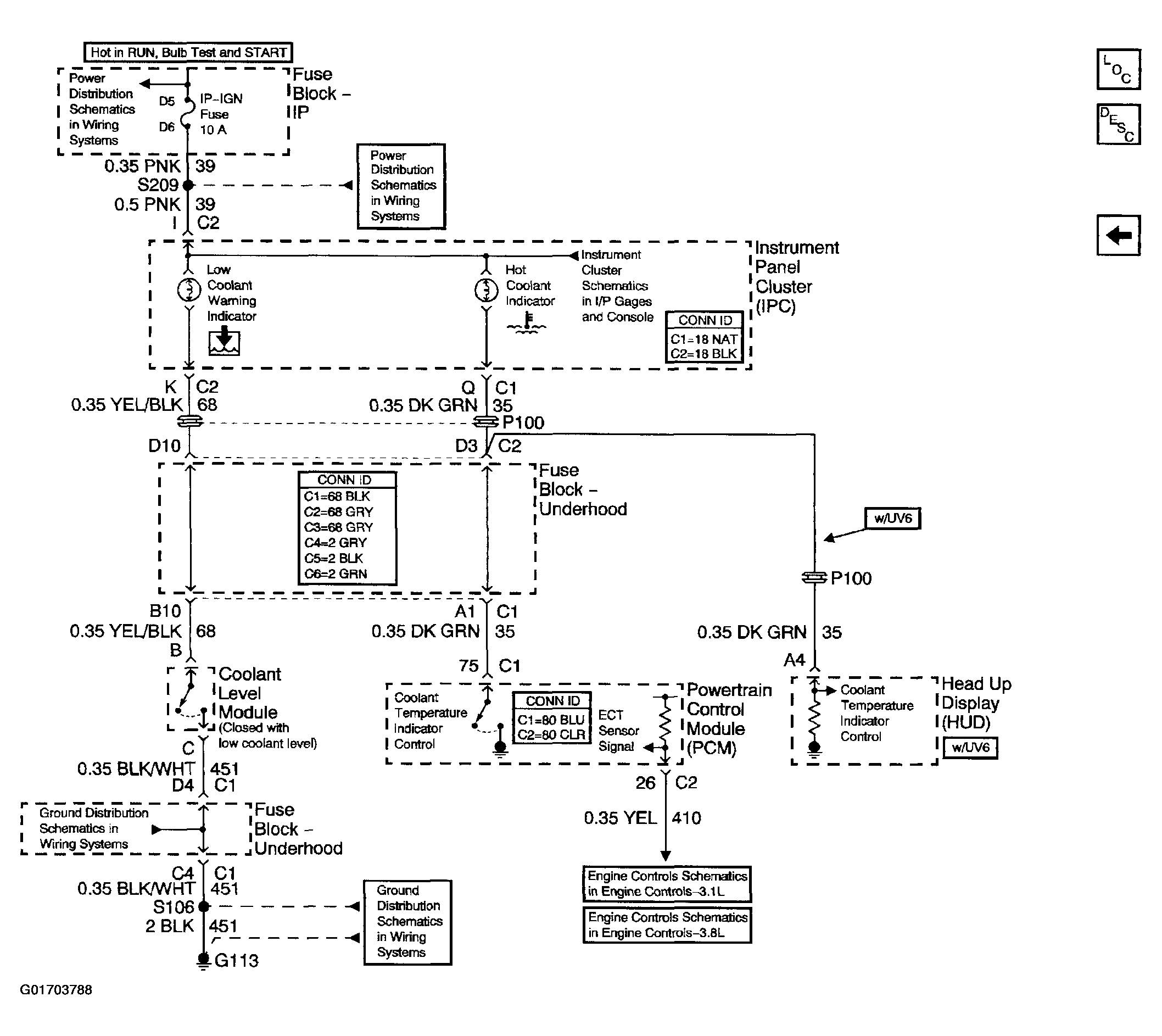

Fig 2: Engine Cooling Schematic (Indicators)
G01703788Courtesy of GENERAL MOTORS CORP.
