Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the throttle body inlet hose (3) and the hose clamp to the throttle body.
  2. Install the throttle body inlet hose (3) and the hose clamp to the coolant pipe.
  3. Install the throttle body air inlet duct. Refer to AIR CLEANER INTAKE DUCT for 3.1L.
  4. Fill the cooling system. Refer to Draining and Filling Cooling System .
  5. Inspect for leaks.

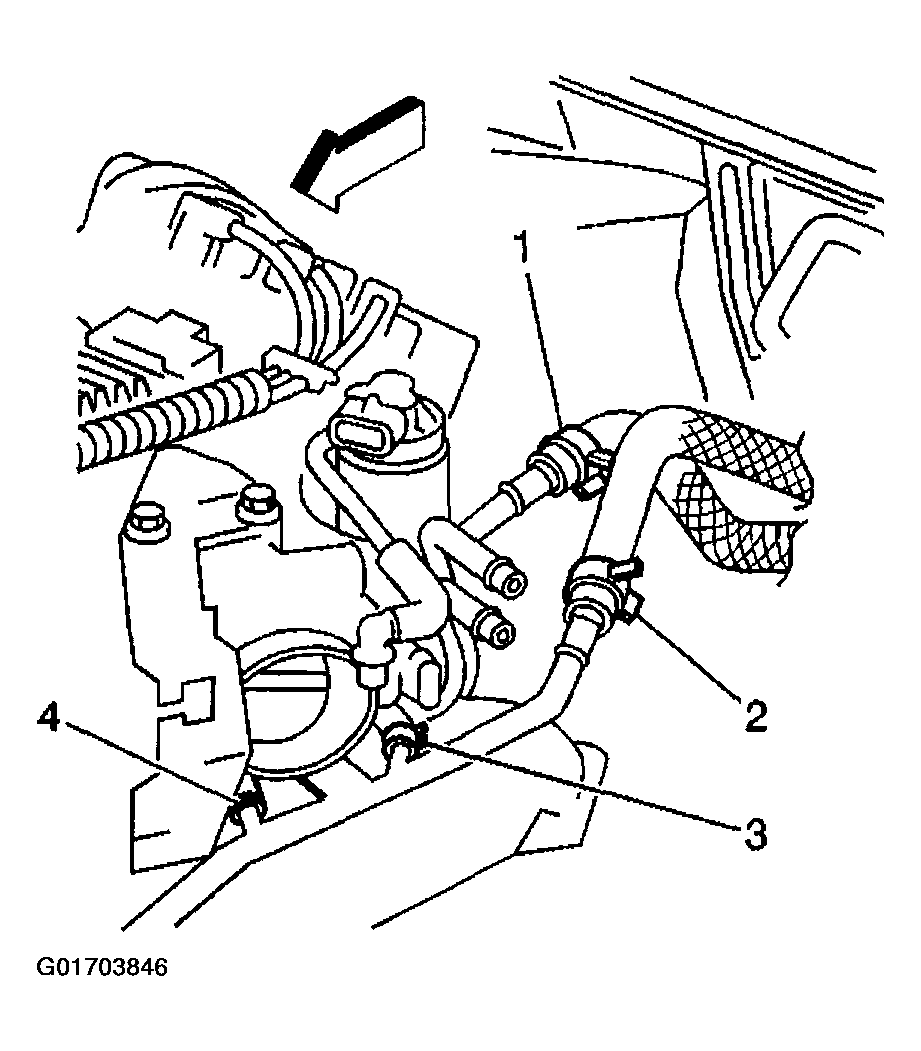

    Fig 1: Throttle Body Inlet Hoses & Clamps
    G01703846Courtesy of GENERAL MOTORS CORP.
