Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Partially drain the cooling system. Refer to Draining and Filling Cooling System .
  2. Remove the left diagonal brace.
  3. Use the J 38185  in order to reposition the hose clamp from the water outlet housing.
  4. Remove the radiator inlet hose from the water outlet housing.

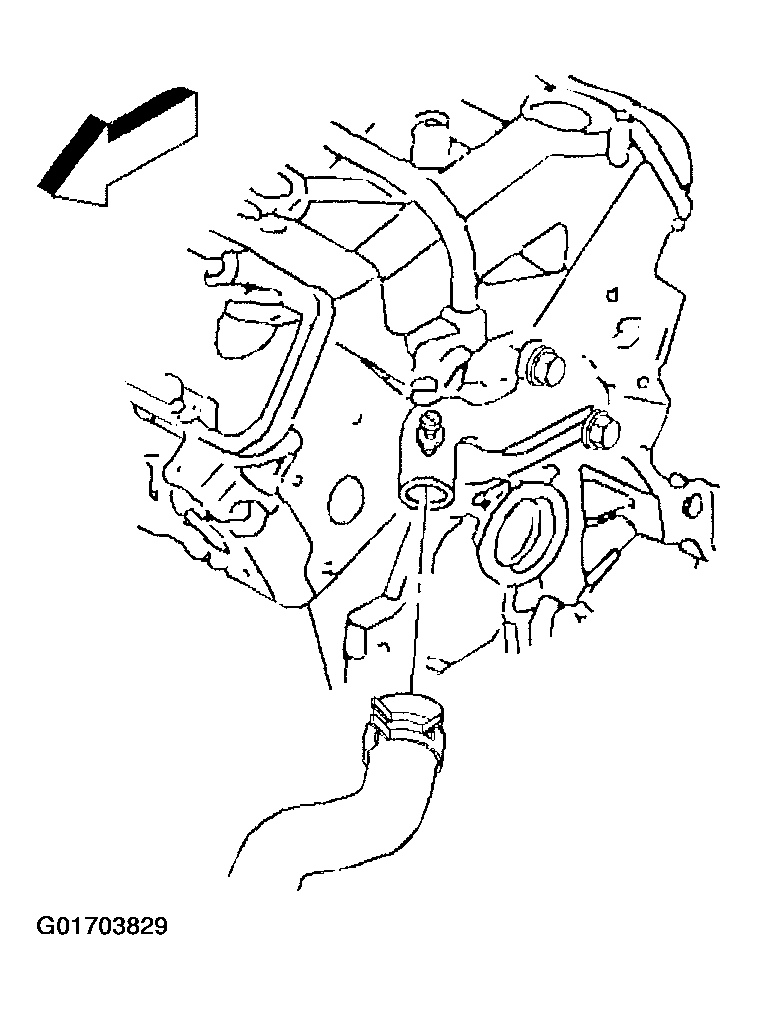

    Fig 1: Radiator Inlet Hose & Water Outlet Housing
    G01703829Courtesy of GENERAL MOTORS CORP.
  5. Use the J 38185  in order to reposition the hose clamp from the radiator.
  6. Remove the radiator inlet hose from the radiator and the vehicle.
    Fig 2: Radiator Inlet Hose
    G01703830Courtesy of GENERAL MOTORS CORP.
