Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the marks on the hose and install the radiator inlet hose into position.
  2. Install the radiator inlet hose to the radiator.
  3. Use the J 38185  in order to reposition and install the hose clamp to the radiator.
    Fig 1: Radiator Inlet Hose
    G01703831Courtesy of GENERAL MOTORS CORP.
  4. Install the radiator inlet hose to the water outlet housing.
  5. Use the J 38185  in order to reposition and install the hose clamp to the water outlet housing.
  6. Install the left diagonal brace.
  7. Fill the cooling system. Refer to Draining and Filling Cooling System .

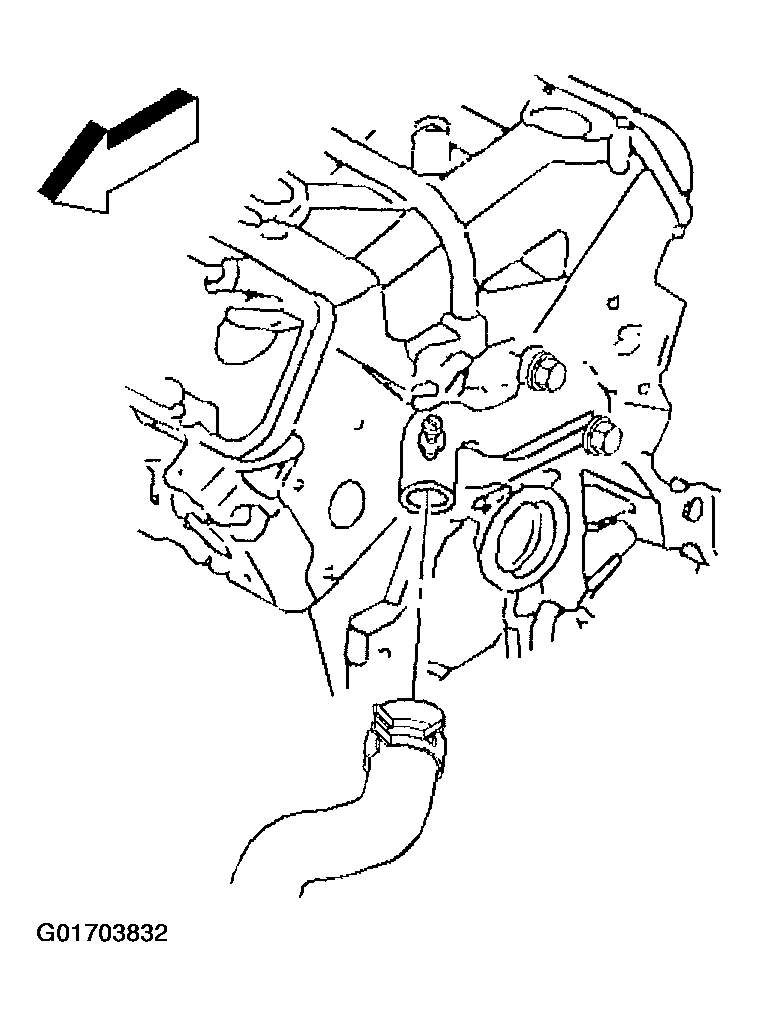

    Fig 2: Radiator Inlet Hose & Water Outlet Housing
    G01703832Courtesy of GENERAL MOTORS CORP.
