Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the upper radiator air baffle (2). Refer to Radiator Air Baffle and Deflector Replacement - Upper .
  2. Remove the retainers from the right and left side air baffle (1).
  3. Remove the right and left side air baffle (1).

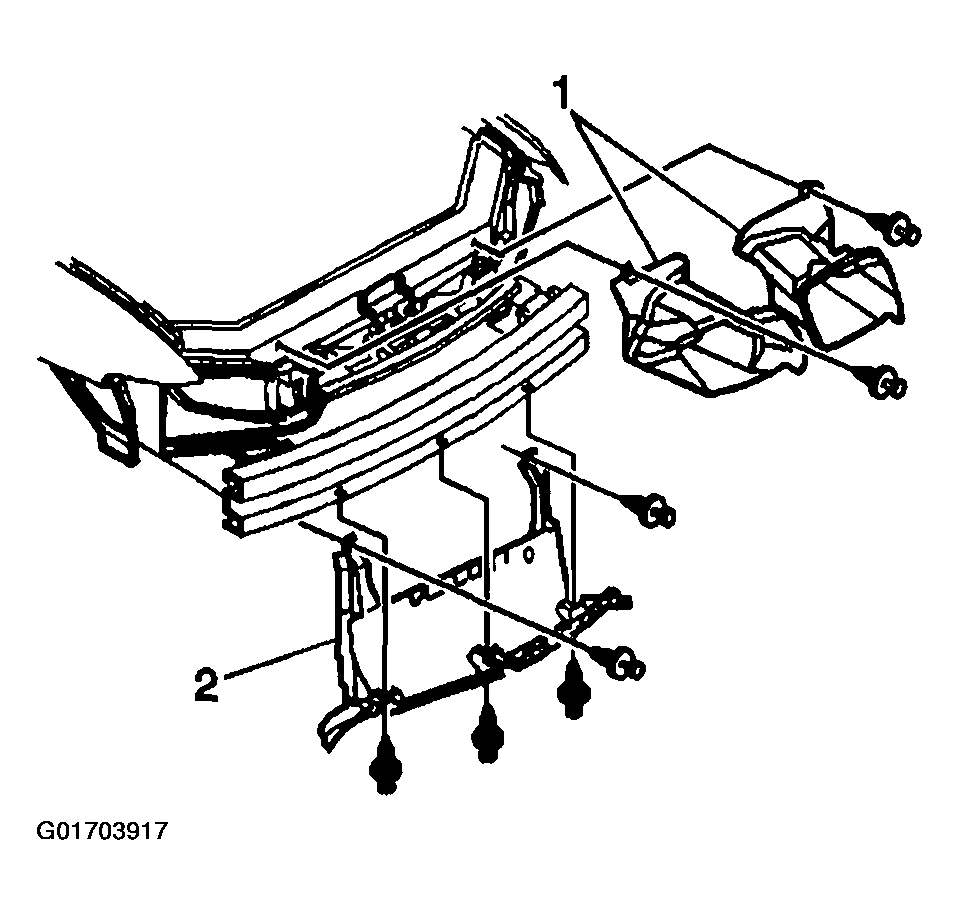

    Fig 1: Upper Radiator Air Baffle, Right & Left Side Air Baffles
    G01703917Courtesy of GENERAL MOTORS CORP.
