Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the right and left side air baffle (1).
  2. Install the retainers for the right and left side air baffle (1).
  3. Install the upper radiator air baffle (2). Refer to Radiator Air Baffle and Deflector Replacement - Upper .

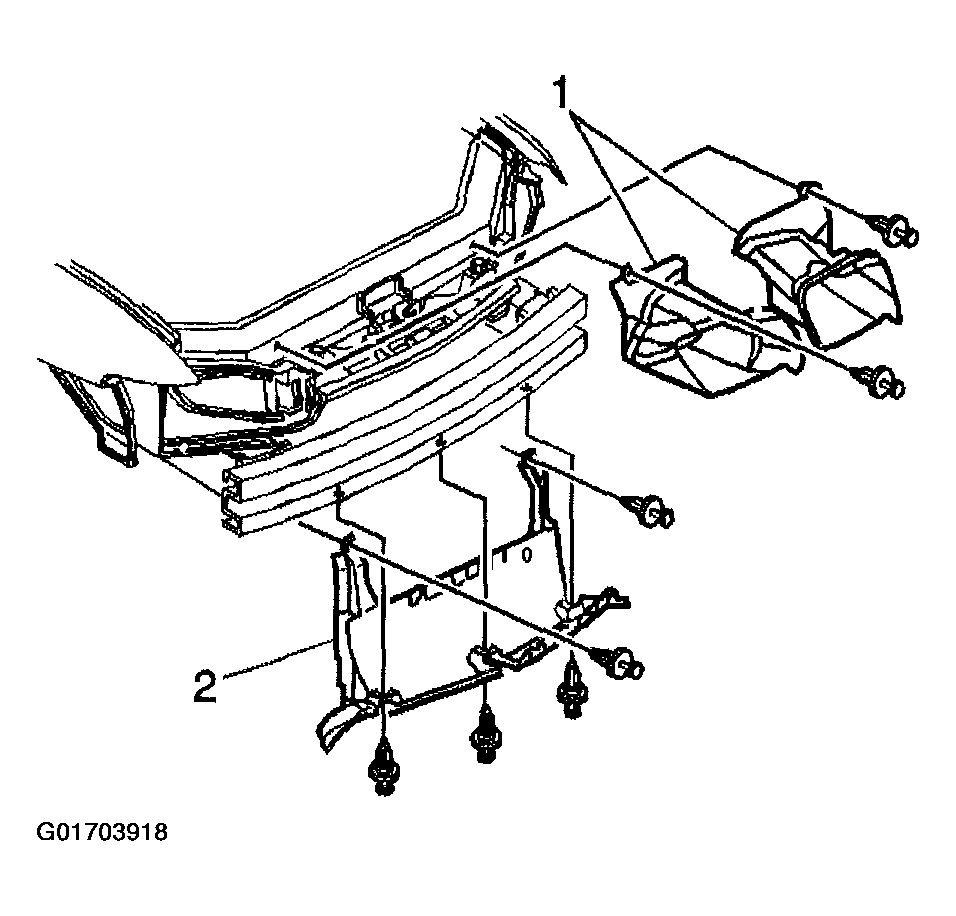

    Fig 1: Upper Radiator Air Baffle, Right & Left Side Air Baffles
    G01703918Courtesy of GENERAL MOTORS CORP.
